IMXFractional Sloop2002-2004

IMX 45 Parts

Lines here are cut for this rig

Rig
Fractional Sloop
I
59.5 ft
J
20.42 ft
P
62.83 ft
E
24.67 ft
Full specifications
Different version? Compare 3 related rigs
ModelIJPE
IMX 45 this page59.520.4262.8324.67
IMX 45 SD59.0616.5355.9419.68
IMX 4052.5214.7649.8818.08
IMX 3850.8814.4343.816.07

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

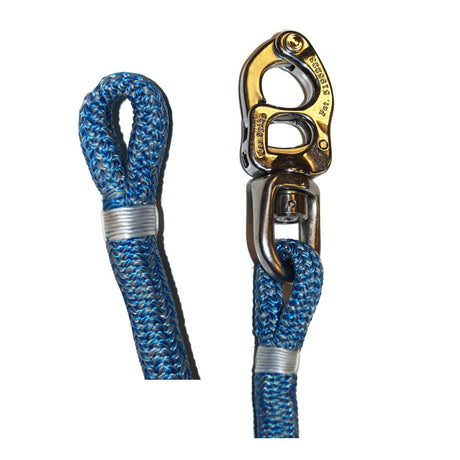

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    147 ft (44.8 m)
    Hardware
    Shackle
    List Price:  $475.12 USD
    $352.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    147 ft (44.8 m)
    Hardware
    Shackle
    List Price:  $1,109.22 USD
    $823.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    147 ft (44.8 m)
    Hardware
    Shackle
    List Price:  $1,217.59 USD
    $903.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    147 ft (44.8 m)
    Hardware
    Shackle
    List Price:  $1,657.21 USD
    $1,230.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $649.17 USD
    $481.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $898.24 USD
    $666.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $1,298.33 USD
    $963.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $1,702.63 USD
    $1,264.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    144 ft (43.9 m)
    Hardware
    Shackle
    List Price:  $667.98 USD
    $495.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    144 ft (43.9 m)
    Hardware
    Shackle
    List Price:  $943.56 USD
    $700.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    144 ft (43.9 m)
    Hardware
    Shackle
    List Price:  $1,347.12 USD
    $1,000.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    144 ft (43.9 m)
    Hardware
    Shackle
    List Price:  $1,777.91 USD
    $1,319.00 USD

    Available to order · 10 options

  • View moreAll IMX 45 halyards & sheets

Made up to the lengths computed from the IMX 45's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 16

  • Cruising

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (207 m)
    Hardware
    None listed
    List Price:  $171.05 USD
    $126.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Soft shackle
    List Price:  $391.16 USD
    $279.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Soft shackle
    List Price:  $402.93 USD
    $299.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Soft shackle
    List Price:  $625.40 USD
    $452.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $545.25 USD
    $404.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $1,014.42 USD
    $753.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (277 m)
    Hardware
    None listed
    List Price:  $506.68 USD
    $376.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (277 m)
    Hardware
    None listed
    List Price:  $781.53 USD
    $580.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $545.25 USD
    $404.00 USD

    Available to order · 5 options

  • Cruising

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Shackle
    List Price:  $545.03 USD
    $404.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $718.08 USD
    $533.00 USD

    Available to order · 4 options

  • Performance Cruise

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Shackle
    List Price:  $678.02 USD
    $503.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $1,101.23 USD
    $817.00 USD

    Available to order · 14 options

  • Club Racing

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Shackle
    List Price:  $1,052.32 USD
    $781.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    91 ft (27.7 m)
    Hardware
    Shackle
    List Price:  $1,376.07 USD
    $1,021.00 USD

    Available to order · 8 options

  • Grand Prix Racing

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    68 ft (20.7 m)
    Hardware
    Shackle
    List Price:  $1,259.47 USD
    $935.00 USD

    Available to order · 8 options

  • View moreAll IMX 45 halyards & sheets

Made up to the lengths computed from the IMX 45's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising7 lines Cruiser XTS Polyester Double Braid Up to 5 No $126.00
Performance Cruise7 lines DX Performance SK38 with polyester cover Up to 4 No $279.00
Club Racing7 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $299.00
Grand Prix Racing7 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $452.00

Rope names are quoted from each product's own description; prices are the lowest option for the IMX 45. Not sure which grade suits your sailing? Ask us.

Winches 1

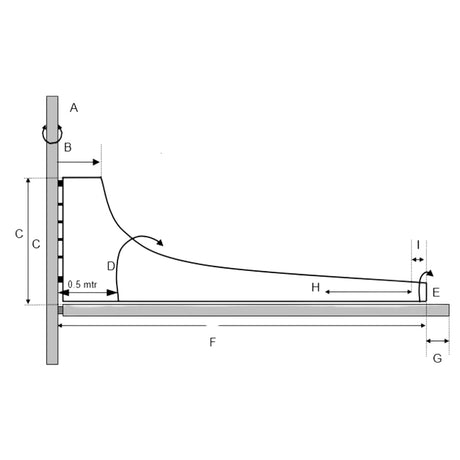

Mainsail covers 3

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderIMX
DesignerNiels Jeppesen
Years built2002-2004
Number built24
RigFractional Sloop
HullFin w/bulb & spade rudder
ConstructionFG w/Divinycell core
Length overall45.1 ft 13.7 m
Waterline length41.3 ft 12.6 m
Beam13.6 ft 4.1 m
Displacement20,062 lb 9,100 kg
I · foretriangle height59.5 ft 18.14 m
J · foretriangle base20.42 ft 6.22 m
P · mainsail luff62.83 ft 19.15 m
E · mainsail foot24.67 ft 7.52 m
Forestay length20.4 ft 6.2 m
100% jib area607.5 sq ft 56.4 m²
Mainsail area837 sq ft 77.8 m²
Jib + mainsail area1444.5 sq ft 134.2 m²
Cruising spinnaker area1032.7 sq ft 96 m²

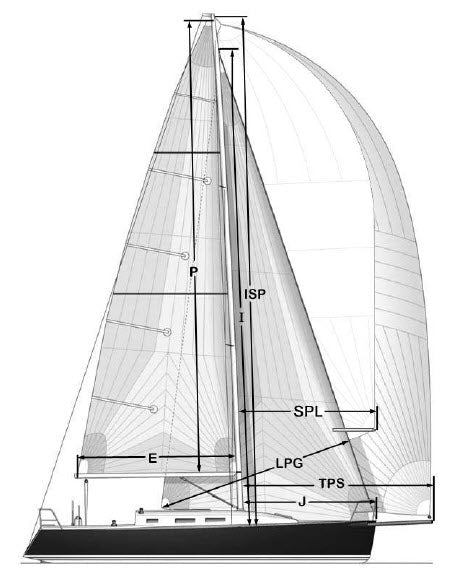

I 59.5 J 20.4 E 24.7 P 62.8
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the IMX 45

Other IMX models

Questions

What IMX 45 parts does MAURIPRO carry?

The IMX 45 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my IMX 45?

Halyards and sheets are made up to lengths computed from the IMX 45's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the IMX 45 rig dimensions?

Our IMX 45 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
