DESCRIPTION
DESCRIPTION

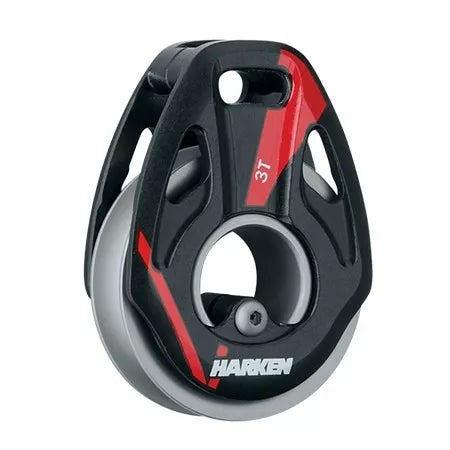

The V block delivers another breakthrough in Harken loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.
Loop not included
Our Part # HAR3295AL | Mfr. Part # 3295AL
FEATURES
FEATURES
- 56mm sheave diameter.
- Durable aluminum construction.
- Robust V-block design.
- Ideal for demanding marine use.
- Loop attachment for secure rigging.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 2 3/16 in | 56.0 mm |
| Max line Ø | 7/16 in | 11.0 mm |
| Mouth Ø | 13/16 in | 20.0 mm |
| Maximum working load | 6600.0 lb | 3000.0 kg |
| Breaking load | 13200.0 lb | 6000.0 kg |
