Selden Hydraulic Boom B290 & B380 — Spare Parts List
PARTS LIST
Spare parts for the Seldén B290 and B380 hydraulic booms: end fittings, outhaul car and running blocks, hydraulic outhaul and sheet cylinders, sliders and preventer exits.
DocumentSelden Hydraulic Boom B290 & B380 Spare Parts List
FormatPDF · 21 pages · 3.7 MB
LanguageEnglish
Standard Boom Sections
| Section | Height (mm) | Width (mm) | Weight (kg/m) |
|---|---|---|---|
| B290 | 290 | 155 | 11.5 |
| B380 | 380 | 186 | 17.8 |
The list gives the maximum parts each end fitting can take; the drawings may show more than can be fitted and are not necessarily identical to the parts listed.
Hydraulic Boom B290
Inboard end
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 509-054 | 1 | Inboard boom end | 209x155 | Ask us to source it → |

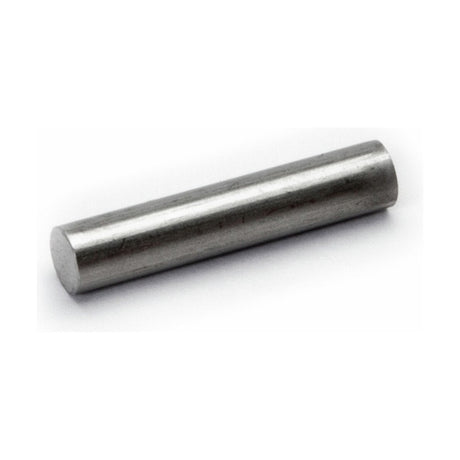

| 166-182 | 2 | Pin | ø20x145 | View part → |
| 504-339 | 3 | Sheave | ø130/20-20 | View part → |
| 550-264 | 4 | Link | 160x60/100x20 | Ask us to source it → |
| 166-343 | 5 | Pin | ø25x89 | Ask us to source it → |
| 164-046 | 6 | Washer | ø40/25.3-3 | Ask us to source it → |
| 301-526 | 7 | Spirolox | WST-98-S02 | Ask us to source it → |
| 166-209 | 8 | Pin | ø30x88 | Ask us to source it → |
| 166-528 | 9 | Spring pin | ø6x40 | Ask us to source it → |
| 151-005 | 10 | Screw M6S | Ø16x76 | Ask us to source it → |
| 156-102 | 11 | Slotted nut | M16 | Ask us to source it → |
| 301-013 | 12 | Split pin | Ø2.9x24 | View part → |
| 162-055 | 13 | Screw MFT | M8x11 | Ask us to source it → |
Outboard end
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 500-046 | 1 | Outboard end | 200x159x110 | Ask us to source it → |
| 500-047 | 2 | Outboard end cover | 177x159 | Ask us to source it → |
| 166-182 | 3 | Pin | ø20x145 | View part → |
| 504-339 | 4 | Sheave | ø130/20-20 | View part → |
| 162-039 | 5 | Screw MFT | M6x10 | Ask us to source it → |
| 162-055 | 6 | Screw MFT | M8x11 | Ask us to source it → |
| 155-613 | 7 | Screw MRT | M6x12 | View part → |
| 550-274 | 8 | Line stop | 37x32 | Ask us to source it → |
Outhaul car
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 511-648 | 1 | Outhaul car | L=240 | Ask us to source it → |
| 504-506-01 | 2 | Wheel | ø27.5/14-9.3 | Ask us to source it → |
| 504-508-01 | 3 | Wheel | ø30/14-8 | Ask us to source it → |

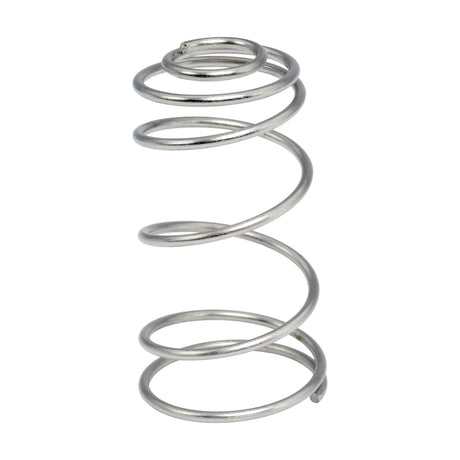

| 308-037 | 4 | Spring | ø38x72/ø2.8 | View part → |
| 408-001-01 | 5 | Block | ø80 | View part → |

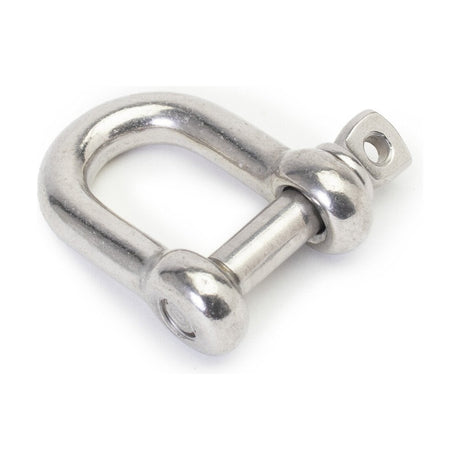

| 307-044 | 6 | Shackle | M12x25X39 | View part → |

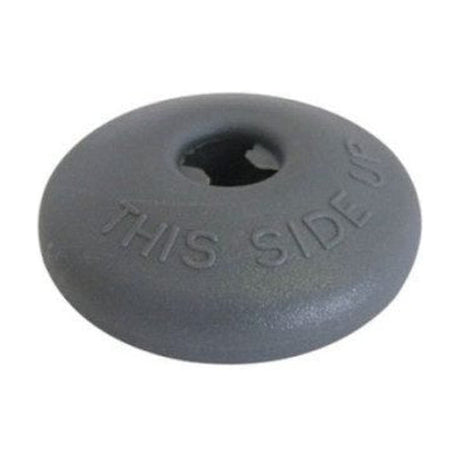

| 319-723 | 7 | Doughnut buffer | ø70/18-20 | View part → |
| 153-006 | 8 | Screw MC6S | M8x16 | Ask us to source it → |
| 164-514 | 9 | Washer | ø24/8.4-2 | Ask us to source it → |
| 511-652 | 10 | Stopper | 55x30x4 | Ask us to source it → |
Turning block
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|

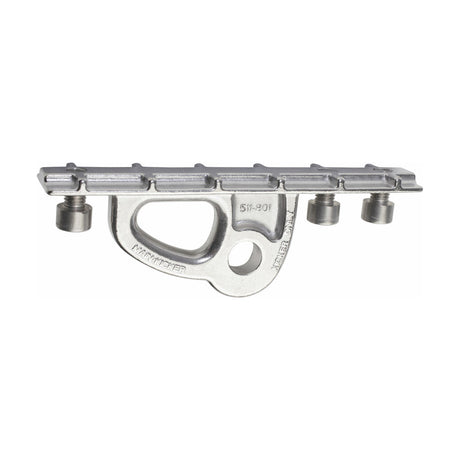

| 511-801 | 1 | Slider | T-32 | View part → |
| 410-001-01R | 2 | Block PBB100 single | Ø100 | View part → |
| 174-105 | 3 | Toggle eye/fork | 1/2" | Ask us to source it → |

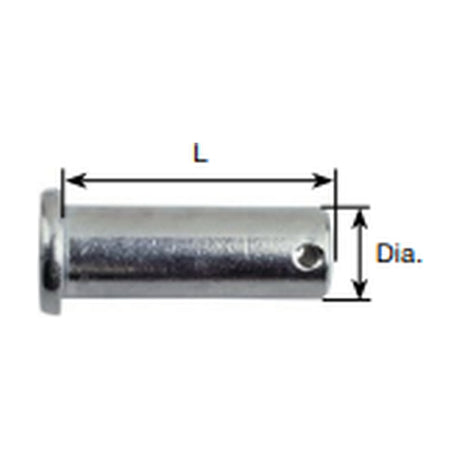

| 168-014 | 4 | Clevis pin | Ø13x32 | View part → |
| 301-011 | 5 | Split pin | 3x20 | View part → |
| 507-609 | 6 | Spacer plate | 22x5x180 | Ask us to source it → |
| 153-011 | 7 | Screw | MC6S 10x16 | Ask us to source it → |
| 164-403 | 8 | Washer, stainless | M10 | Ask us to source it → |
| 164-028 | 9 | Washer (insulating) PA | M10 | Ask us to source it → |
| 319-676 | 10 | Heat shrink | Ø38/19-90 | Ask us to source it → |
Running block, outhaul
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 550-255 | 1 | Side plate | 260X128X5 | Ask us to source it → |
| 550-251 | 2 | Centre plate | 260x100x5 | Ask us to source it → |
| 504-062-01 | 3 | Sheave | ø100/25-29 | Ask us to source it → |
| 166-343 | 4 | Pin | ø25x89 | Ask us to source it → |
| 301-526 | 5 | Spirolox | WST-98-S02 (pin 25) | Ask us to source it → |
| 550-254 | 6 | Guide | 260x13x13 | Ask us to source it → |
| 155-610 | 7 | Screw MRT | M6x16 | View part → |
| 306-730 | 8 | Spacer | ø20/8.4-30 | Ask us to source it → |
| 151-049 | 9 | Screw M6S | M8x90 | Ask us to source it → |
| 158-006 | 10 | Nut nyloc | M8 | Ask us to source it → |
Outhaul cylinder
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 550-116 | 1 | Hydraulic cylinder | ø65/25-2600 | Ask us to source it → |
| 550-216 | 2 | Fork | 130x60x54 | Ask us to source it → |
| 153-110 | 3 | Grub screw | M8x10 | View part → |
| 550-211 | 4 | Insert | ø6x5 | Ask us to source it → |
| 166-343 | 5 | Pin | ø25x89 | Ask us to source it → |
| 301-526 | 6 | Spirolox | WST-98-S02 | Ask us to source it → |
| 550-256-01 | 7 | Hydraulic cylinder clamp | 100x83 | Ask us to source it → |
Sliders & preventer exit
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 511-608-01 | 1 | Kicker slider | Hole ø16.5 | View part → |
| 511-608-02 | 1 | Kicker slider | Hole ø19.5 | View part → |
| 153-011 | 2 | Screw (kicker slider) | MC6S 10x16 | Ask us to source it → |

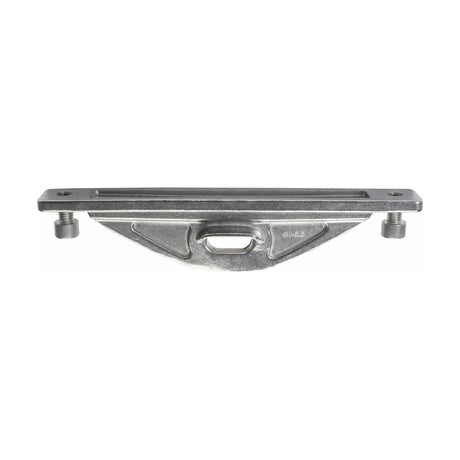

| 511-616 | 1 | Main sheet slider | T-32 L=240 | View part → |
| 505-102 | 1 | Preventer fairlead | 125x44 | Ask us to source it → |
| 162-098 | 2 | Screw (preventer) | MFT10x30 | Ask us to source it → |
Hydraulic Boom B380
Inboard end
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 509-060 | 1 | Inboard end | 330x190x295 | Ask us to source it → |
| 151-104 | 2 | Screw | M24x90 | Ask us to source it → |
| 156-109 | 3 | Castle nut | M24 | Ask us to source it → |

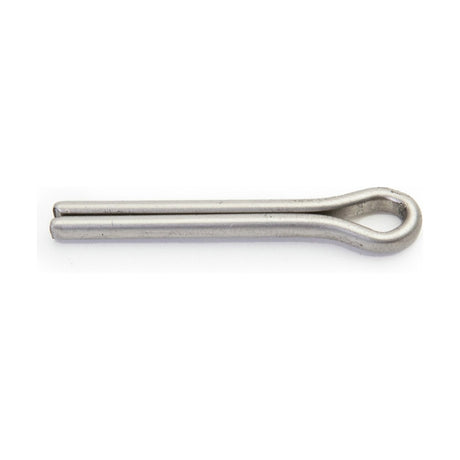

| 301-036 | 4 | Split pin | Ø5x50 | View part → |

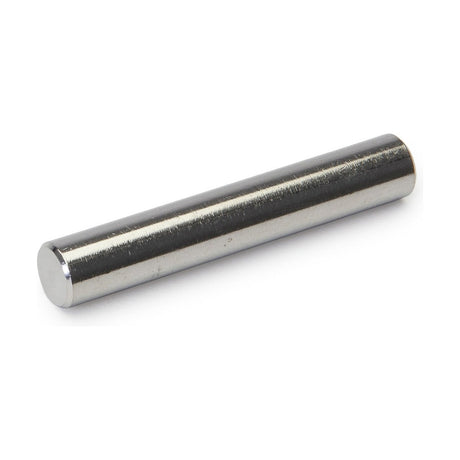

| 166-302 | 5 | Shaft | Ø30x168 | View part → |
| 504-403-01 | 6 | Sheave | Ø130/30-22 | Ask us to source it → |
| 166-546 | 7 | Shaft | Ø40x109 | Ask us to source it → |
| 301-544 | 8 | Retaining ring | DNS-40 | Ask us to source it → |
| 504-064-01 | 9 | Sheave | Ø100/40-24 | Ask us to source it → |
| 162-099 | 10 | Screw | A4-MFT 10x20 | Ask us to source it → |
| 162-033 | 11 | Screw | A4-MFT 8x16 | Ask us to source it → |
Outboard end
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 500-056 | 1 | Outboard end | 220x190x194 | Ask us to source it → |
| 500-054 | 2 | Cover | 220x190 | Ask us to source it → |
| 166-302 | 3 | Shaft | Ø30x168 | View part → |
| 504-403-01 | 4 | Sheave | Ø130/30-22 | Ask us to source it → |
| 162-033 | 5 | Screw | A4-MFT 8x16 | Ask us to source it → |
| 410-001-01 | 6 | Block | PBB 100 | View part → |
| 550-257 | 7 | Line stop | 35x30x30 | Ask us to source it → |
Outhaul assembly
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 511-654-01 | 1 | Outhaul car, System 42 | 358x45x95 | Ask us to source it → |
| 444-001-501 | 2 | Track | L=3500 | Ask us to source it → |
| 162-098 | 3 | Screw MFT | M10x30 | Ask us to source it → |
| 520-504-03 | 4 | End stop | 60x48 | Ask us to source it → |
| 520-516 | 5 | Buffer | 60x30x12 | Ask us to source it → |
| 162-044 | 6 | Screw MFT | M6x30 | Ask us to source it → |
| 511-662-01 | 7 | Outhaul stop | L=160 | Ask us to source it → |
| 319-924 | 8 | Doughnut buffer | ø75/18-25 | Ask us to source it → |

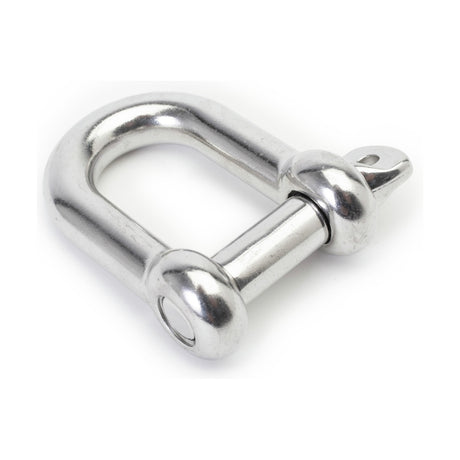

| 307-004 | 9 | Shackle | ø12x24x41 | View part → |
| 319-589 | 10 | Ball | 3/8" | Ask us to source it → |
Running block (outhaul) & sheet running block
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 550-276 | 1 | Side plate | 245x130x38 | Ask us to source it → |
| 550-280 | 2 | Centre plate | 245x108x8 | Ask us to source it → |
| 306-730 | 3 | Spacer | ø20/8.4-30 | Ask us to source it → |
| 151-050 | 4 | Screw M6S | M8x100 | Ask us to source it → |
| 158-006 | 5 | Nut nyloc | M8 | Ask us to source it → |
| 550-277 | 6 | Guide upper | 225x50x12 | Ask us to source it → |
| 155-613 | 7 | Screw MRT | M6x12 | View part → |
| 550-278 | 8 | Guide lower (outhaul block only) | 195x30x10 | Ask us to source it → |
| 155-610 | 9 | Screw MRT | M6x16 | View part → |
| 550-281 | 10 | Fork | 160x64x60 | Ask us to source it → |
| 153-110 | 11 | Grub screw MSK6SS | M8x10 | View part → |
| 550-211 | 12 | Insert | ø6x5 | Ask us to source it → |
| 166-544 | 13 | Pin | ø25x93 | Ask us to source it → |
| 301-526 | 14 | Spirolox | WST-98-S02 (pin 25) | Ask us to source it → |
| 504-062-01 | 15 | Sheave | ø100/25-29 | Ask us to source it → |
Item numbers follow the outhaul running block; the sheet running block uses the same parts without the lower guide and its screws.
Main sheet exit block
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 505-111 | 1 | Main sheet exit box | L=320 | Ask us to source it → |
| 504-062-01 | 2 | Sheave | Ø100/25-29 | Ask us to source it → |
| 166-359 | 3 | Shaft | Ø25x48 | Ask us to source it → |
| 301-526 | 4 | Retaining ring | WST-98 | Ask us to source it → |
| 166-547 | 5 | Shaft | Ø12x214 | Ask us to source it → |
| 166-548 | 6 | Roller | Ø30/14-189 | Ask us to source it → |
| 306-384 | 7 | Bearing | GFM-1214-24 | Ask us to source it → |

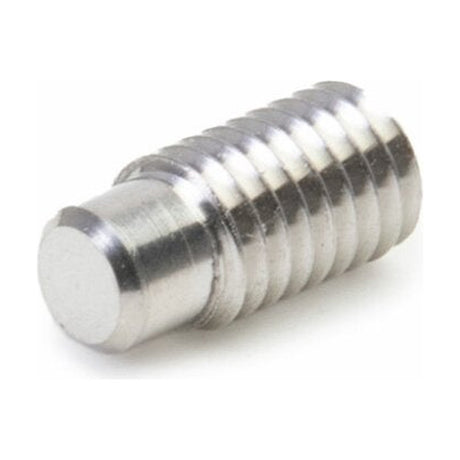

| 153-109 | 8 | Grub screw | A4-MSK6SS 6X10 | View part → |
| 162-091 | 9 | Screw | A4-MF6S 10x20 | Ask us to source it → |
Outhaul cylinder & sheet cylinder
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 550-157 | 1 | Hydraulic cylinder (outhaul) | ø120/100-3053 | Ask us to source it → |
| 550-158 | 1 | Hydraulic cylinder (outhaul) | ø120/100-3453 | Ask us to source it → |
| 166-546 | 2 | Pin | ø40x109 | Ask us to source it → |
| 301-544 | 3 | Retainer ring | DNS-40-S16 | Ask us to source it → |
| 550-282 | 4 | Cylinder mount | 143x120x80 | Ask us to source it → |
| 153-020 | 5 | Screw MC6S | M12x20 | Ask us to source it → |
| 550-283 | 6 | Guide upper | 80x50x12 | Ask us to source it → |
| 155-613 | 7 | Screw MRT | M6x12 | View part → |
| 540-981-01 | 8 | Hose (outhaul) | 1/2", L=970 | Ask us to source it → |
| 540-981-03 | 9 | Hose (outhaul) | 1/2", L=3710 | Ask us to source it → |
| 550-156 | 1 | Hydraulic cylinder (sheet) | ø112/100-3318 | Ask us to source it → |
| 550-275 | 2 | Sheet cylinder bracket | 383x167x120 | Ask us to source it → |
| 153-083 | 3 | Screw MC6S | M12x40 | Ask us to source it → |
| 306-567 | 4 | Bush | ø16/12,5-16 | Ask us to source it → |
| 164-404 | 5 | Washer | ø24/13-2.5 | Ask us to source it → |
| 550-284 | 6 | Washer | ø24/16-10 | Ask us to source it → |
| 162-099 | 7 | Screw MFT | M10x20 | Ask us to source it → |
| 540-981-02 | 12 | Hose (sheet) | 1/2", L=840 | Ask us to source it → |
| 540-981-04 | 13 | Hose (sheet) | 1/2", L=2920 | Ask us to source it → |
| 550-338 | 14 | Sealing kit (both cylinders) | – | Ask us to source it → |
Kicker fitting, main sheet attachment & preventer exit
| Part no. | Item | Description | Dimension | |
|---|---|---|---|---|
| 511-653-01 | 1 | Kicker fitting | Hole ø20.5 | Ask us to source it → |
| 511-653-03* | 1 | Kicker fitting | Hole ø22.5 | Ask us to source it → |
| 511-653-02** | 1 | Kicker fitting | Hole ø25.5 | Ask us to source it → |
| 153-170 | 2 | Screw | MLC6S 8x20 | Ask us to source it → |
| 164-422 | 3 | Washer (for 511-653-03) | Ø39/23-3 ST.ST | Ask us to source it → |
| 164-046 | 3 | Washer (for 511-653-02) | ø40/25-3 PA | Ask us to source it → |
| 508-818 | 1 | Pad eye (main sheet) | Ø86 | View part → |
| 508-943-01 | 2 | Backing plate | 100x100x12 | Ask us to source it → |
| 162-025 | 3 | Screw | MFT 6x16 | Ask us to source it → |
| 162-106 | 4 | Screw | MFT 10x25 | Ask us to source it → |
| 505-102 | 1 | Preventer fairlead | 125x44 | Ask us to source it → |
| 162-099 | 2 | Screw | MFT10x20 | Ask us to source it → |
Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
Products in this Manual
-
-
Selden Padeye - Stainless Steel Round - Size: 3 25/64 in (86 mm)
SEL508818R
$91.95 USDUnit price /Unavailable -
Selden GRUB SCREW MSK6SS 6x10 ST
SELDEN-GRUB-SCREW-MSK6SS-6X10-ST
$7.99 USDUnit price /Unavailable -
Selden High-Load D-shackle in Duplex 2205 Steel - ø12 X 24 X 41 mm
SELDEN-SHACKLE-O12X24X41-HI-LOAD-ST
$108.95 USDUnit price /Unavailable -
-
Selden Split Pin ø5x50 A4 Stainless
SELDEN-SPLIT-PIN-O5X50-A4EQ-LEG
$5.99 USDUnit price /Unavailable -
Selden MAIN SHEET SLIDER T32/240 ST
SELDEN-MAIN-SHEET-SLIDER-T32-240-ST
$645.00 USDUnit price /Unavailable -
Selden KICK.SLIDER T-32 ø19.5 MK2
SELDEN-KICK-SLIDER-T-32-O19-5-MK2
$475.00 USDUnit price /Unavailable -
Selden Rodkicker Boom Bracket, for Rodkicker Type 30, Boom Sections B290 - B300
SELDEN-KICK-SLIDER-T32-300-O16-5-MK2
$475.00 USDUnit price /Unavailable -
Selden GRUB SCREW MSK6SS 8x10 ST
SELDEN-GRUB-SCREW-MSK6SS-8X10-ST
$7.99 USDUnit price /Unavailable -
-
-
Selden Clevis Pin ø13x32 mm, AISI316 Stainless, for 1/2" Turnbuckle
SELDEN-CLEVIS-PIN-O13X32-HF-ST
$8.99 USDUnit price /Unavailable -
Selden 100 Plain Bearing Block - Single
SEL41000101R
$445.00 USDList Price: $517.00 USDUnit price /Unavailable -
Selden KICKER SLIDER T-32/62x180 ST
SELDEN-KICKER-SLIDER-T-32-62X180-ST
$216.00 USDUnit price /Unavailable -
Selden Doughnut Buffer for Outhaul, ø70/18 - 20 mm, Grey (Mainsail Furling)
SELDEN-DOUGHNUT-BUFFER-O70-18-20GREY
$26.99 USDUnit price /Unavailable -
Selden SHACKLE M12x24X39 (SCREW/CAPTIVE PIN)
SELDEN-SHACKLE-M12X24X39-SCREW-CAPTIVE-PIN
$205.00 USDUnit price /Unavailable -
-
-
Selden Split Pin ø2.9x24 A4 Stainless
SELDEN-SPLIT-PIN-O2-9X24EQ-LEG3-2
$7.99 USDUnit price /Unavailable -
Selden Sheave ø130/20-20, Composite
SELDEN-SHEAVE-O130-20-20-COMP
$100.95 USDUnit price /Unavailable -
