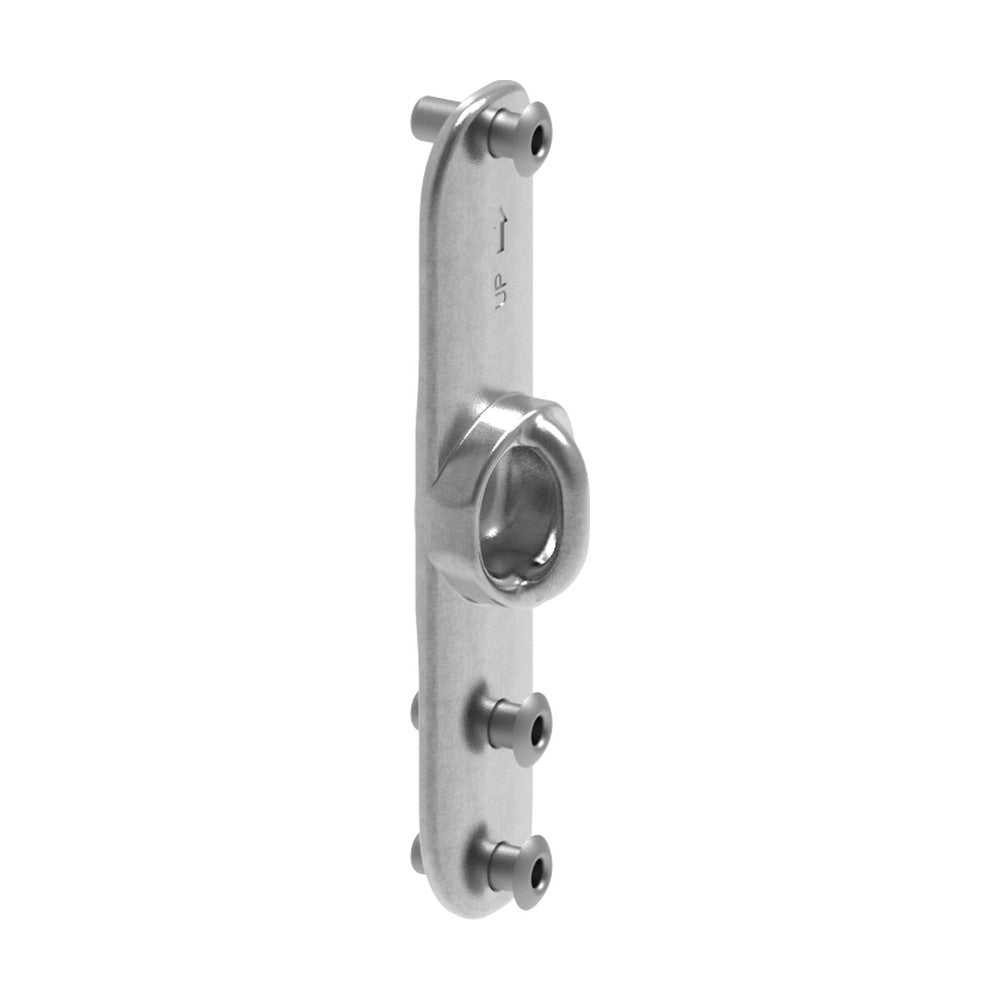

Selden Dead-end Bracket for Code Zero Halyard, Max Rope ø12

SKU: SEL508-843-01R  |  Manuf. Code: 508-843-01R
$212.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Code Zero halyard with 2:1 purchase To boost the performance when using a Code Zero , the halyard load must be higher than what normal halyard boxes and stoppers can handle. Therefore, a 2:1 purchase needs to be arranged by fixing the dead end of the halyard in the mast and letting it run through a block attached to the halyard swivel. Position on the mast must be specified by Seldén. In most cases Code Zero sails need to be hoisted lower than gennakers and spinnakers Fits Seldén mast sections E177, E206, C137, C153, C156, C175, C180, C192, C193, C208, C211, C227, F170, F176, F185, F194, F199, F212, F217, F228

FEATURES

  • 3 Monel pop rivets ø6,4 x 17,8 included.
  • Max righting moment (RM) at 30° heel: 45 kNm.
  • Mast Section: C137,C153,C156,C175,C180,C193,C192,C211,C208,C227,F170,F176,F185,F194,F199,F212,F217,F228 SWL (1): 1000 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
Mast SectionC137,C153,C156,C175,C180,C193,C192,C211,C208,C227,F170,F176,F185,F194,F199,F212,F217,F228C137,C153,C156,C175,C180,C193,C192,C211,C208,C227,F170,F176,F185,F194,F199,F212,F217,F228
SWL (1)2,204.62 lb1,000 kg
Weight5.54 oz.157.00 g.

KNOWLEDGE BASE

Selden Dead End Bracket — InstructionsHole sizes, fasteners and step-by-step fitting of the Seldén dead end brackets 508-843-01, 508-844-01 and 508-838-01.View Manual →
Selden 2:1 Halyard Arrangement for Code Zero — InstructionsHow a 2:1 Code Zero halyard is arranged on a Seldén mast, and which dead-end fitting, halyard lead and halyard box to.View Manual →
Selden CXe Electric Code 0 Furling System — Selection GuideOrder a Selden CXe25 or CXe45 electric Code 0 / top-down furler: on-deck or through-deck drive unit, technical data.View Selection Guide →
