Selden CXe Electric Code 0 Furling System — Selection Guide

On Deck or Through Deck

  • Through-deck (TD): integrated into the bow or bowsprit; a permanent installation, always ready for the furled sail to be connected.
  • On-deck (OD): no modification of deck or bowsprit; attach it to a pad-eye and connect the cable on deck or in the anchor locker. OD systems include an IP67 deck contact.
  • Captive pin with spring-loaded clutch; operates with one hand.
Art. No. Model Parts included
545-455-18 CXe25 OD Drive unit View unit →
545-455-19 CXe25 OD Drive unit & halyard swivel View unit →
545-455-20 CXe45 OD Drive unit View unit →
545-455-21 CXe45 OD Drive unit & halyard swivel View unit →
545-455-28 CXe25 TD Drive unit View unit →
545-455-29 CXe25 TD Drive unit & halyard swivel View unit →
545-455-30 CXe45 TD Drive unit View unit →
545-455-31 CXe45 TD Drive unit & halyard swivel View unit →

On the Technical Side

CXe runs on SEL-Bus and a Power Supply Unit (PSU) that converts 12V or 24V to 42V; further SEL-Bus functions can run on the same PSU. 42V allows smaller power cables (6 mm²) and a compact brushless motor.

CXe 25 CXe 45
Max working load (kN) 25 45
Max suggested sail area (m²) 115 200
AT-cable Ø (mm) 13 15
Operation 2-speed
Rev. per minute (slow / high speed) 220/500
Voltage (V) 42
Current consumption, nominal, 12V 0,13 Ah (nominal 50 A, 10 seconds)
Current consumption, nominal, 24V 0,07 Ah (nominal 25 A, 10 seconds)
Power (W) 1000
Motor 42V, brushless
  • Machined anodized aluminium drive unit; composite top cover; lift handle.
  • Stainless fork terminal compatible with Selden AT-terminals.
  • 5 m cable (3 × 6 mm²).
  • Snap shackle adaptor in Duplex 2205 stainless.

AT-Cable, Halyard Swivel and Protection Bar

Art. No. Model Length (mm) Ø (mm)
613-022-01 CXe25 16000 13 View cable →
613-022-02 CXe25 19000 13 View cable →
613-022-03 CXe25 22000 13 View cable →
613-022-04 CXe25 25000 13 View cable →
613-022-05 CXe25 28000 13 View cable →

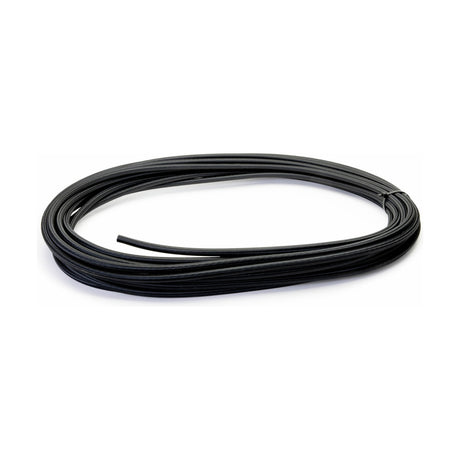

613-023-01 CXe45 19000 15 View cable →
613-023-02 CXe45 22000 15 View cable →
613-023-03 CXe45 25000 15 View cable →
613-023-04 CXe45 28000 15 View cable →
Art. No. Item
546-222-01 Halyard swivel, CXe25 Ask us to source it →
546-422-01 Halyard swivel, CXe45 Ask us to source it →
545-468 Stainless protection bar for TD View part →

Code 0 Halyard with 2:1 Purchase

To reach the luff tension a Code 0 needs, the halyard load must be higher than normal halyard boxes and stoppers can handle. Arrange a 2:1 purchase: fix the dead end of the halyard in the mast and run it through a block attached to the halyard swivel. The position on the mast must be specified by Selden; in most cases Code 0 sails are hoisted lower than gennakers and spinnakers.

Art. No. Dim. Weight (g) L1 L2 W D Safe working load (kg) Breaking load (kg) Max line size (mm) To be used for
404-501-01R 40 187 85 26 18 10 2500 5000 12 CXe 25 View block →
405-501-01R 50 335 104 31 24 12 4000 8000 16 CXe 45 View block →

Dead end fitting

Art. No. Mast section Max rope Ø (mm) Max RM at 30° heel (kNm)

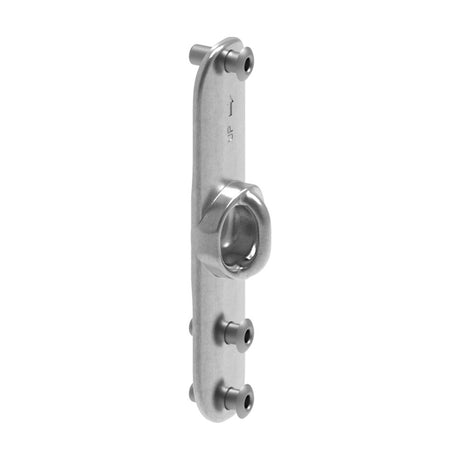

508-843-01R E177, E206, C137, C153, C156, C175, C180, C192, C193, C208, C211, C227, F170, F176, F185, F194, F199, F212, F217, F228 12 45 View fitting →

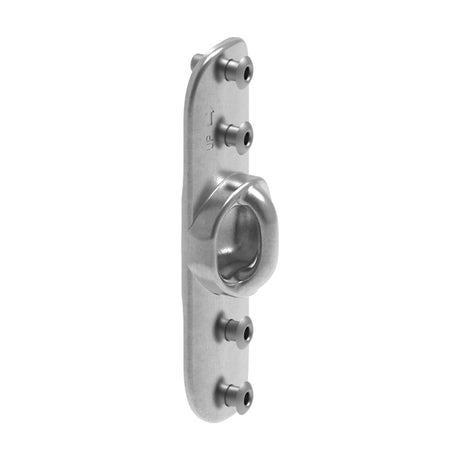

508-844-01R E206, C225, C242, C245, C261, C264, C285, F246, F252, F265, F272, F286, F291, F305 14 180 View fitting →

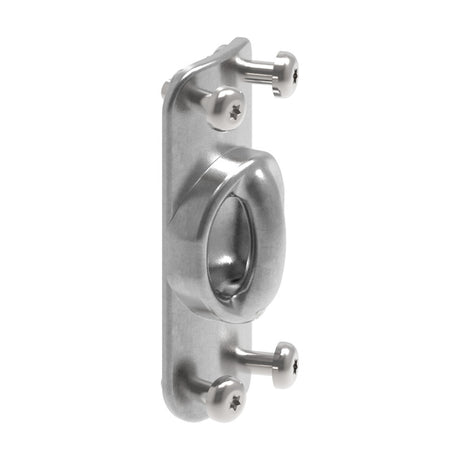

508-838-01R C280, C321, C365, F324, F370, F406 16 350 View fitting →

AT-Terminals and Top-Down Furling

The Selden Nail Terminal gives a quick, safe and reliable AT-cable assembly for Code 0 furling systems.

Art. No. Model For AT-cable Ø (mm)
301-306-01 CXe25 13 View terminal →

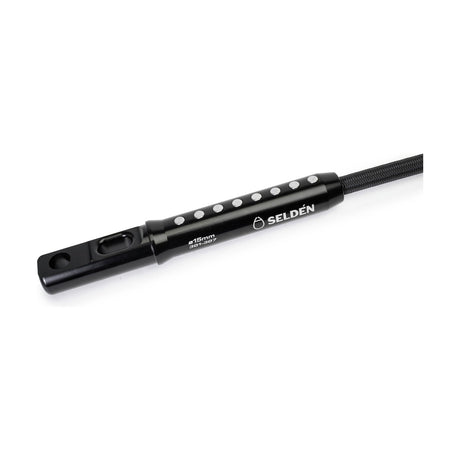

301-307-01 CXe45 15 View terminal →

The Tack Swivel converts a CXe into a top-down furling system for an asymmetric spinnaker. To furl, stay at an apparent wind angle of 90-120° with light pressure on the sheet; push and hold IN to start, then press OUT at the same time for high speed.

Art. No. Model Tack Swivel Adaptor AT-cable Ø (mm) Max suggested sail area (m²)
546-220-10 CXe25 For a Selden Nail terminal 13 115 View swivel →

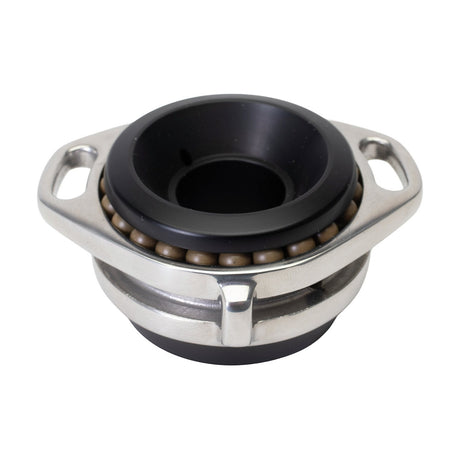

546-420-10 CXe45 For a Selden Nail terminal 15 200 View swivel →

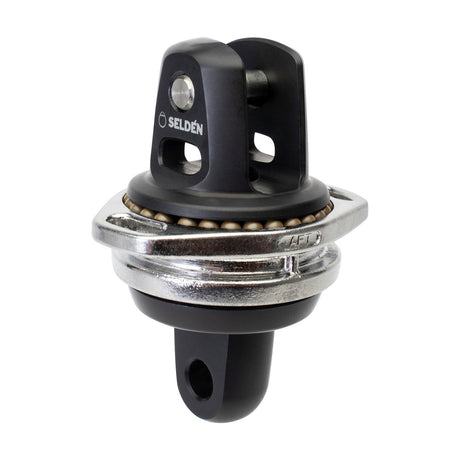

546-226-10 CXe25 Fork/Eye, for thimble, Nail terminal or tackboard 13 115 View swivel →
546-426-10 CXe45 Fork/Eye, for thimble, Nail terminal or tackboard 15 200 View swivel →

Power, Control and Pad Eyes

Art. No. Item Parts included
532-800-20 PSU start pack 12V Power Supply Unit (PSU), main switch/fuse, SEL-Bus cables and terminals, power cables View part →
532-800-30 PSU start pack 24V Power Supply Unit (PSU), main switch/fuse, SEL-Bus cables and terminals, power cables View part →
532-815-70 Control pack for CXe25 and CXe45 Motor Control Unit (MCU), push buttons, SEL-Bus cables and terminals Ask us to source it →

Pad eyes for CXe on-deck

Align the loop in the boat's lateral direction.

Art. No. Dimension & fasteners To be used for
508-817 Ø72, 4×M8 CXe 25 Ask us to source it →
508-818 Ø86, 4×M10 CXe 45 Ask us to source it →

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
