Selden Furlex 400TD — Owner's Manual

This manual is split into 2 pages: Part 1 → · Part 2

Luff Extrusion Parts

Part No. Item Description Dimension

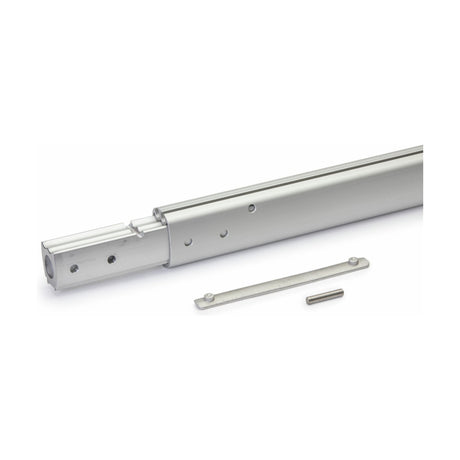

539-758-01 D1–D4, D7 Lower luff extrusion 660 mm, assembly View part →
539-758 D1 Luff extrusion 48/34 L=660 Ask us to source it →
539-759-01 D2–D3 Long joint sleeve with insulator, assembly Ask us to source it →
539-759 D2 Joint sleeve 36/29 L=885 Ask us to source it →
539-760 D3 Insulator L=885 Ask us to source it →
166-226 D4 Pin Ø6x30 Ask us to source it →
539-168-01 D5–D6 Sail feeder, assembly View part →
539-168 D5 Sail feeder 75x36 Ask us to source it →
539-169 D6 Sail feeder connector 75x36 Ask us to source it →
539-262 D7 Connecting plate 146x13 View part →
539-174-01 D8–D10 Luff extrusion 1700 mm, assembly View part →
539-174 D8 Luff extrusion 48/34 L=1700 Ask us to source it →
539-175 D9 Distance tube 30/28 L=1400 Ask us to source it →
539-261 D10, D15 Connecting plate 74x13 View part →
536-165-05 D11–D15 Luff extrusion 2400 mm, assembly (number as printed) Ask us to source it →
539-165 D11 Luff extrusion 48/34 L=2400 Ask us to source it →
539-166-01 D12–D13 Joint sleeve with insulator, assembly Ask us to source it →
539-166 D12 Joint sleeve 36/29 L=300 Ask us to source it →
539-194 D13 Insulator L=300 Ask us to source it →
539-190 D14 Distance tube 30/28 L=2100 Ask us to source it →

Selden Furlex 400TD luff extrusions parts drawing

Additional Items

Part No. Item Description Dimension Wire

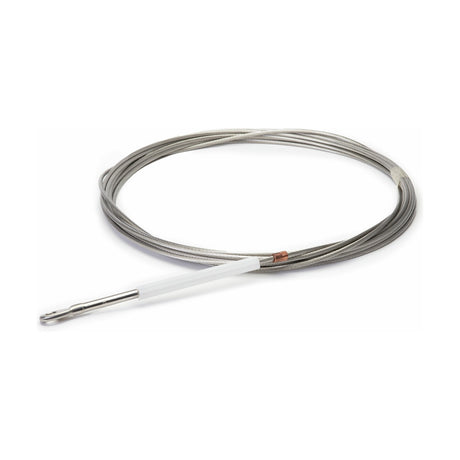

601-009-51 E1 Forestay wire pack L=20400 Ø12 View part →
601-009-52 E1 Forestay wire pack L=22800 Ø12 View part →
601-010-51 E1 Forestay wire pack L=20400 Ø14 View part →
601-010-52 E1 Forestay wire pack L=22800 Ø14 View part →
539-191 E2 Top bearing L=200 Ø12, Ø14 Ask us to source it →
306-916 E3 Bush Ø22/13-30 Ø12 Ask us to source it →
306-917 E3 Bush Ø22/16-30 Ø14 Ask us to source it →
612-023-01 E4 Furling line Ø12 L=40000 Ø12, Ø14 Ask us to source it →
508-128-03 E5–E7 Halyard lead set Ø12, Ø14 Ask us to source it →
508-128 E5 Halyard lead Ø20-57 Ø12, Ø14 View part →
155-703 E6 Self-tapping screw MRX TT 6x12 Ø12, Ø14 View part →
530-627 E7 Insulator 60x54 Ø12, Ø14 Ask us to source it →
538-210-01 E8 Stanchion block, stainless steel For Ø25 Ø12, Ø14 View part →
538-210-02 E8 Stanchion block, stainless steel For Ø30 Ø12, Ø14 Ask us to source it →
312-305 E9 Locking adhesive ≈ 10g Ø12, Ø14 View part →
312-501 E10 Lubricating grease ≈ 100g Ø12, Ø14 View part →
539-186-01 E11–E12 Top guard with screw, package Ø12, Ø14 View part →
539-186 E11 Top guard Ø52x70 (as printed) Ø12, Ø14 Ask us to source it →
171-019 E12 Screw RXS Z4,8x9.5 Ø12, Ø14 Ask us to source it →
505-538-01 E15 Prefeeder pack 38x29 Ø12, Ø14 Ask us to source it →
592-006 E16 Drill bit Ø5.3 Ø12, Ø14 Ask us to source it →

Selden Furlex 400TD additional items parts drawing

Need a part that isn't listed? Ask us to source it and quote the part number from the PDF.
