DESCRIPTION

This cost effective cable tensioning system utilizes high quality closed turnbuckle assemblies and surface mount Termination Studs. Installation is easy by simply drilling holes in your verticals for the cable to pass through. Tensioning is accomplished by the Termination Stud cap or top pulling against the end verticals/posts in the run. This system supports any type or style of post with available wire sizes ranging from 1/8" to 3/8". All hardware is made from high quality 316 grade stainless steel for superior corrosion resistance.

Hayn Handy Crimp Hardware is for use in low load applications only. These fittings when properly installed, develop approximately 70% of cable strength. Use Hayn Nicopress tool for proper installation.

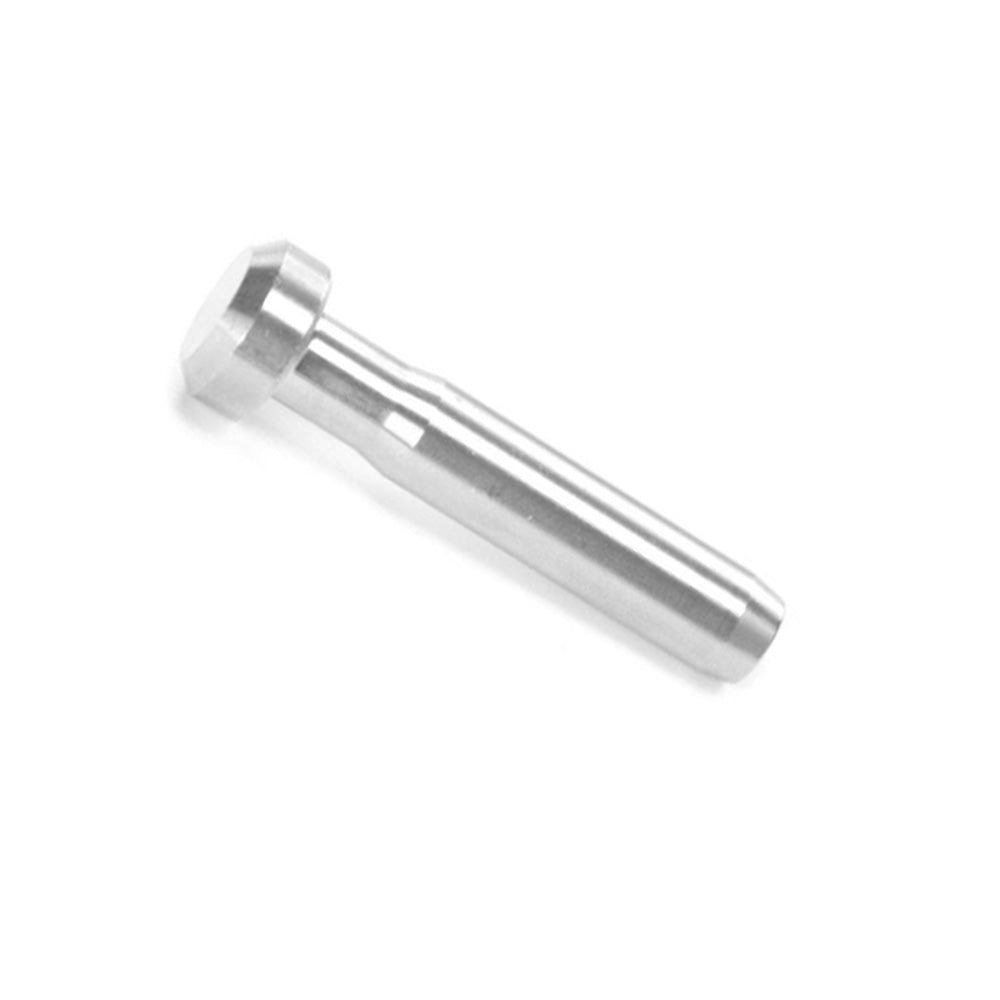

Our Part # HAYTSCLL18 | Hayn Part # TSCLL18

FEATURES

  • For 1/8 inch wire diameter.
  • Handy Crimp design for easy installation.
  • Marine-grade stainless steel construction.
  • Secure lifeline termination point.

TECHNICAL INFORMATION


DescriptionImperialMetric
Overall Length1 1/8 in28.6 mm
Pin Diameter5/32 in4.0 mm
Inside Width1/2 in12.7 mm
Working Load Limit1,000 lb453.6 kg
Breaking Strength5,000 lb2,268.0 kg
Size8 in203.2 mm
