Wichard D Shackle - Captive Pin - Pin Dia: 13/32 in (10.0 mm)

SKU: WIC1405  |  Manuf. Code: 1405W
$71.35 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Captive pin "D" shackle forged in grade 316L stainless steel. The pin is connected to the body at all times even when opened. The pin is locked into one of the indentations. No risks of loose due to vibrations. Outstanding working and breaking loads. Single handed operation for more safety. WLL: only for industrial applications. CE marking. Standard applications of shackle.

Our Part # WIC1405 | Wichard Part # 1405

TECHNICAL INFORMATION

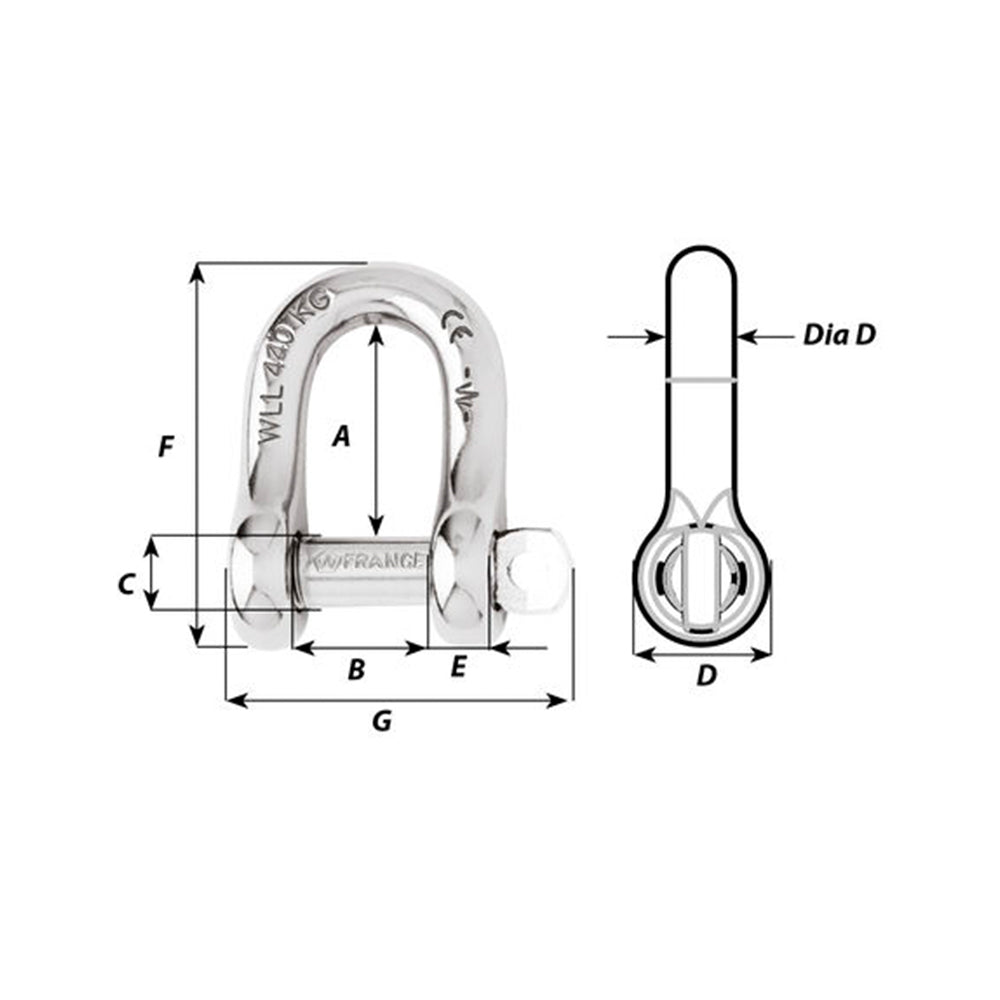

DescriptionImperialMetric
Material316 stainless steel grade316 stainless steel grade
Working load3439.21 lb.1560.00 kg.
WLL2292.81 lb.1040.00 kg.
Breaking Load11464.04 lb.5200.00 kg.
Weight0.25 lb.114.00 g.
A1 5/16 in.33.00 mm.
B13/16 in.20.00 mm.
C7/16 in.11.00 mm.
D13/16 in.21.00 mm.
D diameter3/8 in.10.00 mm.
E3/8 in.9.00 mm.
F2 1/4 in.58.00 mm.
G2 1/16 in.53.00 mm.
