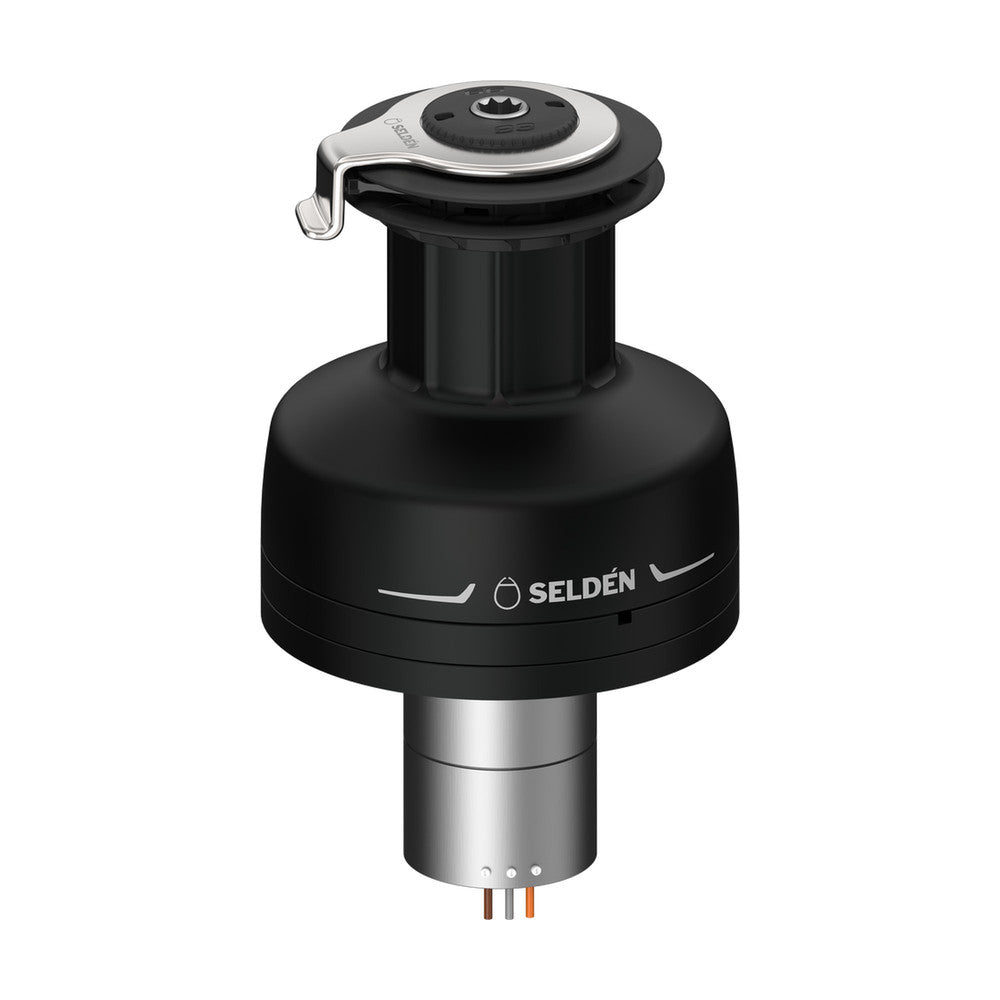

Selden Electric Winch, Size E66 - 3-speed and Self-tailing

SKU: SEL475-766-10  |  Manuf. Code: 475-766-10
$5,840.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The E-Series winches consist of a manual S-winch and a 1000W, 42V motor pack placed below the winch and protruding deck 145 mm The motor packs are powered by Seldén’s SEL-Bus system and a Power Supply Unit converting 12/24V to 42V allowing for an efficient and compact design. SEL-Bus is not included. Please consult an authorized Seldén dealer for a complete offer

FEATURES

  • Operates with three velocities for precise and efficient sail handling.The high-speed mode is an electric overdrive and perfect when pulling the slack of for instance a long and unloaded genoa or Code Zero sheet.
  • The Electric winches are manual 2-speed winches fitted to a SEL-Bus driven motor pack allowing for a third high-speed velocity.
  • The back-up solution, in case you run out of power, is to put a winch handle in the socket and grind.
  • The motor packs are powered up by Seldén’s Power Supply Unit converting 12/24V to 42V which makes for an efficient and compact design of the motor assembly and thin 6 mm2 power cables.
  • Manual: https://support.seldenmast.com/files/1704439868/597-490-E.pdf.
  • About SEL-Bus: https://support.seldenmast.com/files/597-275-E.pdf.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelE66E66
Height10.98 in279 mm
Depth Below Deck5.71 in145 mm
Motor Ø3.9 in99 mm
Base Ø9.65 in245 mm
Drum Ø4.72 in120 mm
Line Entry Height5.43 in138 mm
Sutible Line dimension Ø8-16 mm8-16 mm
Electric Cut off Load3,240.79 lb1,470 kg
Safe Working Load4,078.55 lb1,850 kg
Maximum Line Speed28 m/min28 m/min
Fasteners¹Socket head M10Socket head M10
Weight50.84 lb.23.06 kg.
