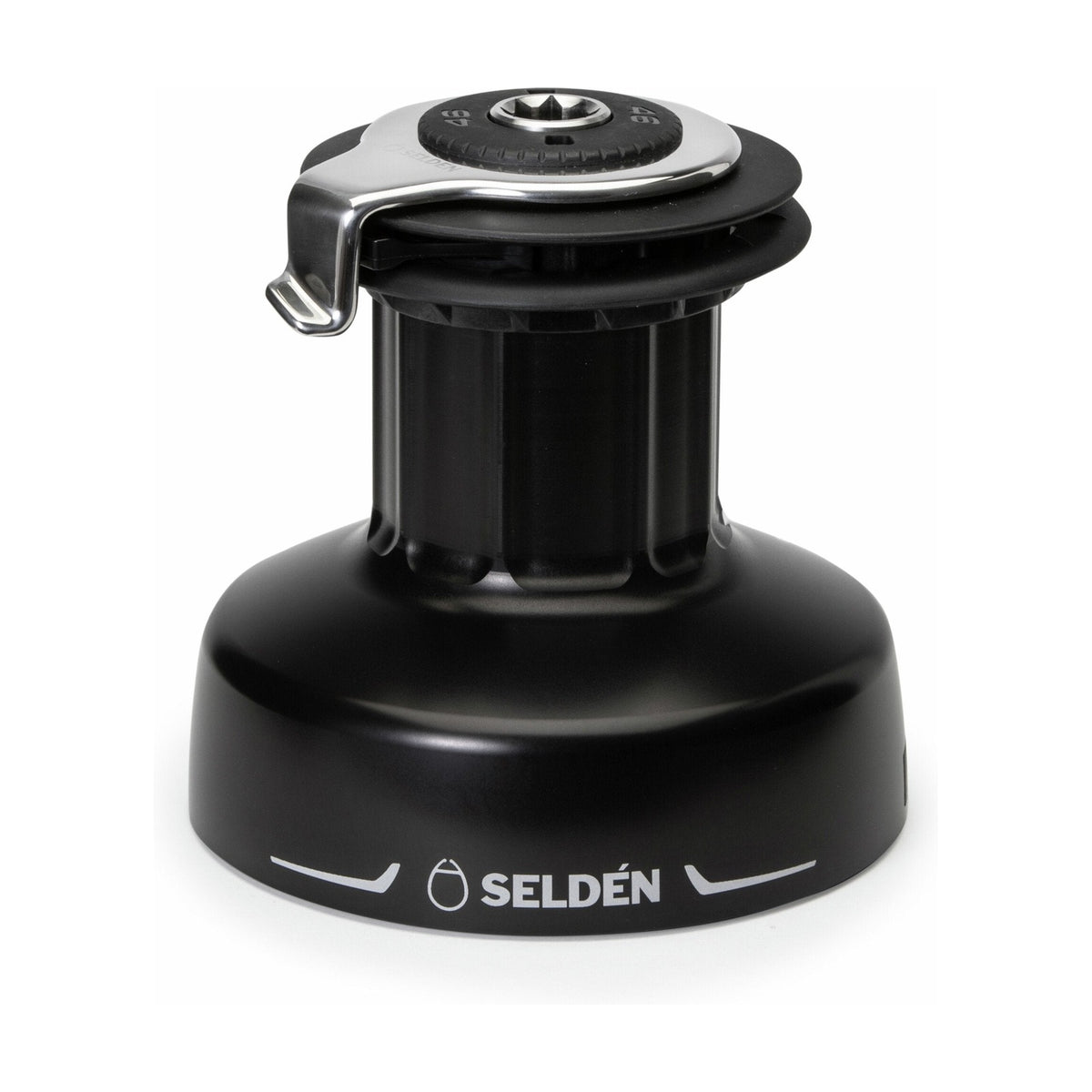

Selden Winch S46 - Self-Tailing, 2-speed, Aluminium Art Drum

SKU: SEL475-146-10  |  Manuf. Code: 475-146-10
$1,430.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Assymetric Rib Technology - ART The drums we are using for our new manual and electric winches are forged and machined hard anodised aluminium with vertical ribs located in an asymmetric pattern. Any line under load will become slightly dented where it rests over a rib and if all ribs were located symmetrically, all dents would simultaneously jump to the next rib when releasing the line. And the next one, and the next one…

FEATURES

  • Ribs placed asymmetrical provide a strong grip and a harmonious release and the interaction between the ART drum and the self-tailer strikes the perfect balance of grip and function.
  • Tacking and gybing made easy.
  • The S-series simplifies the manoeuvre of tacking and makes the handling of a highly loaded sheet safer and quicker.
  • The grip on the winch drum combined with a unique self-tailer enables the trimmer to pull the slack out of the sheet with the line sitting in the self-tailer and with the winch handle in position.
  • A great advantage for the racing sailor who can pre-load the sheet into the self-tailer of the windward winch prior to tacking and then sheet home and set the trim of the jib instantly on the new tack.
  • Simply pull in the slack and turn the handle a turn or two to get full tension.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelS46S46
Height7.32 in186 mm
Base Ø7.24 in184 mm
Drum Ø3.54 in90 mm
Line entry height2.95 in75 mm
Sutible Line dimension Ø8-14 mm8-14 mm
Power ratio High gear¹13:113:1
Power ratio Low gear¹46:146:1
Safe Working Load2,843.96 lb1,290 kg
Fasteners²Countersunk M8Countersunk M8
Weight12.24 lb.5.55 kg.

KNOWLEDGE BASE

Selden Winch Drilling Templates — InstructionsSelden drilling templates for the Series-S, Series-E, Erev and E40i winches and the older Winch 30 to 52: hole sizes.View Manual →
Selden Winch Dimensioning GuideSize Selden S-series and E-series winches (and E40i / E rev) for every position on board from your righting moment at.View Selection Guide →
Selden Series-S 2-Speed Self-Tailing Winches — Owner's ManualInstallation, operation, yearly service and spare parts for the Selden Series-S two-speed self-tailing winches S30.View Manual →
