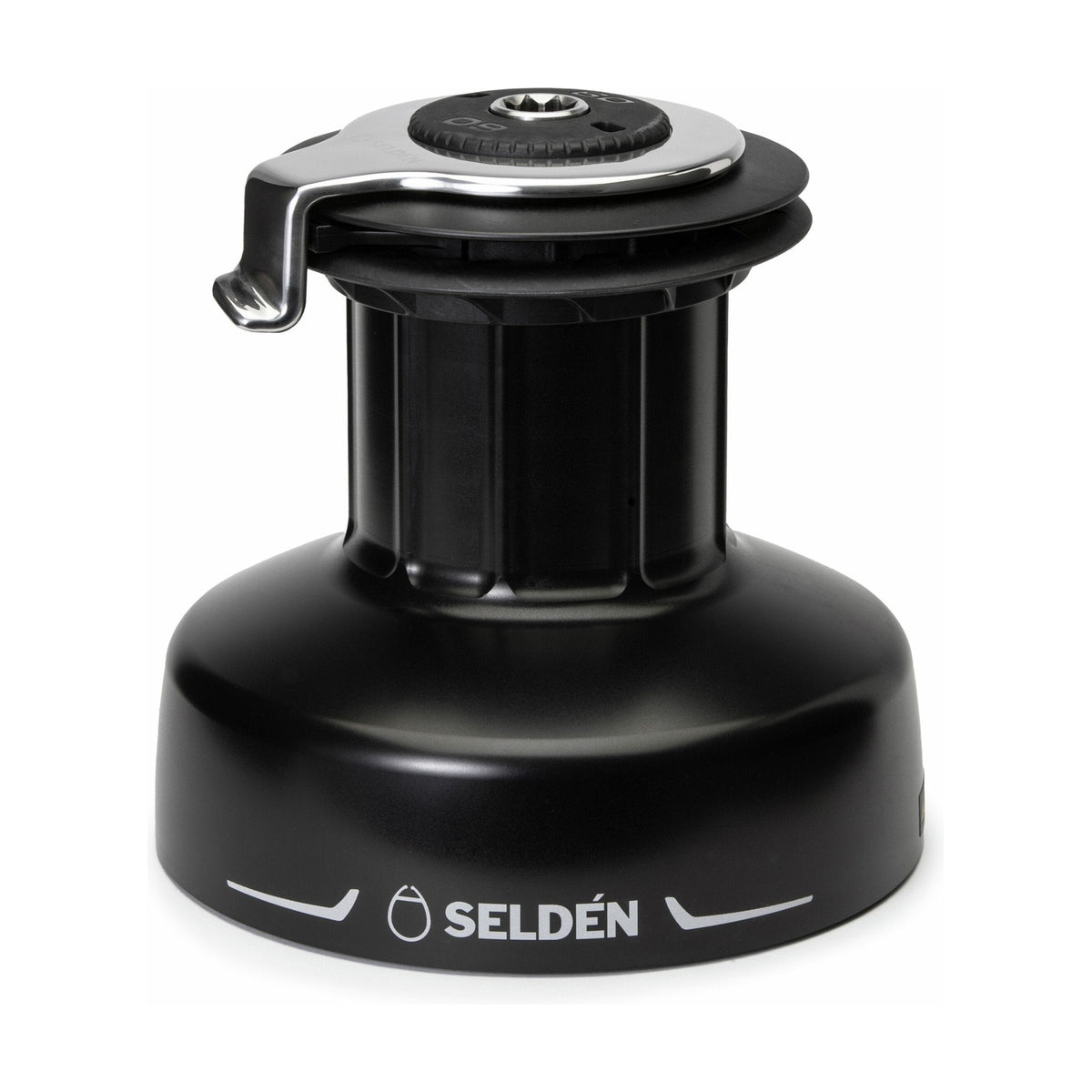

Selden Winch S60 - Self-Tailing, 2-speed, Aluminium Art Drum

SKU: SEL475-160-10  |  Manuf. Code: 475-160-10
$2,710.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Assymetric Rib Technology - ART The drums we are using for our new manual and electric winches are forged and machined hard anodised aluminium with vertical ribs located in an asymmetric pattern. Any line under load will become slightly dented where it rests over a rib and if all ribs were located symmetrically, all dents would simultaneously jump to the next rib when releasing the line. And the next one, and the next one…

FEATURES

  • Ribs placed asymmetrical provide a strong grip and a harmonious release and the interaction between the ART drum and the self-tailer strikes the perfect balance of grip and function.
  • Tacking and gybing made easy.
  • The S-series simplifies the manoeuvre of tacking and makes the handling of a highly loaded sheet safer and quicker.
  • The grip on the winch drum combined with a unique self-tailer enables the trimmer to pull the slack out of the sheet with the line sitting in the self-tailer and with the winch handle in position.
  • A great advantage for the racing sailor who can pre-load the sheet into the self-tailer of the windward winch prior to tacking and then sheet home and set the trim of the jib instantly on the new tack.
  • Simply pull in the slack and turn the handle a turn or two to get full tension.

TECHNICAL INFORMATION

DescriptionImperialMetric
ModelS60S60
Height9.41 in239 mm
Base Ø9.65 in245 mm
Drum Ø4.72 in120 mm
Line entry height3.86 in98 mm
Sutible Line dimension Ø8-16 mm8-16 mm
Power ratio High gear¹18:118:1
Power ratio Low gear¹60:160:1
Safe Working Load3,703.76 lb1,680 kg
Fasteners²Countersunk M10Countersunk M10
Weight30.95 lb.14.04 kg.
