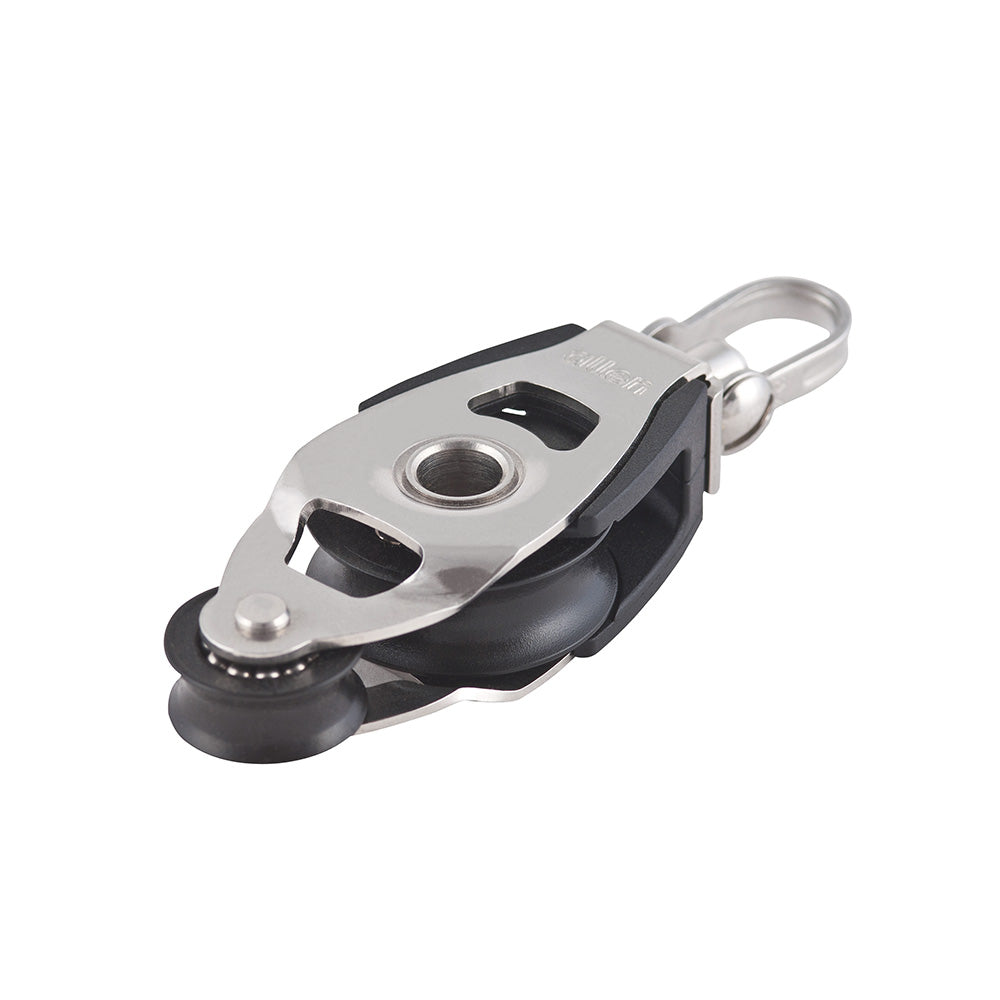

Allen 30 mm Dynamic Block with Fiddle (A2039FIDDLE)
SKU:
ALL-A2039FIDDLE
|
Manuf. Code:
A2039FIDDLE
18% off
Unit price
/
Unavailable
Allen 30 mm Dynamic Block with Fiddle (A2039FIDDLE) is backordered and will ship as soon as it is back in stock.
You Save $22 This Week!
Ships from United Kingdom.
Description
Description
30mm Single Dynamic Block With Fiddle.
Ideal for lightweight purchase systems which need to swivel.
Our Part # ALL-A2039FIDDLE | Mfr. Part # A2039FIDDLE
Features
Features
- Swivel Head: A built-in swivel pin allows this block to swivel once attached. ideal for applications where the pulling forces may change direction. The swivel cannot be locked.
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Fiddle: The fiddle is a secondary smaller sheave which can be used to create an inline purchase system for a smaller lower loaded application. The fiddle features ball bearings.
- Becket: This block also features a removable clevis pin, for easy attachment or release of a spliced rope. It also allows this block to create a 4:1 purchase system.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 1190.7 lbs. | 600.0 kg |
Length | 3 3/8 in | 85.0 mm |
Maximum line diameter | 5/16 in | 8.0 mm |
Maximum working load | 308.7 lbs. | 140.0 kg |
Weight | 1.66 oz | 47.0 g |
Shackle pin | 1/6 in | 4.0 mm |
