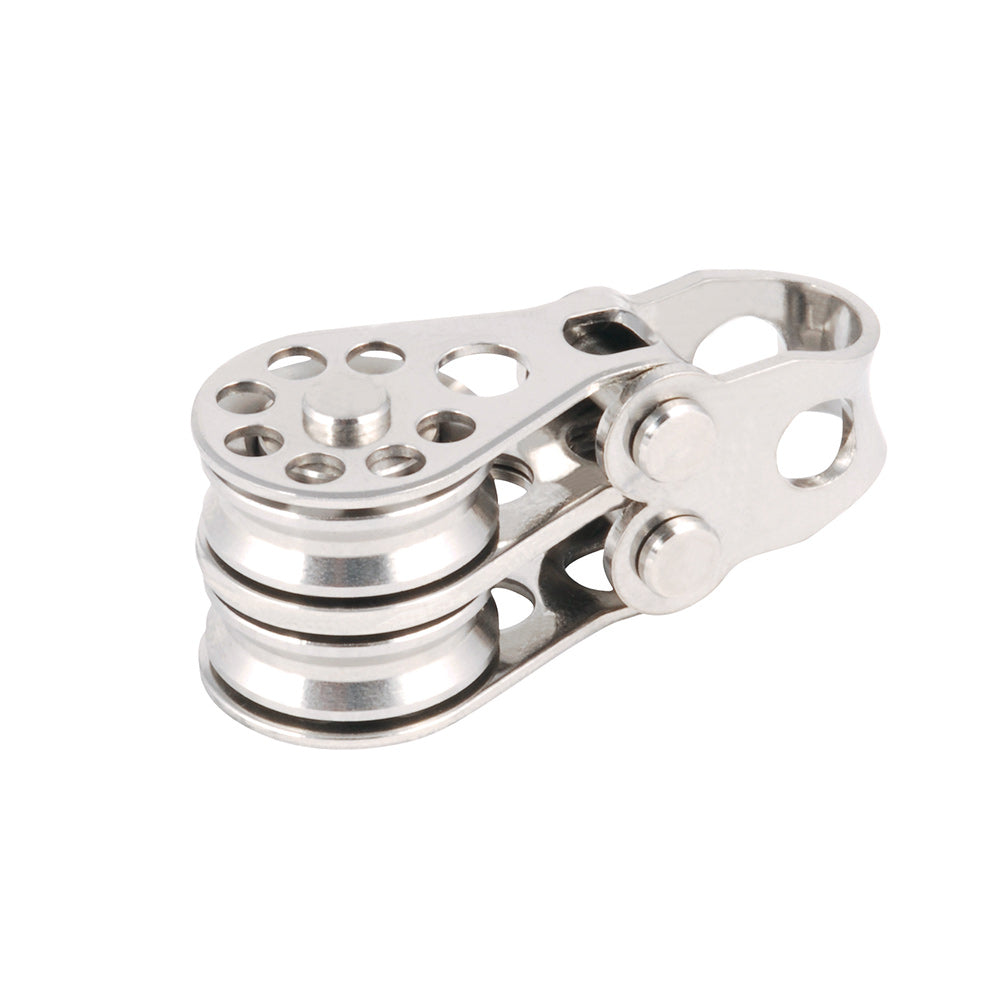

16mm Double Fixed Head Wire Block.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
Our Part # ALL-A4569 | Mfr. Part # A4569
Features
Features
- Body:Â Formed in stainless steel for a lightweight yet robust frame.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Breaking load | 882.0 lbs. | 400.0 kg |
| Length | 1 4/7 in | 40.0 mm |
| Maximum line diameter | 0.08 - 1/6 in | 2.0 - 4.0 mm |
| Shackle pin | 1/6 in | 4.0 mm |
| Sheave diameter | 5/8 in | 16.0 mm |
| Weight | 0.88 oz | 25.0 g |
