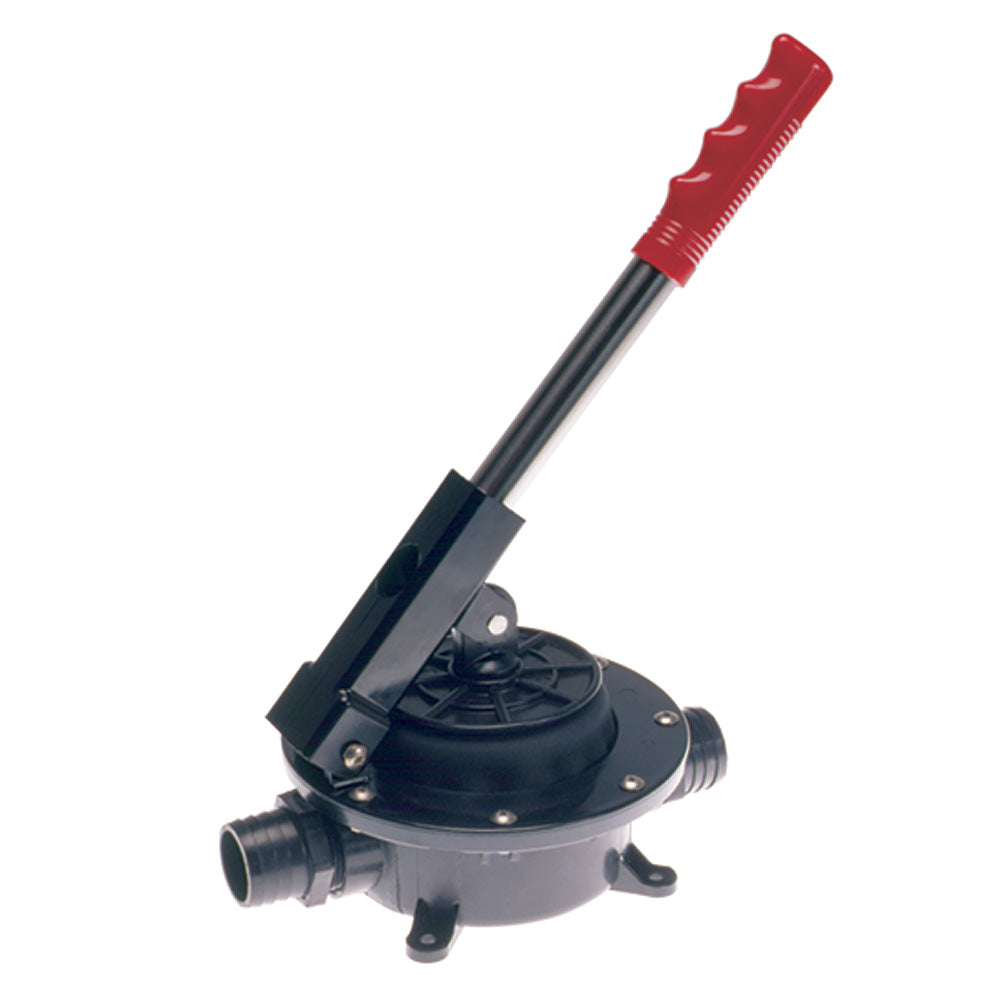

Diaphragm Pump
Made of corrosion-proof marine plastic. Two position stainless steel handle and adjustable (Octagonal) frame permits up to 16 variations in stroke direction. Mounts vertically on bulkhead or horizontally on deck without the need for special brackets. Uses Beckson FH-1-1/2 or VCS-1-1/2 hose.
Our Part # BEC-954DP2 | Beckson Marine Part # 954DP2

                    Features



                Features
- Angled top sleeve.
 - Contoured red tee handle.
 - Non-conductive material.
 - Self-priming plunger valve.
 - Special polyvinyl grey body and shaft.
 - Removable foot valve for cleaning.
 - Self-priming.
 - Solvent welded construction.
 - Will withstand temperature to 120 degrees F (49 degrees C).


                    Technical Information



                Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Length | 9.0 in | 23.0 cm |
| Width | 6 1/4 in | 16.0 cm |
| Height | 4 1/2 in | 114.0 mm |
| Capacity | 16.0 GPM. | 60.0 L |
