Garmin GHP SmartPump version 2 Autopilot System (010-00705-62)

SKU: GAR-010-00705-62  |  Manuf. Code: 010-00705-62
$2,799.99 USD

Description

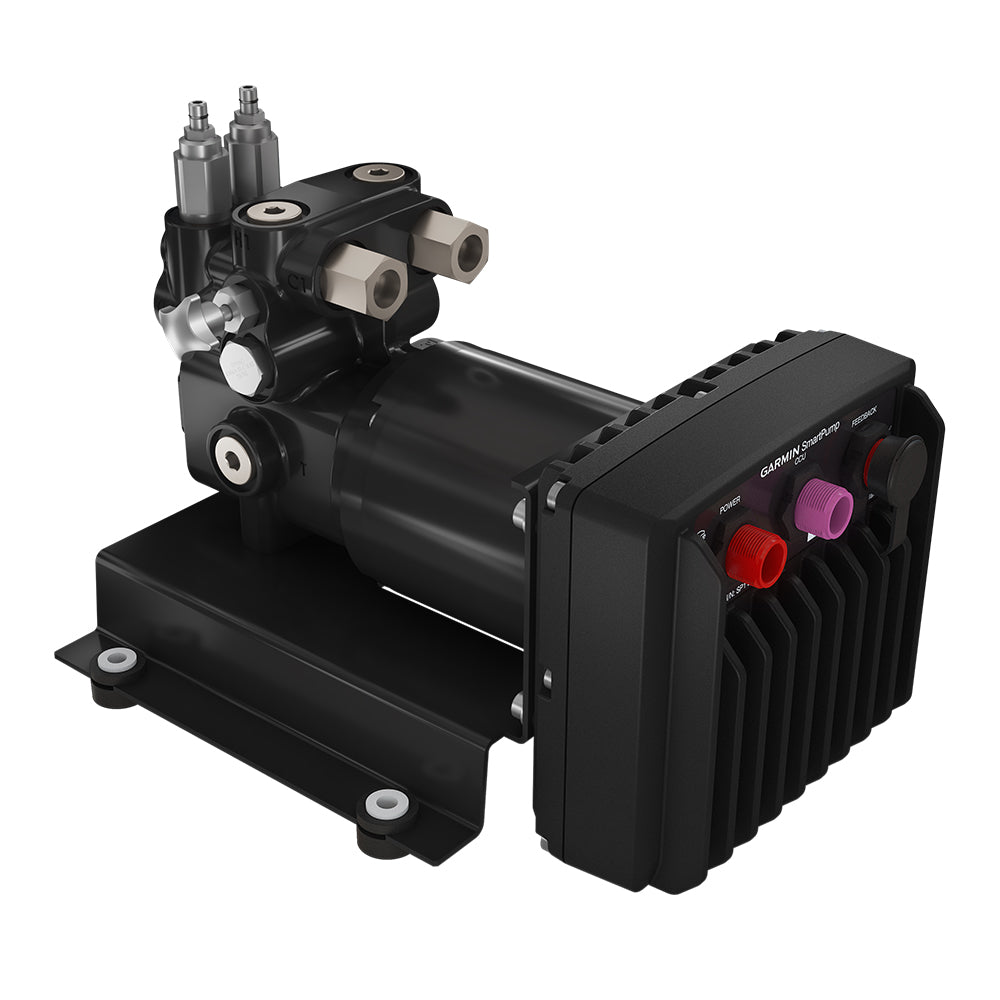

GHP SmartPump v2

Put an end to guessing which pump size will work with your particular boat. One SmartPump works for most boats and applications. You know you have the right pump for your boat for optimum control and confidence. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.

Garmin's SmartPump is engineered from corrosion-resistant components including black dye on aluminum parts and nickel-plating on all steel parts.

Our Part # GAR-010-00705-62 | Mfr. Part # 010-00705-62

Features

The Most Responsive Autopilot System on the Water:

  • Solid-state 9-axis Attitude Heading Reference System (AHRS)
  • Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride
  • Minimal commissioning and calibration
  • Supports heading hold, wind hold, step turns and tack/jibe modes

In The Box:

  • Reactor 40 CCU (Course Computer Unit)
  • ECU (Electronic Control Unit)
  • ECU power cable
  • Interconnect cable
  • Buzzer
  • NMEA 2000 drop cables (2 meters)
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation

Technical Information

DescriptionImperialMetric
Height6 3/5 in167.6 mm
Width7 1/2 in190.5 mm
Depth10 2/5 in264.16 mm
Weight17.03 lb8.0 kg
Temperature rangefrom -15°C to 55°C
MaterialElectronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
Power cable length8 6/7 ft2.7 m
Power input10-30 Vdc
Fuse40 A, blade-type
Main power usagestandby - less than 1 A; engaged - 5-10 A; peak - 34 A
Flow ratestandby - less than 1 A; engaged - 5-10 A; peak - 34 A
Compatible withsteering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu. in
