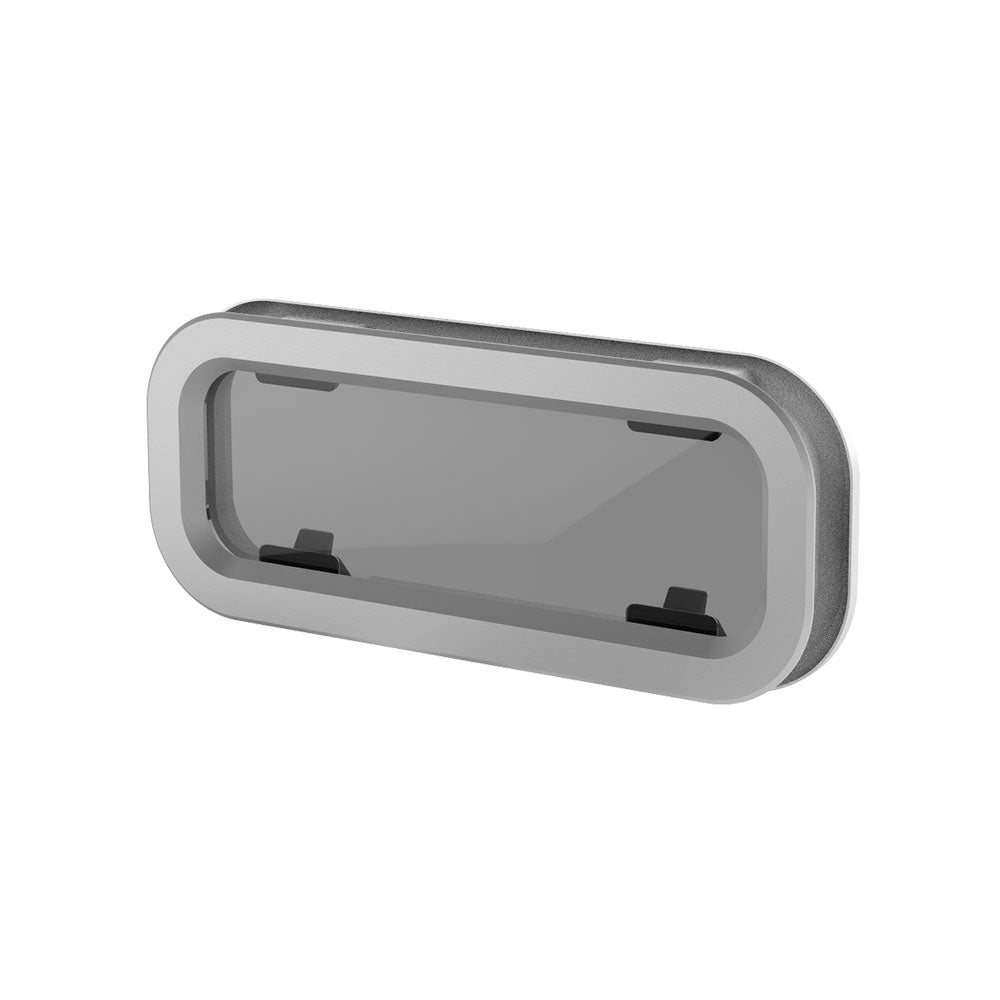

Lewmar Standard Portlight Size 2 - Cut Out: 15.6 x 40.5 cm (6 1/8 x 15 15/16 in) - Smoke Acrylic / Silver Frame, Ivory Trim

SKU: LEW393220500  |  Manuf. Code: 393220500
List Price:  $531.95 USD
$339.00 USD
36% off, you save $193
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Lewmar Standard Opening Portlight - Size 2 #393220500 is a great choice for those looking to upgrade their sailboat with reliable and stylish gear. It's designed to seamlessly match any Lewmar hatch, making it an easy addition for both new installs and replacements. This portlight is popular among sailors worldwide because of its ease of use and installation.

Constructed from smoke acrylic with a sleek silver frame and ivory trim, this portlight measures 6 15/16 x 16 3/4 inches. It's a dependable choice for sailors aiming for both function and style in their sailing gear. Designed by Lewmar, a brand trusted by sailors all over the world, this portlight promises longevity and performance.

Our Part # LEW393220500 | Mfr. Part # 393220500

FEATURES

  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Can be installed with sealant or closed cell PVC tape.
  • White ABS Plastic Trim.
  • Supplied complete with flyscreen (except sizes 4L and 4R).
  • Full range of spare parts available.
  • All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm.
  • Opening angle at 21mm hull thickness is 165°.
  • Stylish design that complements any Lewmar hatch
  • Competitive pricing without compromising quality
  • Simple installation process
  • Durable smoke acrylic with a silver frame and ivory trim

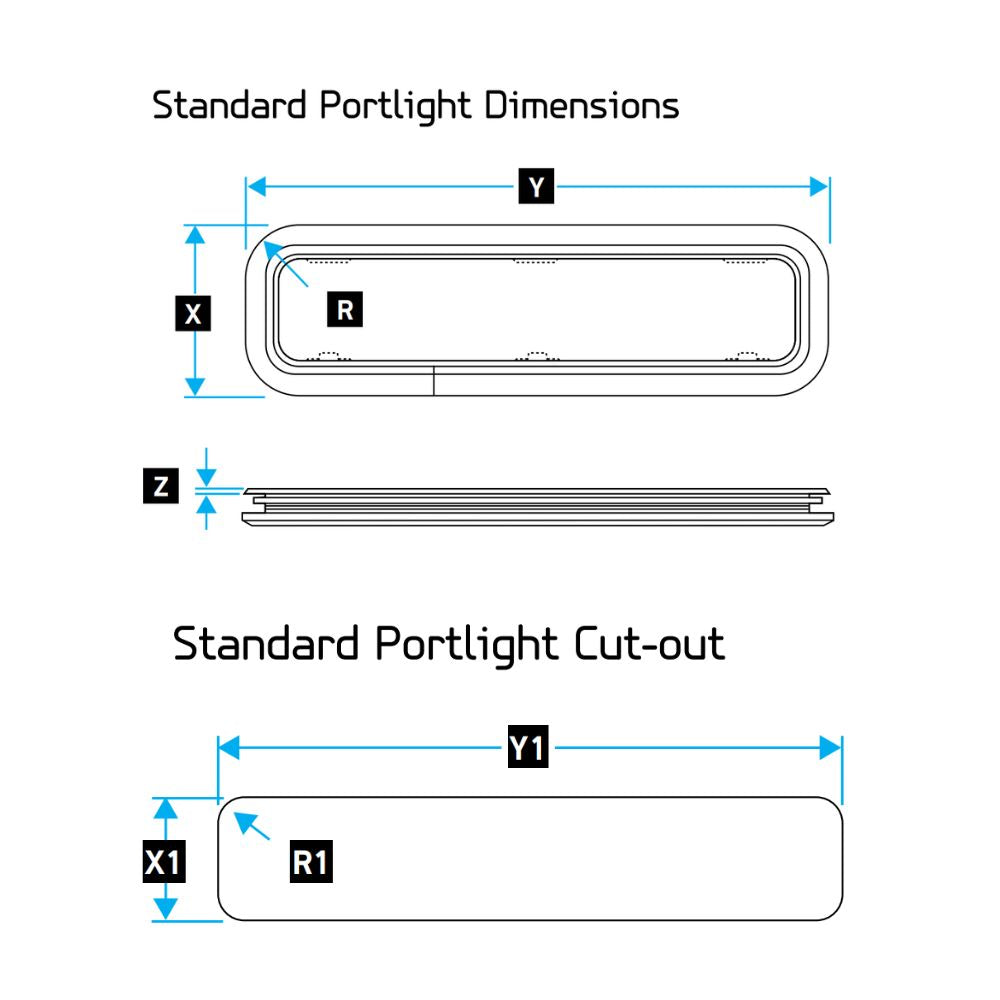

TECHNICAL INFORMATION

DescriptionImperialMetric
Width (X)6 15/16 in.176.00 mm.
Length (Y)16 3/4 in.425.00 mm.
Height (Z)5/32 in.4.00 in.
Radii (R)2 7/16 in.62.00 mm.
Width (X1)6 1/8 in.156.00 mm.
Length (Y1)15 15/16 in.405.00 mm.
Radii (R1)2 1/16 in.52.00 mm.
Weight3.00 lb.1.40 kg.
Acrylic Window Thickness5/16 in.8.00 mm.
