Lewmar Windlass - Pro-Sport 550G Free Fall 700W Horizontal Electric 12V Gypsy Only 6/7mm - DIN 766 (6656811967-303)
Lewmar Windlass - Pro-Sport 550G Free Fall 700W Horizontal Electric 12V Gypsy Only 6/7mm - DIN 766 (6656811967-303) is backordered and will ship as soon as it is back in stock.
Description
Description

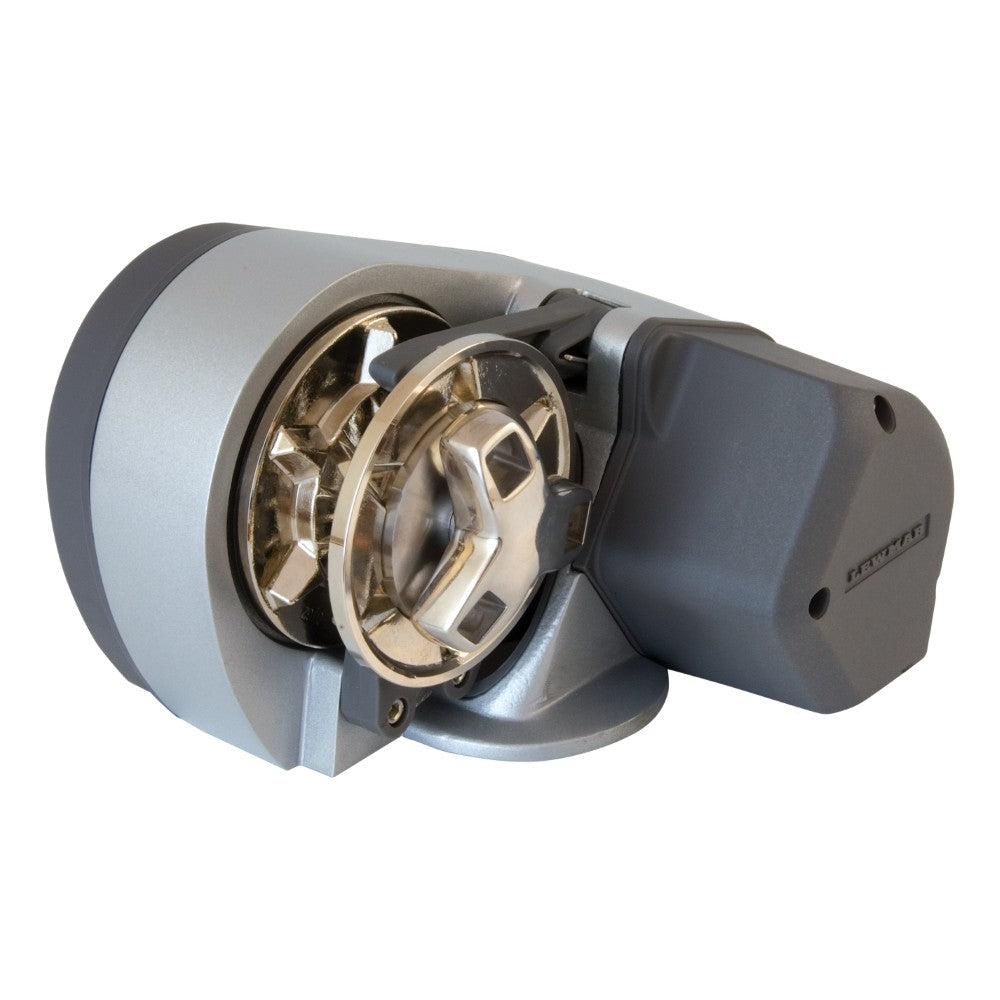

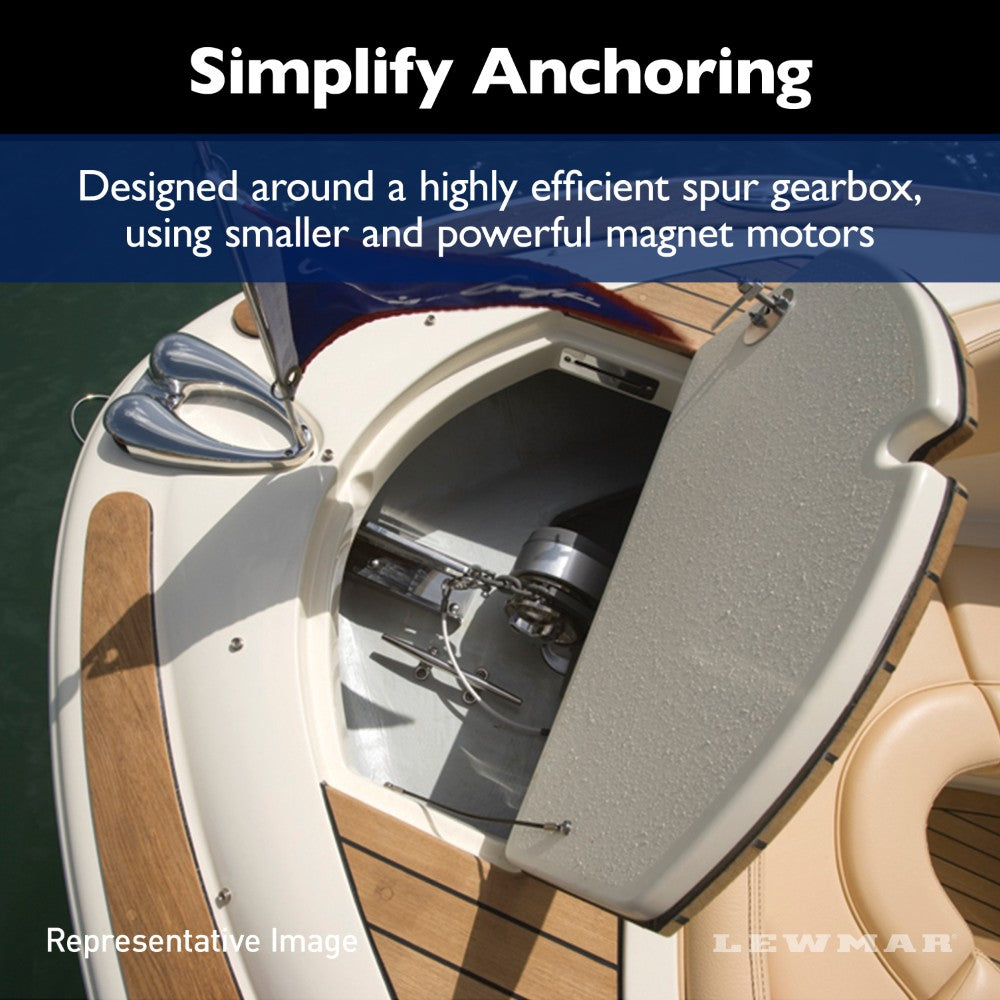

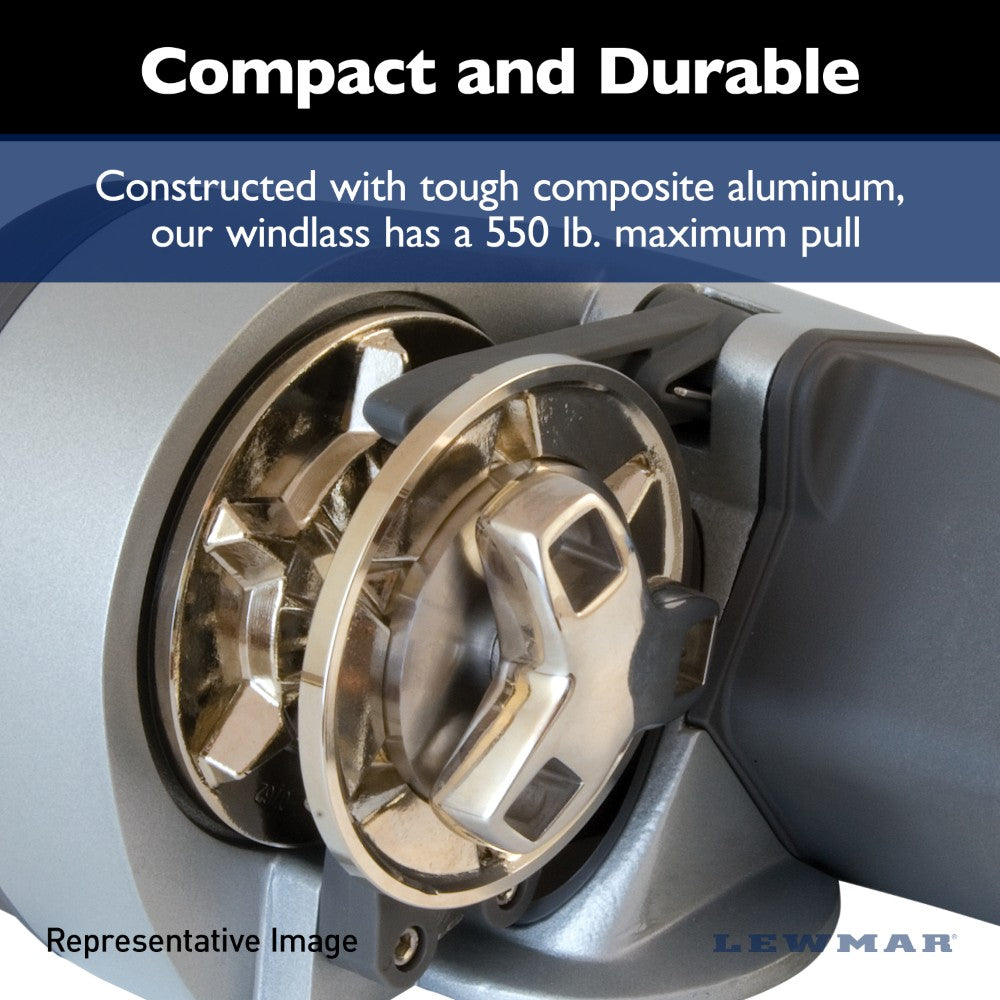

The Lewmar Pro-Sport Windlass is designed as an economical package for rope and chain applications, without compromise to quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors. Its rugged aluminium centre case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier.
Our Part # LEW6656811967303 | Mfr. Part # 6656811967-303

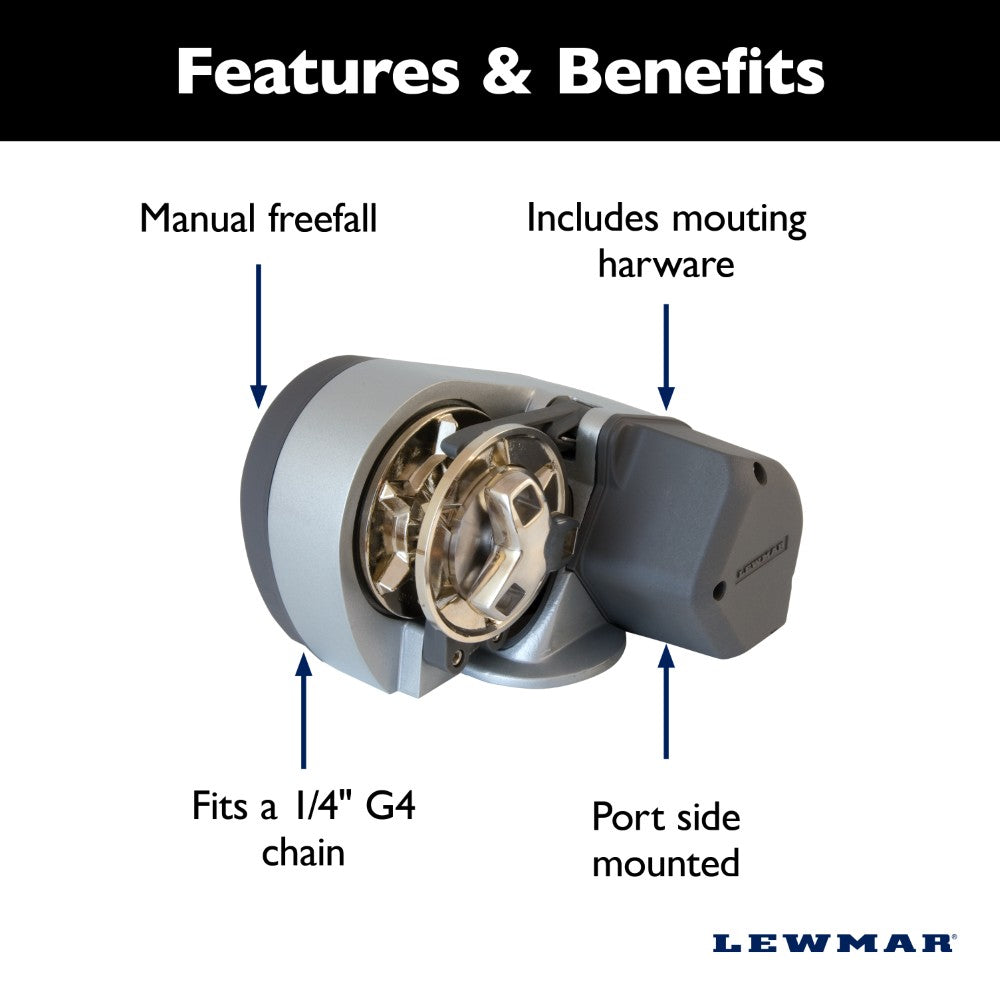

Features
Features
- Low power consumption / current draw.
- Dual direction powered operation.
- Convenient above deck installation.
- For boats up to 9m (28ft).
- Manual freefall.
- DIY ready.
Kit Contains:
- Windlass.
- Base Gasket Seal.
- Fast Mounting Studs.
- Installation Wrench.
- Contactor (68000939).
- Rocker Switch ((68000593).
- Circuit Breaker.
Sizing
Sizing
| Description | Imperial | Metric |
|---|---|---|
| Gypsy Number | 503 | |
| Size | 1/4 in. | 6.00 mm. |
| Chain Description | 1/4 in. ISO G4, 1/4 in. BBB | 7.00 mm DIN 766 |
| Rope Description | 1/2 in. 3-Strand and 8-plait | 12.00 - 14.00 mm. 3-Strand and 8-plait |
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Max Chain | 5/16 in. | 8.00 mm. |
| Motor Supply | 12.00 V. | |
| Motor Power | 700.00 W. | |
| Max Pull | 1000.00 lb. | 454.00 kg. |
| Working Load Limit | 250.00 lb. | 114.00 kg. |
| Max Line Speed | 105.00 ft./min. | 32.00 m./min. |
| Normal Current Draw | 50.00 amp. | |
| Circuit Breaker | 70.00 amp. | |
| Weight | 21.00 lb. | 9.50 kg. |
| Rope Description | 9/16-5/8 in. 3-strand and 8 plait | 14.00 -16.00 mm. 3-strand and 8 platt |
