Raymarine Type 1 Rotary Drive (12V)
Raymarine Type 1 Rotary Drive (12V) is backordered and will ship as soon as it is back in stock.
Description
Description

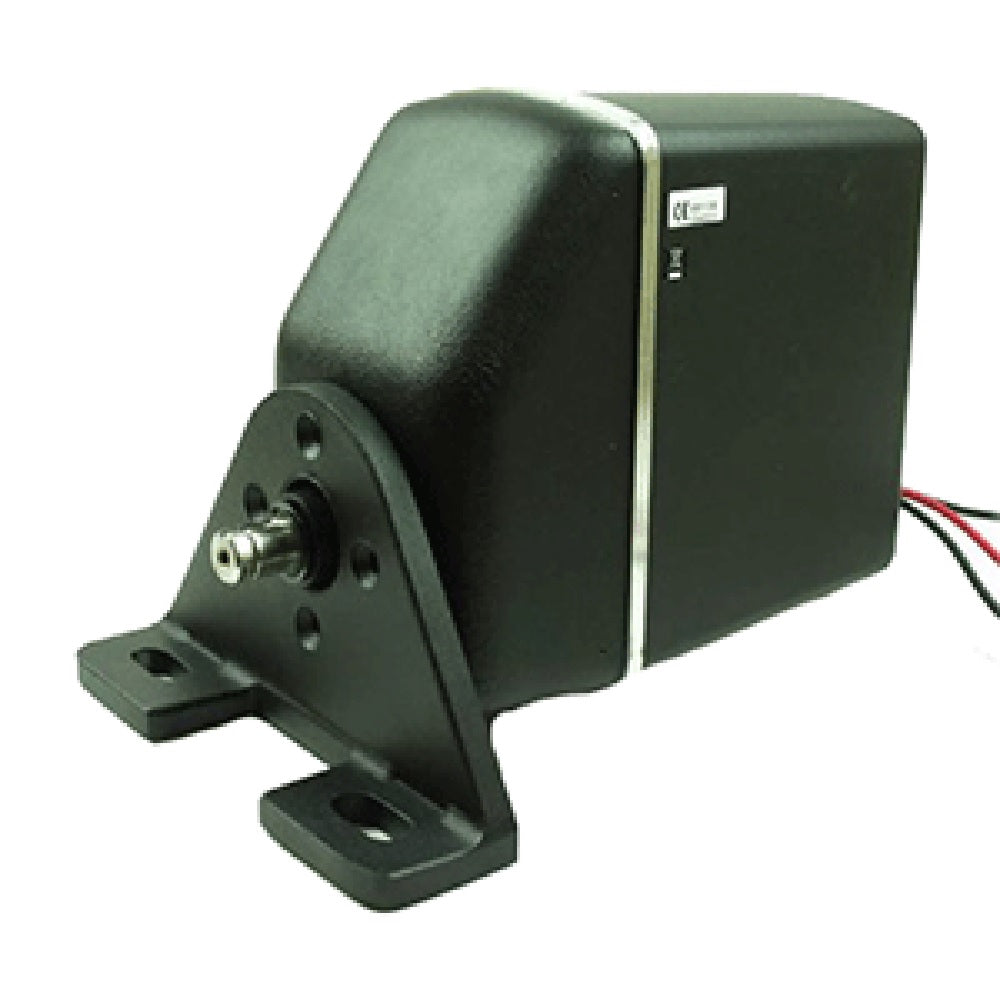

Rotary Drive Type 1 - 12V
The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.
Optional drive sprockets and modification to the steering chain may be required.
Our Part # RAY-M81135 | Raymarine Part # M81135
Features
Features
Features:
- Rotary Drive
- Type 1
- 12V
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Maximum Boat Displacement | 24255.00 lb. | 11000.00 kg. |
Peak Output Torque | 20.00 nm. | |
Maximum Shaft Speed | 33.00 rpm. | |
Recommended Hard-Over Time (no load) | 10 sec. | |
Power Consumption | 24-48w | |
Corepack Used | ACU-200 |
