A horizontal windlass mounts entirely above deck, is easier to install, and suits boats with small or irregular anchor lockers, while a vertical windlass hides its motor below deck and wraps the anchor rode 180 degrees around the gypsy for a more secure grip. Understanding how each design handles the anchor rode, how much locker fall it needs, and how much deck space it occupies will point you to the right Lewmar windlass for your boat.
Horizontal vs. vertical windlasses at a glance
| Feature | Horizontal windlass | Vertical windlass |
|---|---|---|
| Mounting | Entire unit above deck | Motor and gearbox below deck; gypsy on deck |
| Installation | Easier, all on-deck | More complex, requires below-deck access |
| Gypsy wrap | 90-degree wrap around the gypsy | 180-degree wrap for greater rode security |
| Minimum locker fall | 12" (304 mm) | 18" (457 mm) |
| Best suited for | Small or irregular anchor lockers; casual anchoring | Larger anchor lockers; frequent or heavy-weather anchoring |
| Deck space | Takes up more deck space | Frees up deck space; cleaner foredeck |
What is a horizontal windlass?
A horizontal windlass is a simple, proven design in which the entire unit — motor, gearbox, and gypsy — sits above deck with the gypsy axle running horizontally. As the anchor rode comes over the gypsy it makes a 90-degree turn and feeds directly down into the anchor locker, so a minimum fall of 12" (304 mm) is recommended for proper gravity-fed, self-tailing operation.
Because everything mounts on deck, installation is straightforward and there is no need to fit a motor inside the locker. That makes horizontal windlasses ideal for boats with small, shallow, or unusually shaped anchor lockers. The trade-offs are that the unit occupies noticeable deck space and the rode only wraps 90 degrees around the gypsy, which provides less grip than a vertical unit — fine for regular cruising and casual anchoring, but less suited to heavy-duty applications.
What is a vertical windlass?

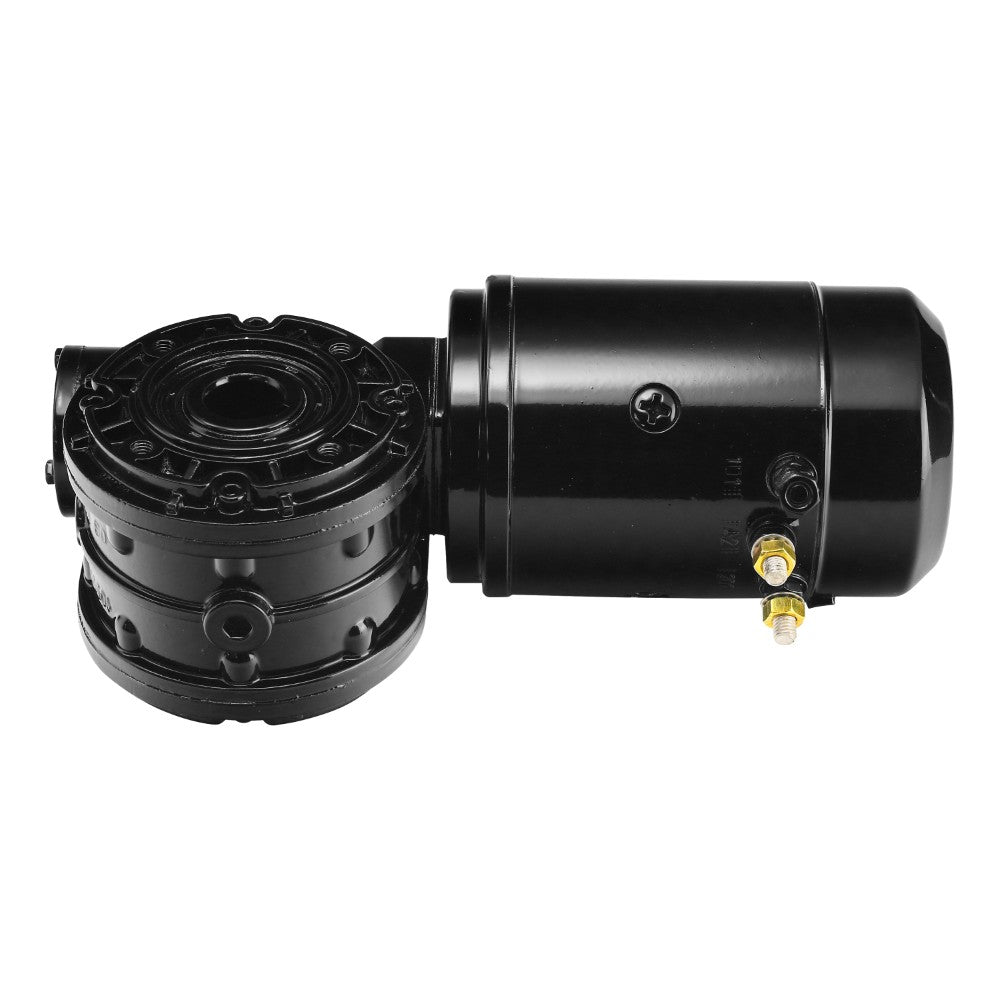

A vertical windlass places the gypsy on deck with its axle running vertically, while the motor and gearbox are mounted below deck inside the anchor locker. This keeps the foredeck clean and protects the drivetrain from the elements, but it does make installation and servicing more involved, since you need locker access and enough depth for the motor assembly.
On a vertical windlass the anchor rode wraps a full 180 degrees around the gypsy before turning down into the locker, giving the chain or rope significantly more contact and security under load. A minimum fall of 18" (457 mm) is recommended so gravity can properly self-tail the rode into the locker — with lightweight nylon line especially, insufficient fall can prevent the rode from feeding correctly.
Why does the gypsy wrap angle matter?
The gypsy is the chainwheel that grips your anchor rode, and the amount of rode wrapped around it determines how much pulling force transfers without slipping. A horizontal windlass gives you a 90-degree wrap; a vertical windlass doubles that to 180 degrees. The larger wrap of a vertical unit is why it holds the rode more securely, making it the better choice for anchoring in severe weather or for boats that anchor frequently in demanding conditions.
Whichever style you choose, the gypsy must be correctly matched to your chain size and rope diameter; a mismatched gypsy will skip or jam regardless of how powerful the windlass is.
Which windlass should I choose for my boat?
Start with your anchor locker. If it is small, shallow, or irregularly shaped, a horizontal windlass with its 12" (304 mm) minimum fall is usually the practical answer. If you have a deep locker with at least 18" (457 mm) of fall and room for a below-deck motor, a vertical windlass rewards you with a cleaner deck and a more secure 180-degree rode wrap.
Then consider how you anchor. Frequent anchoring, deep-water anchoring, or exposure to severe weather favors the security of a vertical unit; occasional, casual anchoring is well served by the simplicity of a horizontal one. Long term, also keep serviceability in mind — bearings, seals, and drive components are consumable parts on any windlass.
The complexity and structural differences between the two designs can result in completely different anchoring experiences, so before your final decision it is always worth consulting a technical specialist to confirm which type — and which size — is most suitable for your boat. The MAURIPRO Sailing team is happy to help you work through the options.
Frequently asked questions
What is the difference between a horizontal and a vertical windlass?
A horizontal windlass mounts entirely above deck and wraps the rode 90 degrees around the gypsy, while a vertical windlass hides the motor below deck and wraps the rode 180 degrees for greater security.
How much fall does a windlass need in the anchor locker?
Lewmar recommends a minimum fall of 12" (304 mm) for horizontal windlasses and 18" (457 mm) for vertical windlasses so gravity can self-tail the rode into the locker.
Are vertical windlasses better for heavy weather?
Yes. The 180-degree wrap around the gypsy grips the anchor rode more securely, which makes vertical windlasses better suited to frequent anchoring and severe weather conditions.
Is a horizontal windlass easier to install?
Yes. Because the entire unit sits above deck, a horizontal windlass avoids below-deck motor installation, making it simpler to fit — especially on boats with small or irregular anchor lockers.
Does a vertical windlass save deck space?
Yes. With the motor and gearbox mounted below deck, only the gypsy assembly shows above deck, leaving a cleaner and less cluttered foredeck than a horizontal unit.
Why won't my anchor rode feed into the locker properly?
The most common cause is insufficient fall below the windlass — lightweight nylon rode in particular needs the recommended drop so gravity can pull it into the locker as the gypsy self-tails.
