OrionMasthead Sloop1976

Orion 33 Parts

Lines here are cut for this rig

Rig
Masthead Sloop
I
44.29 ft
J
14.11 ft
P
39.86 ft
E
10.33 ft
Full specifications
Different version? Compare 5 related rigs
ModelIJPE
Orion 33 this page44.2914.1139.8610.33
Orion 3438.812.835.310.2
Orion 35441439.4210.43
Orion 35 SD441439.210.4
Orion 27-236.813.83112.3
Orion 5058.518.545215.33

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

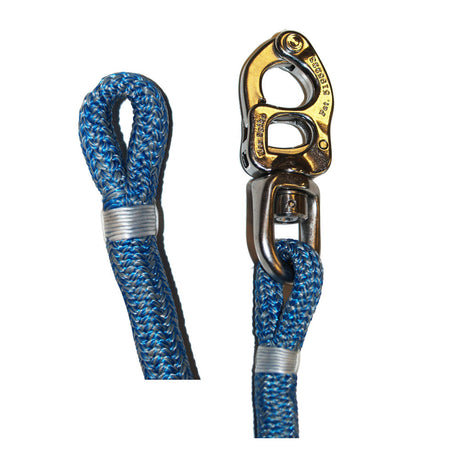

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    93 ft (28.3 m)
    Hardware
    Shackle
    List Price:  $266.53 USD
    $197.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    93 ft (28.3 m)
    Hardware
    Shackle
    List Price:  $712.89 USD
    $529.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    93 ft (28.3 m)
    Hardware
    Shackle
    List Price:  $792.50 USD
    $588.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    93 ft (28.3 m)
    Hardware
    Shackle
    List Price:  $975.37 USD
    $724.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $379.34 USD
    $281.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $525.09 USD
    $389.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $965.93 USD
    $717.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $1,154.58 USD
    $857.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $388.08 USD
    $288.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $545.88 USD
    $405.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $995.67 USD
    $739.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $1,195.87 USD
    $887.00 USD

    Available to order · 10 options

  • View moreAll Orion 33 halyards & sheets

Made up to the lengths computed from the Orion 33's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 16

  • Cruising

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (152 m)
    Hardware
    None listed
    $74.03 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Soft shackle
    List Price:  $254.02 USD
    $183.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Soft shackle
    List Price:  $269.75 USD
    $195.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Soft shackle
    List Price:  $369.85 USD
    $269.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $323.65 USD
    $240.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $788.48 USD
    $585.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (201 m)
    Hardware
    None listed
    List Price:  $326.90 USD
    $242.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (201 m)
    Hardware
    None listed
    List Price:  $457.80 USD
    $339.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $323.65 USD
    $240.00 USD

    Available to order · 5 options

  • Cruising

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Shackle
    List Price:  $336.71 USD
    $249.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $428.15 USD
    $317.00 USD

    Available to order · 4 options

  • Performance Cruise

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Shackle
    List Price:  $419.21 USD
    $311.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $859.93 USD
    $638.00 USD

    Available to order · 14 options

  • Club Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Shackle
    List Price:  $846.15 USD
    $628.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    66 ft (20.1 m)
    Hardware
    Shackle
    List Price:  $990.83 USD
    $735.00 USD

    Available to order · 8 options

  • Grand Prix Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    50 ft (15.2 m)
    Hardware
    Shackle
    List Price:  $946.24 USD
    $702.00 USD

    Available to order · 8 options

  • View moreAll Orion 33 halyards & sheets

Made up to the lengths computed from the Orion 33's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising7 lines Cruiser XTS Polyester Double Braid Up to 5 No $74.03
Performance Cruise7 lines DX Performance SK38 with polyester cover Up to 4 No $183.00
Club Racing7 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $195.00
Grand Prix Racing7 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $269.00

Rope names are quoted from each product's own description; prices are the lowest option for the Orion 33. Not sure which grade suits your sailing? Ask us.

Winches 2

Blocks 5

  • Harken Block

    Carbo 75mm Single

    Fiddle

    Sized for this boat · Mainsheet block A (4:1 fiddle)

    $120.95 USD

    Available to order

  • Harken Block

    Carbo 75mm Single

    Ratchet Fiddle - 150 Cam-Matic / Becket

    Sized for this boat · Mainsheet block B (4:1 fiddle)

    List Price:  $319.15 USD
    $280.95 USD

    Available to order

  • Schaefer Spring Loaded

    Lined Slide

    Stainless Steel - For: 1 1/4 in (31.0 mm) T-Track

    Sized for this boat · Genoa lead block

    $379.00 USD

    Available to order

  • Harken Block

    Carbo 57mm Single

    Fiddle

    Sized for this boat · Boom vang fiddle block (4:1)

    $68.95 USD

    Available to order

  • Harken Block

    Carbo 57mm Single

    Fiddle - 150 Cam-Matic / Becket

    Sized for this boat · Boom vang fiddle block with cam (4:1)

    $184.95 USD

    Available to order

  • View moreAll blocks

Traveler & genoa cars 4

  • Harken

    Harken Traveler Car 1 1/16 in (27.0 mm)

    Shackle - Purchase: 3:1

    Sized for this boat · Traveler car (Standard 3:1)

    List Price:  $353.00 USD
    $310.95 USD

    Available to order

  • Harken

    Harken ESP End Controls

    For Travelers: 1 1/16 in (27.0 mm) - Double Sheave and Cam Cleat (Pair)

    Sized for this boat · Traveler end controls

    List Price:  $588.05 USD
    $517.95 USD

    Available to order

  • Harken Genoa Car

    ESP Slider Pinstop

    For Tracks: 1 1/16 in (27.0 mm)

    Sized for this boat · Genoa lead car (pinstop slider)

    List Price:  $341.00 USD
    $299.95 USD

    Available to order

  • Harken Block

    57mm Aluminum ESP Footblock

    Sized for this boat · Genoa sheet footblock

    List Price:  $145.25 USD
    $109.00 USD

    Available to order

  • View moreAll travelers, tracks & genoa cars

Tracks are sold by length and are not included. Ask us for the track to suit your boat.

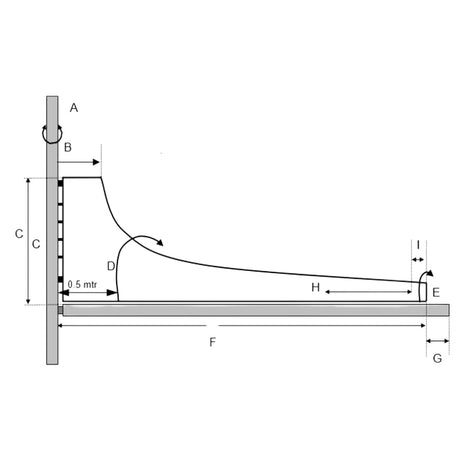

Mainsail covers 2

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderOrion
DesignerVan de Stadt
Years built1976
RigMasthead Sloop
HullFin w/spade rudder
ConstructionAlum., Wood or GRP
Length overall32.8 ft 10 m
Waterline length27.2 ft 8.3 m
Beam10.8 ft 3.3 m
Displacement11,751 lb 5,330 kg
Ballast5,732 lb 2,600 kg
I · foretriangle height44.29 ft 13.5 m
J · foretriangle base14.11 ft 4.3 m
P · mainsail luff39.86 ft 12.15 m
E · mainsail foot10.33 ft 3.15 m
Forestay length14.1 ft 4.3 m
100% jib area312.5 sq ft 29 m²
Mainsail area222.3 sq ft 20.7 m²
Jib + mainsail area534.8 sq ft 49.7 m²
Cruising spinnaker area531.2 sq ft 49.4 m²

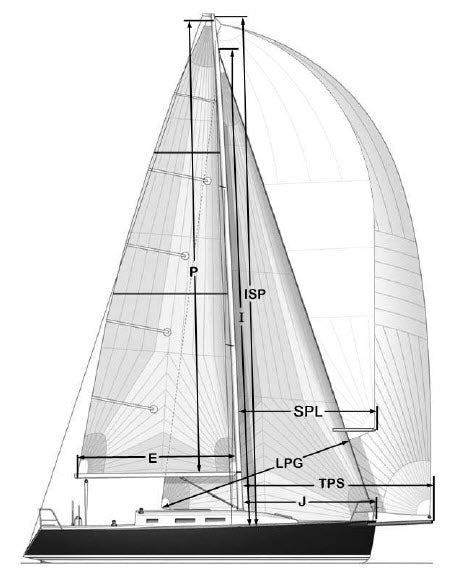

I 44.3 J 14.1 E 10.3 P 39.9
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Orion 33

Other Orion models

Questions

What Orion 33 parts does MAURIPRO carry?

The Orion 33 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Orion 33?

Halyards and sheets are made up to lengths computed from the Orion 33's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Orion 33 rig dimensions?

Our Orion 33 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
