OrionSloop

Orion 35 SD Parts

Lines here are cut for this rig

Rig
Sloop
I
44 ft
J
14 ft
P
39.2 ft
E
10.4 ft
Full specifications
Different version? Compare 5 related rigs
ModelIJPE
Orion 35 SD this page441439.210.4
Orion 35441439.4210.43
Orion 3438.812.835.310.2
Orion 3344.2914.1139.8610.33
Orion 27-236.813.83112.3
Orion 5058.518.545215.33

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

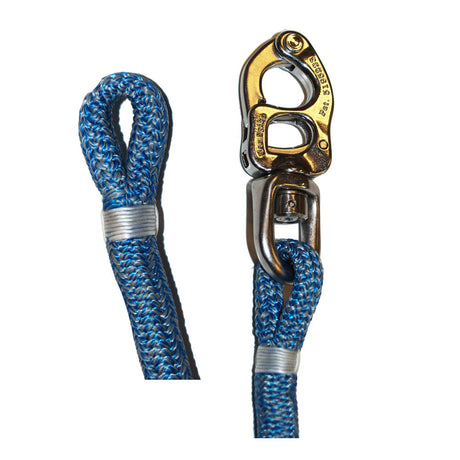

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    90 ft (27.4 m)
    Hardware
    Shackle
    List Price:  $262.15 USD
    $194.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    90 ft (27.4 m)
    Hardware
    Shackle
    List Price:  $704.39 USD
    $522.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    90 ft (27.4 m)
    Hardware
    Shackle
    List Price:  $783.09 USD
    $581.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    90 ft (27.4 m)
    Hardware
    Shackle
    List Price:  $960.19 USD
    $712.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $567.65 USD
    $421.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $525.09 USD
    $389.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $965.93 USD
    $717.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    96 ft (29.3 m)
    Hardware
    Shackle
    List Price:  $1,154.58 USD
    $857.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $388.08 USD
    $288.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $545.88 USD
    $405.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $995.67 USD
    $739.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    102 ft (31.1 m)
    Hardware
    Shackle
    List Price:  $1,195.87 USD
    $887.00 USD

    Available to order · 10 options

  • View moreAll Orion 35 SD halyards & sheets

Made up to the lengths computed from the Orion 35 SD's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 16

  • Cruising

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (162 m)
    Hardware
    None listed
    $77.28 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Soft shackle
    List Price:  $262.52 USD
    $189.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Soft shackle
    List Price:  $279.16 USD
    $202.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Soft shackle
    List Price:  $385.02 USD
    $280.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $329.47 USD
    $244.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $799.81 USD
    $593.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (213 m)
    Hardware
    None listed
    List Price:  $339.44 USD
    $252.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (213 m)
    Hardware
    None listed
    List Price:  $478.04 USD
    $354.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $329.47 USD
    $244.00 USD

    Available to order · 5 options

  • Cruising

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Shackle
    List Price:  $341.08 USD
    $253.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $439.47 USD
    $326.00 USD

    Available to order · 4 options

  • Performance Cruise

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Shackle
    List Price:  $427.70 USD
    $317.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $872.47 USD
    $647.00 USD

    Available to order · 14 options

  • Club Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Shackle
    List Price:  $855.56 USD
    $635.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    70 ft (21.3 m)
    Hardware
    Shackle
    List Price:  $1,011.07 USD
    $750.00 USD

    Available to order · 8 options

  • Grand Prix Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    53 ft (16.2 m)
    Hardware
    Shackle
    List Price:  $961.43 USD
    $713.00 USD

    Available to order · 8 options

  • View moreAll Orion 35 SD halyards & sheets

Made up to the lengths computed from the Orion 35 SD's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising7 lines Cruiser XTS Polyester Double Braid Up to 5 No $77.28
Performance Cruise7 lines DX Performance SK38 with polyester cover Up to 4 No $189.00
Club Racing7 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $202.00
Grand Prix Racing7 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $280.00

Rope names are quoted from each product's own description; prices are the lowest option for the Orion 35 SD. Not sure which grade suits your sailing? Ask us.

Winches 2

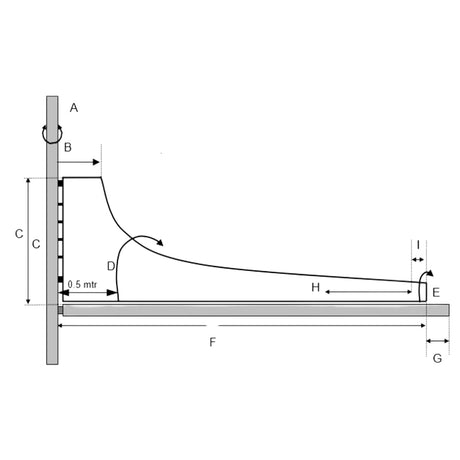

Mainsail covers 2

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderOrion
RigSloop
I · foretriangle height44 ft 13.41 m
J · foretriangle base14 ft 4.27 m
P · mainsail luff39.2 ft 11.95 m
E · mainsail foot10.4 ft 3.17 m
Forestay length14 ft 4.3 m
100% jib area308 sq ft 28.6 m²
Mainsail area220.1 sq ft 20.5 m²
Jib + mainsail area528.1 sq ft 49.1 m²
Cruising spinnaker area523.6 sq ft 48.7 m²

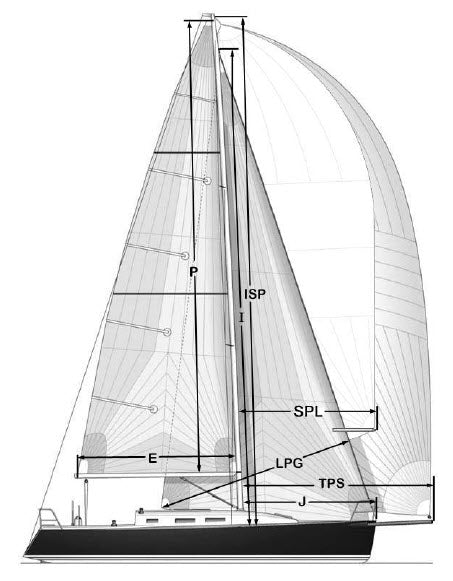

I 44.0 J 14.0 E 10.4 P 39.2
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Orion 35 SD

Other Orion models

Questions

What Orion 35 SD parts does MAURIPRO carry?

The Orion 35 SD page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Orion 35 SD?

Halyards and sheets are made up to lengths computed from the Orion 35 SD's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Orion 35 SD rig dimensions?

Our Orion 35 SD Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
