OrionStaysail Ketch1983-1987

Orion 50 Parts

Lines here are cut for this rig

Rig
Staysail Ketch
I
58.5 ft
J
18.54 ft
P
52 ft
E
15.33 ft
Full specifications
Different version? Compare 5 related rigs
ModelIJPE
Orion 50 this page58.518.545215.33
Orion 35441439.4210.43
Orion 35 SD441439.210.4
Orion 3438.812.835.310.2
Orion 3344.2914.1139.8610.33
Orion 27-236.813.83112.3

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

Halyards 11

  • Cruising

    Mainsail Halyard

    Diameter
    14 mm (9/16 in)
    Length
    120 ft (36.6 m)
    Hardware
    Shackle
    List Price:  $507.35 USD
    $376.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    120 ft (36.6 m)
    Hardware
    Shackle
    List Price:  $1,006.00 USD
    $746.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    120 ft (36.6 m)
    Hardware
    Shackle
    List Price:  $1,103.98 USD
    $819.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    120 ft (36.6 m)
    Hardware
    Shackle
    List Price:  $1,464.15 USD
    $1,087.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    14 mm (9/16 in)
    Length
    129 ft (39.3 m)
    Hardware
    Shackle
    List Price:  $731.72 USD
    $543.00 USD

    Available to order · 5 options

  • Club Racing

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    129 ft (39.3 m)
    Hardware
    Shackle
    List Price:  $1,273.09 USD
    $945.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    129 ft (39.3 m)
    Hardware
    Shackle
    List Price:  $1,659.74 USD
    $1,232.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $649.17 USD
    $481.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $909.15 USD
    $674.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $1,309.24 USD
    $972.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    135 ft (41.1 m)
    Hardware
    Shackle
    List Price:  $1,713.56 USD
    $1,272.00 USD

    Available to order · 10 options

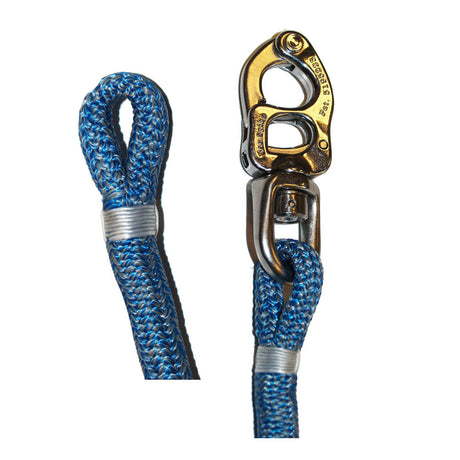

  • View moreAll Orion 50 halyards & sheets

Made up to the lengths computed from the Orion 50's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 15

  • Cruising

    Genoa Sheet

    Diameter
    14 mm (9/16 in)
    Length
    75 ft (229 m)
    Hardware
    None listed
    List Price:  $242.17 USD
    $179.00 USD

    Available to order · 5 options

  • Club Racing

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    75 ft (22.9 m)
    Hardware
    Soft shackle
    List Price:  $447.70 USD
    $321.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    75 ft (22.9 m)
    Hardware
    Soft shackle
    List Price:  $675.46 USD
    $490.00 USD

    Available to order · 8 options

  • Cruising

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $561.97 USD
    $417.00 USD

    Available to order · 5 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $1,045.00 USD
    $775.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (302 m)
    Hardware
    None listed
    List Price:  $540.35 USD
    $401.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (302 m)
    Hardware
    None listed
    List Price:  $838.73 USD
    $622.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $561.97 USD
    $417.00 USD

    Available to order · 5 options

  • Cruising

    Symmetrical Spinnaker Guy

    Diameter
    14 mm (9/16 in)
    Length
    75 ft (22.9 m)
    Hardware
    Shackle
    List Price:  $616.13 USD
    $457.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $748.66 USD
    $555.00 USD

    Available to order · 4 options

  • Performance Cruise

    Symmetrical Spinnaker Guy

    Diameter
    14 mm (9/16 in)
    Length
    75 ft (22.9 m)
    Hardware
    Shackle
    List Price:  $706.28 USD
    $524.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $1,134.89 USD
    $842.00 USD

    Available to order · 14 options

  • Club Racing

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    75 ft (22.9 m)
    Hardware
    Shackle
    List Price:  $1,081.76 USD
    $803.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    99 ft (30.2 m)
    Hardware
    Shackle
    List Price:  $1,433.28 USD
    $1,064.00 USD

    Available to order · 8 options

  • Grand Prix Racing

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    75 ft (22.9 m)
    Hardware
    Shackle
    List Price:  $1,309.52 USD
    $972.00 USD

    Available to order · 8 options

  • View moreAll Orion 50 halyards & sheets

Made up to the lengths computed from the Orion 50's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising7 lines Cruiser XTS Polyester Double Braid Up to 5 No $179.00
Performance Cruise5 lines DX Performance SK38 with polyester cover Up to 4 No $524.00
Club Racing7 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $321.00
Grand Prix Racing7 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $490.00

Rope names are quoted from each product's own description; prices are the lowest option for the Orion 50. Not sure which grade suits your sailing? Ask us.

Winches 2

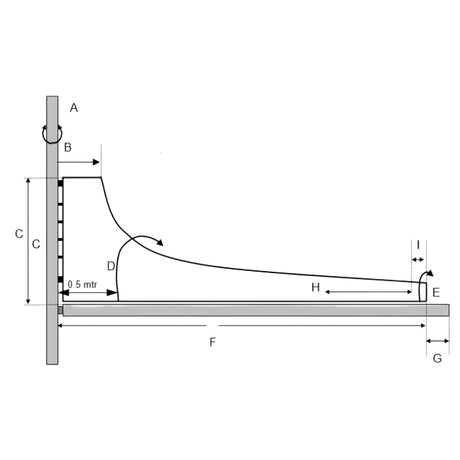

Mainsail covers 3

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderOrion
DesignerGary Mull
Years built1983-1987
Number built7
RigStaysail Ketch
HullFin with rudder on skeg
ConstructionFG
Length overall49.5 ft 15.1 m
Waterline length42.5 ft 13 m
Beam14.5 ft 4.4 m
Displacement36,600 lb 16,601 kg
Ballast14,000 lb 6,350 kg
I · foretriangle height58.5 ft 17.83 m
J · foretriangle base18.54 ft 5.65 m
P · mainsail luff52 ft 15.85 m
E · mainsail foot15.33 ft 4.67 m
Forestay length18.5 ft 5.7 m
100% jib area542.3 sq ft 50.4 m²
Mainsail area430.5 sq ft 40 m²
Jib + mainsail area972.8 sq ft 90.4 m²
Cruising spinnaker area921.9 sq ft 85.7 m²

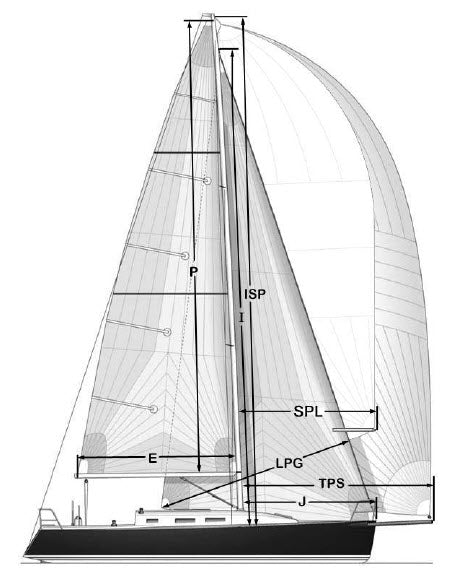

I 58.5 J 18.5 E 15.3 P 52.0
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic. The mizzen is not drawn.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the Orion 50

Other Orion models

Questions

What Orion 50 parts does MAURIPRO carry?

The Orion 50 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my Orion 50?

Halyards and sheets are made up to lengths computed from the Orion 50's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the Orion 50 rig dimensions?

Our Orion 50 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
