Imtra Converters & Reducers - Power Conditioner - 10.5-16VDC In...
DESCRIPTION
DESCRIPTION

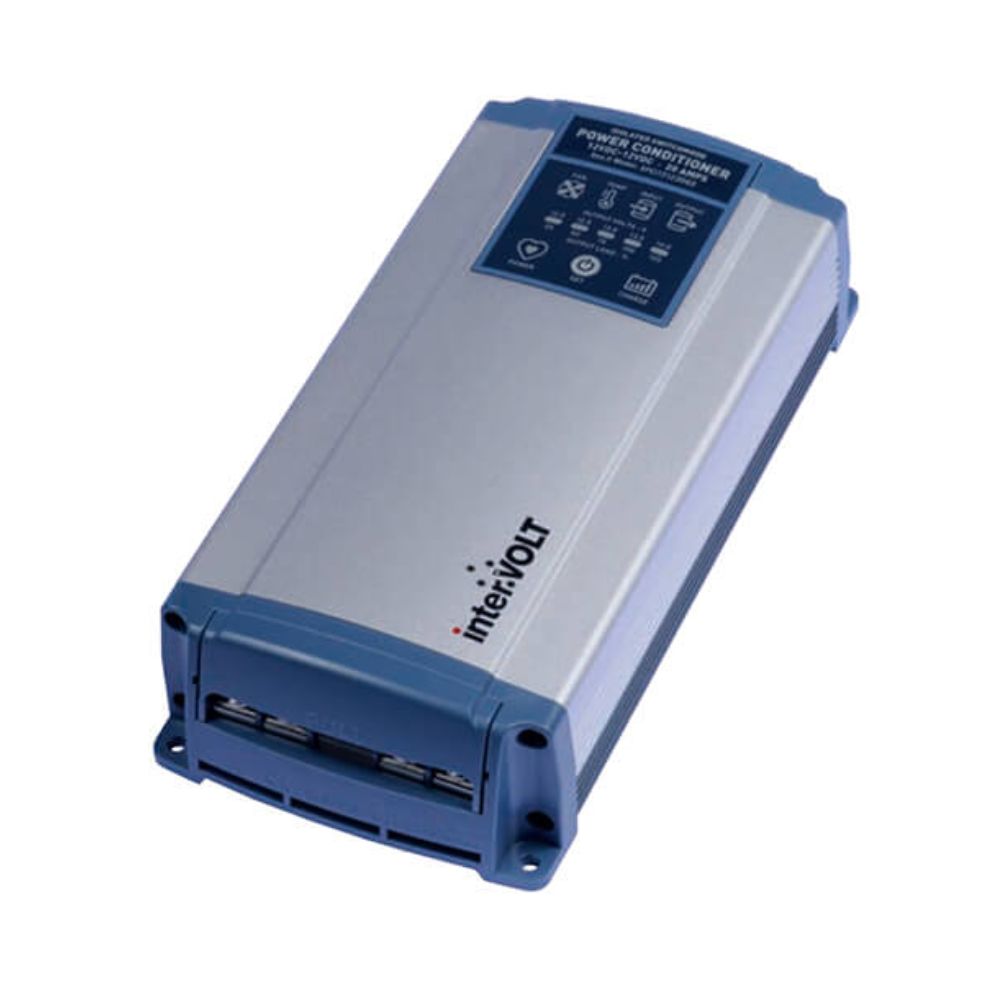

The InterVOLT SPCi Maxi Series Gen II power conditioners are cutting-edge products known for resolving many of the issues associated with DC power in vehicles and vessels. They are, in fact, a converter, stabilizer, isolator, and regulator all built into a single innovative package.
These devices feature galvanic isolation with no common connectivity between the input and output via positive or negative conductors. This ensures peace of mind when connecting sensitive and often expensive, high-end electronic equipment to the output. Other benefits include the elimination of line interference, greater protection, better regulation, and improved performance.
The GEN II unit features digital-over-analogue topology, allowing the installer or operator to control and monitor various functions while providing valuable feedback on the status of the connected load.
The GEN II units are more compact due to multi-speed fan cooling and, as a result, no longer rely on convection for cooling.
Our Part # IMTILSPCI121220G2 | Mfr. Part # ILSPCI121220G2
FEATURES
FEATURES
- Accepts 10.5-16VDC input.
- Delivers stable 12-14VDC output.
- High 20 Amp current capacity.
- Ensures clean power for electronics.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Voltage | 12V | 12V |
| Max Load | 2000.0 lb | 907.2 kg |
| Line Speed (no load) | 30.0 ft/min | 9.1 m/min |
| Cable Length | 20.0 ft | 6.1 m |
| Cable Diameter | 3/16 in | 4.8 mm |
| Drum Diameter | 1 1/4 in | 31.8 mm |
| Weight | 22.0 lb | 10.0 kg |
