DESCRIPTION
DESCRIPTION

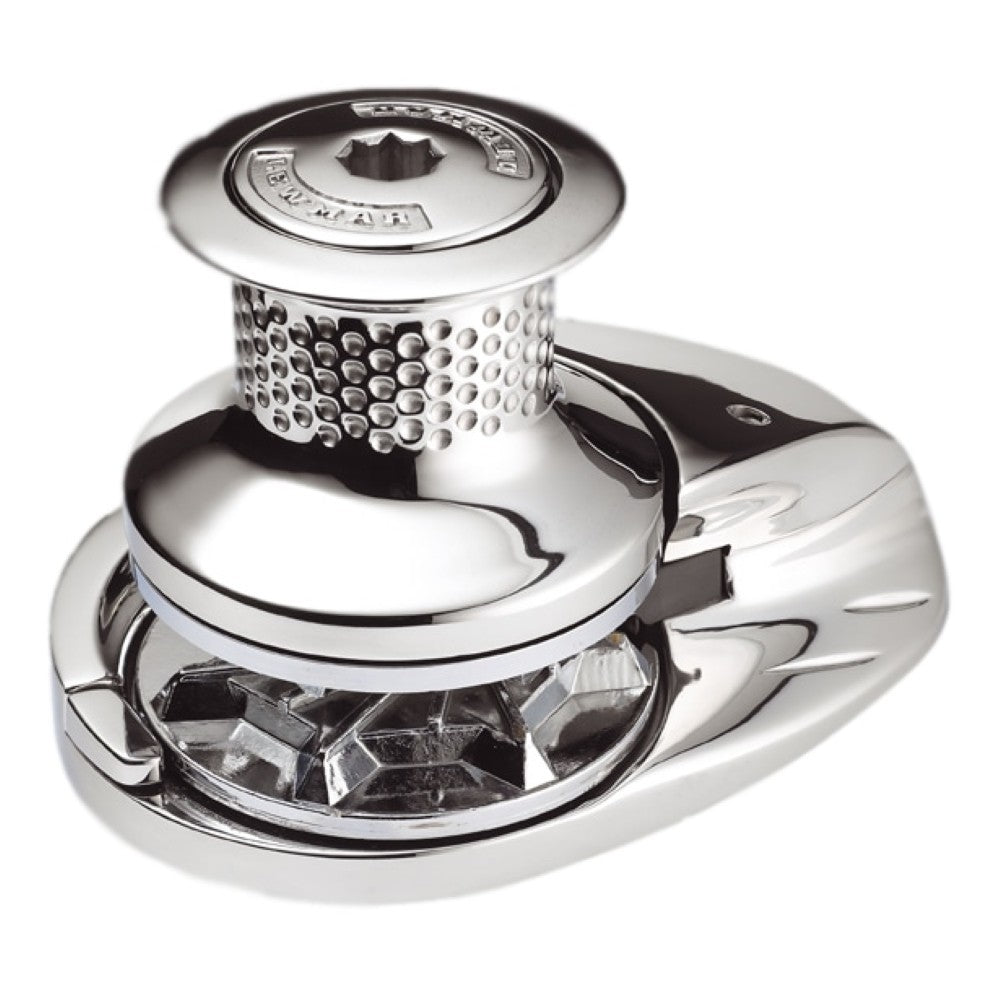

The Lewmar Windlass - V3 w/ Fast Fit 1000W Vertical Electric 12V Gypsy + Drum 8mm - DIN 766 #6672221198-139 is perfect for power and sail boats up to 13m (44ft), providing efficient anchoring with ease. Its innovative FastFit™ motor gearbox allows for straightforward installation by just one person, making it a reliable companion on the water. Crafted with all stainless steel, this lewmar windlass ensures durability and performance.
The windlass is made from high-quality stainless steel to withstand harsh marine environments. Designed specifically for 8mm DIN 766 chains, it ensures seamless compatibility with a wide range of vessels. The 1000W, 12V electric motor provides powerful and reliable performance, making it an essential piece of sailing gear.
Our Part # LEW6672221198139 | Mfr. Part # 6672221198-139
FEATURES
FEATURES
- Rope-chain gypsy.
- Manual chain release (Free Fall).
- Cone clutch for smooth, easy control.
- W.A.R.P Drum.
- Fall safe anchor lock.
- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
- FastFit™ motor gearbox for solo installation
- All stainless steel construction for longevity
- Compatible with boats up to 13m (44ft)
- Rotatable and fixable motor/gearbox in 45° increments
SIZING
SIZING
| Description | Metric | Imperial |
|---|---|---|
| Gypsy Number | 001 | 001 |
| Size | 8.00 mm. | 1/3 in. |
| Chain Description | 8.00 mm. DIN 766, 8.00 mm. ISO 4565 | 5/16 in. G40 |
| Rope Description | 12.00 - 16.00 mm. 3-Strand and 8-plait (5/8 only) | 1/2 - 5/8 in. 3-Strand and 8-plait (5/8 only) |
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Motor Power | 1000 W. | 1000 W. |
| Max Pull | 1962.00 lb. | 890.00 kg. |
| Working Load Limit | 473.00 lb. | 215.00 kg. |
| Max Line Speed | 92.00 ft./min. | 28.00 m./min. |
| Normal Current Draw | 85.00 amp. | 85.00 amp. |
| Circuit Breaker | 110.00 amp. | 110.00 amp. |
| Approx Weight Gypsy Only | 47.00 lb. | 21.50 kg. |
| Approx Weight Gypsy/Drum | 54.00 lb. | 24.50 kg. |
