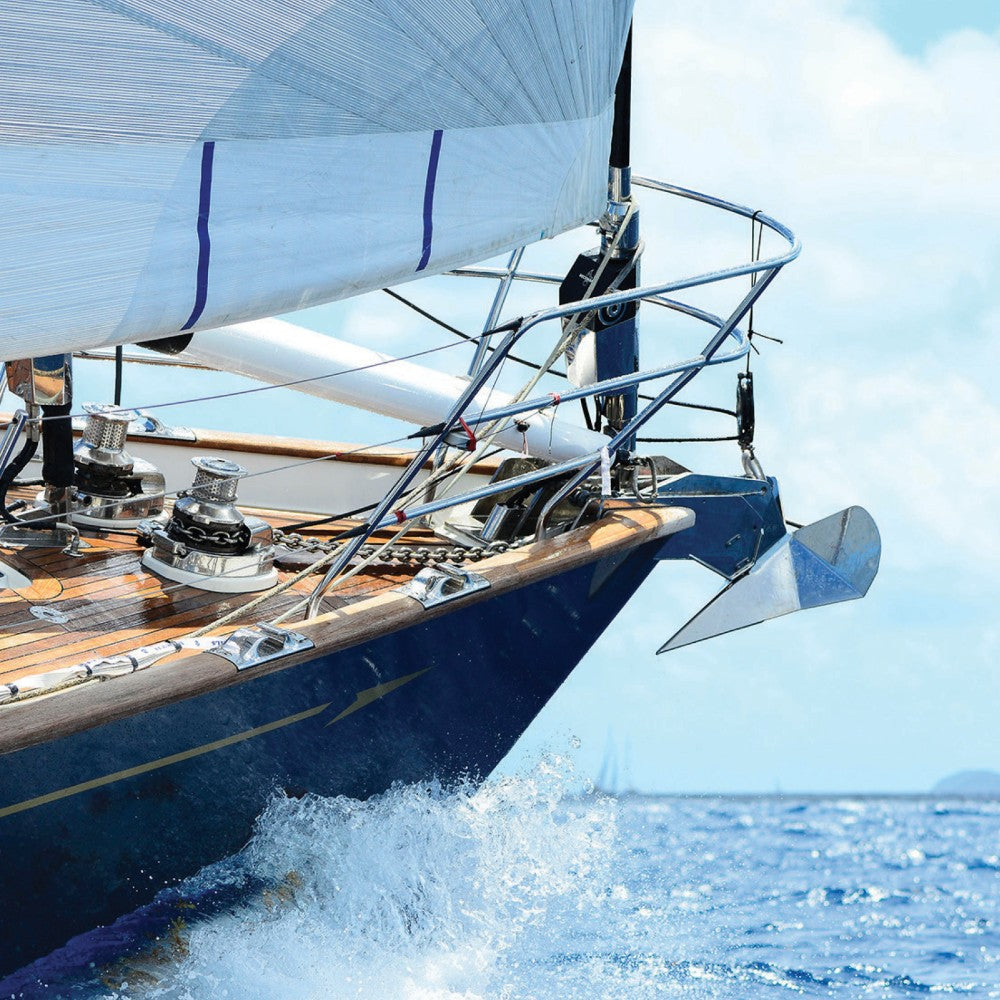

A windlass anchor system is a powered or manual winch, mounted at the bow, that raises and lowers your anchor and rode so you don’t have to haul heavy ground tackle by hand. This guide explains how a windlass works, the difference between vertical and horizontal models, the components that complete the system, and how to choose the right unit for your boat.
Windlass anchor systems at a glance
| Feature | Vertical windlass | Horizontal windlass | Manual windlass |
|---|---|---|---|
| Gypsy axis | Vertical — motor and gearbox below deck | Horizontal — entire unit above deck | Either; operated by handle |
| Deck footprint | Compact, low profile | Larger, but simpler to install | Compact |
| Chain grip | Rode wraps the gypsy about 180° | Rode wraps the gypsy about 90° | Depends on design |
| Best for | Boats with anchor-locker depth and a clean foredeck look | Boats with shallow lockers; strong pulling capacity | Small boats and backup use |
How does a windlass anchor system work?
At the heart of every windlass is the gypsy (also called a wildcat) — a shaped chain wheel whose pockets grip each link of the anchor chain. An electric motor (or a manual handle) turns the gypsy through a gearbox, paying the rode out under control or hauling it back aboard and dropping it into the chain locker. Most electric units are operated from foot switches on the foredeck, a handheld remote, or a helm control, and include a clutch so the anchor can be free-fall deployed or recovered by hand in an emergency.
Windlasses that include a drum (capstan) alongside the gypsy can also haul rope — useful for kedging, docklines, or a rope-and-chain rode. Gypsy-only models keep the footprint smaller when you run all-chain.
Vertical vs. horizontal windlass: which should I choose?
A vertical windlass mounts its gypsy on a vertical axis with the motor and gearbox hidden below deck. It keeps the foredeck clean, and the rode wraps roughly 180° around the gypsy for a very secure grip — but it needs enough anchor-locker depth below the deck for the motor and for the chain to fall freely.
A horizontal windlass carries the gypsy on a horizontal axis with the whole unit above deck. Installation is simpler, it suits boats with shallow lockers, and it is often preferred for its strong pulling capacity. The trade-off is a larger deck footprint and a chain wrap of only about 90°, which makes correct chain-to-gypsy alignment especially important.
How do I size a windlass for my boat?
Two rules drive the choice. First, the gypsy must exactly match your chain — both the size (common sizes run 1/4″, 5/16″, 3/8″, and 1/2″) and the grade/standard (for example G4 high-test or BBB). A mismatched gypsy will jump and skip under load. Second, choose motor power for your ground tackle: a common guideline is a maximum pull of at least three times the combined weight of your anchor and rode. Typical electric windlasses range from around 500W for small cruisers up to 1700W and more for larger yachts, in 12V or 24V versions to match your ship’s electrical system.
Remember to size the wiring, circuit breaker, and battery capacity for the motor’s draw — a windlass pulls high current for short bursts, so voltage drop over a long cable run matters.
What components make up a complete windlass anchor system?
The windlass is only one part of the ground tackle. A complete system includes:
- Anchor — grips the seabed and holds the boat; the best type depends on bottom conditions.
- Anchor chain — adds weight and durability so the anchor sets and holds securely, and resists chafe near the bottom.
- Anchor line (rode) — rope used alone or spliced to chain when a full-chain rode isn’t required.
- Shackles & swivels — connect anchor, chain, and line securely while letting the anchor rotate freely.
- Bow roller — guides the anchor and rode smoothly over the stem and protects the hull.
- Chain stopper — locks the chain when the anchor is stowed or set, taking the load off the windlass.
- Cleats, bollards & chocks — deck fittings for securing anchor and mooring lines.
- Snubber (shock absorber) — a stretchy line hooked to the chain that absorbs surge loads, reducing strain on the rode and the boat.
Why use a windlass instead of hauling by hand?
A windlass reduces the physical strain of raising and lowering heavy ground tackle, prevents sudden anchor drops and the injuries they can cause, and gives you precise control over how much rode you deploy — so you can set an accurate scope and anchor more securely. It also makes re-anchoring painless, which encourages good anchoring practice instead of “good enough” anchoring.
Frequently asked questions
What is the gypsy on a windlass?
The gypsy (or wildcat) is the pocketed chain wheel that grips each link of the anchor chain as the windlass turns. It must exactly match your chain’s size and grade.
Should the windlass hold the boat at anchor?
No. Once the anchor is set, transfer the load to a chain stopper, cleat, or snubber. The windlass is a hauling machine, not a mooring point, and constant load shortens its life.
Can a windlass handle both rope and chain?
Yes. Many gypsies accept a spliced rope-and-chain rode, and models with a drum (capstan) can haul plain rope separately from the chain gypsy.
What is the difference between a gypsy-only and a gypsy-plus-drum windlass?
A gypsy-only unit handles just the anchor rode and keeps the smallest footprint. A gypsy-plus-drum unit adds an independent rope drum for warps, kedges, and docklines.
How much pulling power does my windlass need?
A common guideline is a maximum pull of at least three times the total weight of your anchor plus rode. When in doubt, size up — extra capacity means less strain and longer motor life.
Do I choose a 12V or 24V windlass?
Match the windlass voltage to your boat’s electrical system. Most sailboats run 12V; larger yachts with 24V systems should choose the 24V version of the same model.
