Choosing electrical gear for a cruising sailboat comes down to four things working together: a battery charger and a solar or shore-power source sized to your house bank, circuit breakers or fuses protecting every circuit, and a battery switch that isolates your start battery from your house bank when you need to. Get those four right and everything else on the boat's DC and AC side — inverters, wiring, lighting — plugs into a safe, protected system.
This category is built for the mid-size cruiser and performance-cruiser sailor — someone running a 30–45 ft boat who needs a house bank that survives a week on the hook, an engine that starts reliably every time, and wiring that won't start a fire. Whether you're wiring a bare boat from scratch or replacing one failing component in an existing system, the sections below cover how each piece fits into the whole.
Electrical at a glance
| Section | What you'll find |
|---|---|
| Battery Management | Chargers, inverter/chargers, switches and isolators that charge and distribute power from your battery banks. |
| Circuit Breakers | Resettable overcurrent protection for panels, pumps, windlasses and other high-draw circuits. |
| Fuses | Sacrificial overcurrent protection — strip fuses, fuse holders and relays for circuits close to the battery. |
| Solar Power | Solar panels, MPPT/PWM charge controllers and connectors that keep the house bank topped up at anchor. |
| Shore Power | Dock cordsets, inlets and adapters that bring AC power aboard for chargers and inverter/chargers. |
| Lighting | Cabin, deck and navigation lighting wired off the same protected DC circuits as the rest of the system. |
What ties a sailboat's electrical system together?
Every circuit on the boat starts at a battery bank, runs through overcurrent protection sized to the wire it's on, and ends at the load — a light, a pump, a chartplotter. The wiring standard most marine electrical brands publish to, ABYC E-11, requires that every ungrounded conductor have a fuse or breaker within 7 inches of its power source unless it runs through a sheath or conduit, which is why breaker panels and fuse blocks live close to the battery, not just at the far end near the accessory. Match that structure — source, protection, load — on every circuit you add, and the rest of this category is really about picking the right size and type of each piece.
How do I size a battery charger for my house bank?

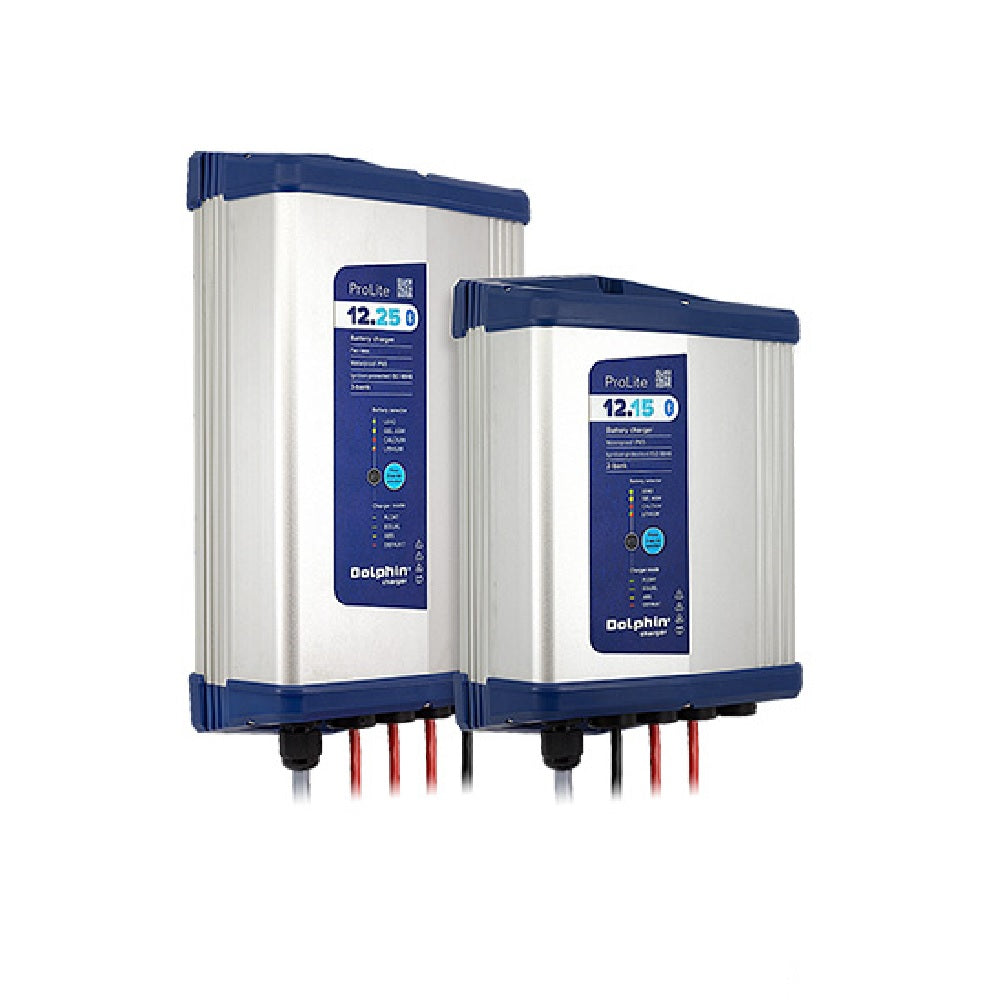

Match the charger's output amperage and the number of independent bank outputs to how your battery banks are actually organized, not just to the boat's total amp-hours. A charger like the Scandvik Dolphin ProLite 12/25 puts out 25A across three separate outputs, so it can charge a start battery and two house banks at once — and each output runs its own charge profile, selectable from nine programs covering lead-acid, GEL, AGM, calcium and lithium batteries, which matters if your start and house banks use different chemistries that shouldn't be charged identically.
What's the difference between a battery charger and an inverter/charger?
A battery charger only converts AC shore or generator power into DC to charge batteries; an inverter/charger does that and also converts DC battery power back into AC so you can run standard outlets when you're off the dock. The Samlex EVO-3012 is a 3,000-watt continuous pure sine inverter/charger that takes 12VDC in and delivers 120VAC out, with a 130A four-stage charger and a 70A transfer relay built into the same box — when shore or generator power is present it charges the batteries and passes AC straight through, and when it's lost the transfer relay switches to battery-fed inverter power automatically.
MPPT or PWM: which solar charge controller do I need?
An MPPT controller is worth the extra cost on almost any cruising boat's solar setup, because it lets you wire a higher-voltage panel string and still deliver full current to a lower-voltage battery bank — something a PWM controller can't do, since PWM simply pulls the panel's voltage down to match the battery and wastes the difference. Victron's own comparison of the two technologies puts MPPT's real-world power harvest at 10–40% higher than PWM, with the biggest gains in cold or very hot panel temperatures and low-light conditions. The Victron SmartSolar MPPT 250/70-Tr VE.Can accepts up to 250V from the panel side, delivers up to 70A to the battery, and auto-detects 12V, 24V or 48V battery banks.
How do circuit breakers and fuses protect my boat's wiring?
Both exist to protect the wire, not the device on the end of it — the breaker or fuse must be sized so it trips before the wire it's protecting overheats, which means its rating should never exceed the wire's ampacity. The difference is how you recover after a trip: a fuse is sacrificial and has to be replaced, while a breaker like the Sea-Dog Thermal AC/DC Circuit Breaker resets with a push of its button once the fault clears. That 30A model works on 12V or 24V DC circuits as well as 125–250V AC circuits and is ignition-protected to SAE J1171, so it's safe to mount on a gasoline-powered boat.
How do battery switches keep my start and house banks safe?
A battery selector switch lets you isolate your start battery from your house bank, or combine both for an emergency start, without touching any wiring. The Sea-Dog Heavy Duty Battery Switch is rated for 350A continuous and 1,500A cranking across its Off / 1 / Both / 2 positions, built to handle a dual-diesel start load. One rule applies to every battery switch on the boat: never turn it to OFF while the engine is running — doing so disconnects the alternator from the battery bank mid-charge and can spike the alternator's diodes badly enough to destroy them.
Do I need shore power connectors and marine-grade wiring too?
Yes, if your charger or inverter/charger runs off AC input at all — a cordset like the Marinco CS30-50 30A shore power cordset carries dock power to the boat's inlet, which then feeds the charger side of the system. Downstream of that, use marine-grade tinned stranded copper wire rather than household wire; ABYC E-11 calls for tinned conductors specifically because the strands resist corrosion from salt air and vibration in a way plain copper doesn't, and voltage-drop limits (3% for critical circuits like bilge pumps and navigation lights) often push wire size up a gauge or two beyond what a simple ampacity table alone would suggest.
Explore each section
Pictured above: the Scandvik Dolphin ProLite 12/25 battery charger, the Samlex EVO-3012 inverter/charger, the Victron SmartSolar MPPT 250/70-Tr, the Sea-Dog 30A thermal circuit breaker, and the Sea-Dog heavy duty battery switch — all available to order.
Frequently asked questions
Do I need an inverter if I already have a battery charger?
Only if you want to run standard AC outlets off the battery bank when you're away from shore power — a plain charger only converts AC to DC. An inverter/charger like the Samlex EVO-3012 does both jobs in one unit.
What's the real difference between a fuse and a circuit breaker?
A fuse is a sacrificial part that has to be replaced once it blows; a circuit breaker trips on the same kind of overload but resets with a button once the fault is cleared. Both must be sized to the wire's ampacity, not the device plugged in at the end of it.
Is an MPPT controller worth it for a small solar setup?
For most cruising boats, yes — MPPT harvests meaningfully more power than PWM even from a single panel, and it's the only way to wire a higher-voltage panel string to a 12V or 24V bank without losing the extra voltage. PWM can still make sense for a very small, single-panel trickle-charge setup where the cost difference matters more than the extra yield.
Can I switch my battery selector to OFF while the engine is running?
No. Disconnecting the battery bank from a running engine's alternator can spike the alternator's diodes and destroy them. Always shut the engine down before changing a battery switch position, unless the switch is specifically wired with alternator field disconnect protection for that purpose.
