Vetus Louvered Air Suction Vent, Aluminum ASV 25 (ASV025A)
SKU:
VTSASV025A
|
Manuf. Code:
ASV025A
8% off
Unit price
/
Unavailable
Vetus Louvered Air Suction Vent, Aluminum ASV 25 (ASV025A) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF

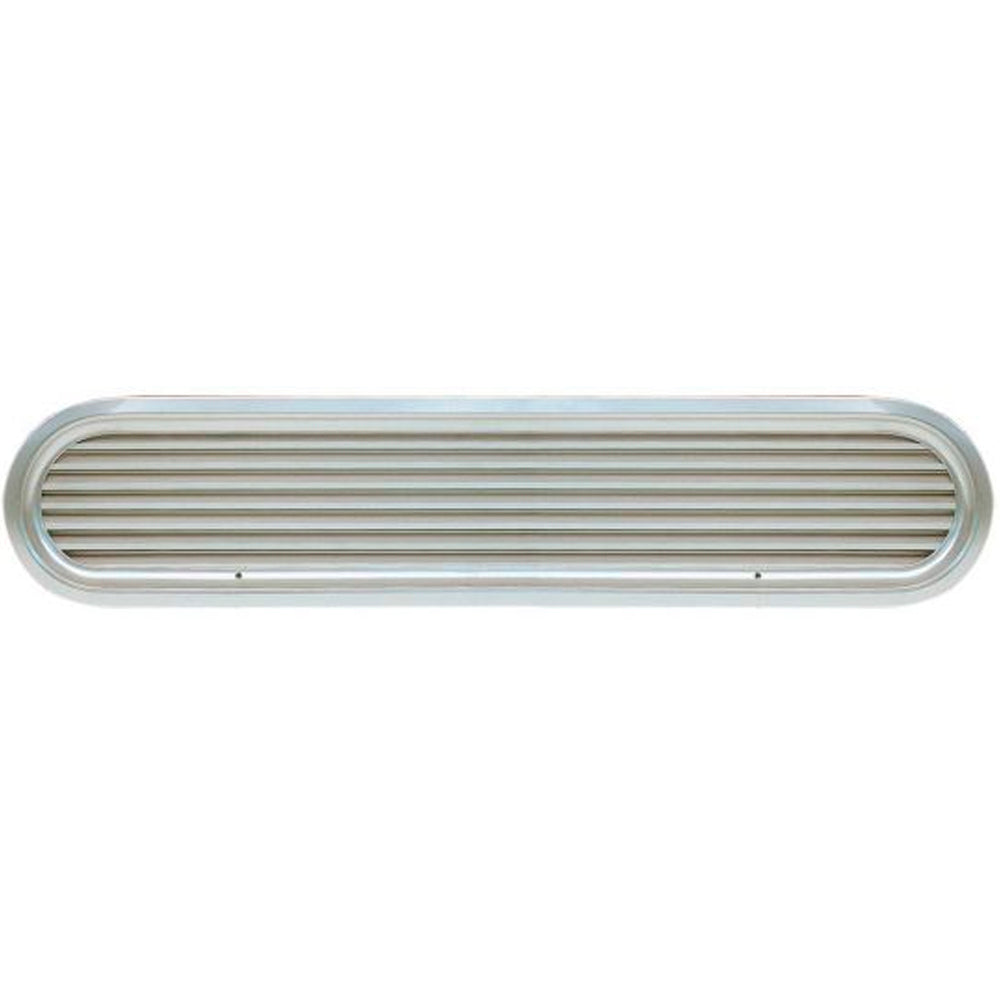

Vetus Louvered Air Suction Vent, Aluminum ASV 25 (ASV025A)
Unit price
/
Unavailable
Description
Description
The ASV25A vent frame is polished and grilles are naturally anodised aluminium. Model number relates to the engine horsepower for which it is suitable.
Our Part # VTSASV025A | Vetus Part # ASV025A
Technical Information
Technical Information

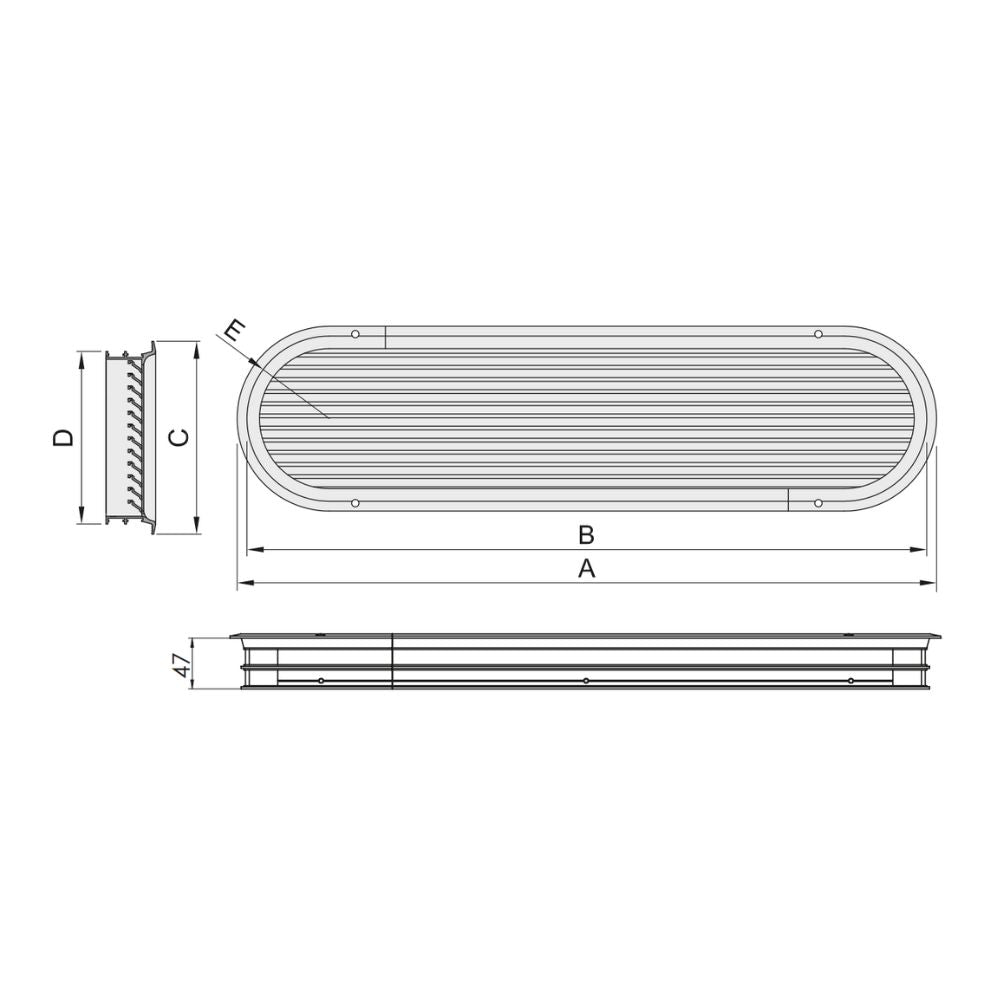

| Description | Imperial | Metric |
|---|---|---|
| Lenght A | 13 3/4 in. | 350.00 mm. |
| Lenght B cut-out | 13.00 in. | 330.00 mm. |
| Lenght C | 4 5/8 in. | 117.00 mm. |
| Lenght D cut-out | 3 13/16 in. | 97.00 mm. |
| Lenght E cut-out radius | 1 15/16 in. | 48.50 mm. |
| Free flow area | 15.50 square in. | 100.00 square cm. |
