Vetus Louvered Air Suction Vent, Aluminum ASV 30 (ASV030A)
SKU:
VTSASV030A
|
Manuf. Code:
ASV030A
11% off
Unit price
/
Unavailable
Vetus Louvered Air Suction Vent, Aluminum ASV 30 (ASV030A) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Vetus Louvered Air Suction Vent, Aluminum ASV 30 (ASV030A)
Unit price
/
Unavailable
Description
Description

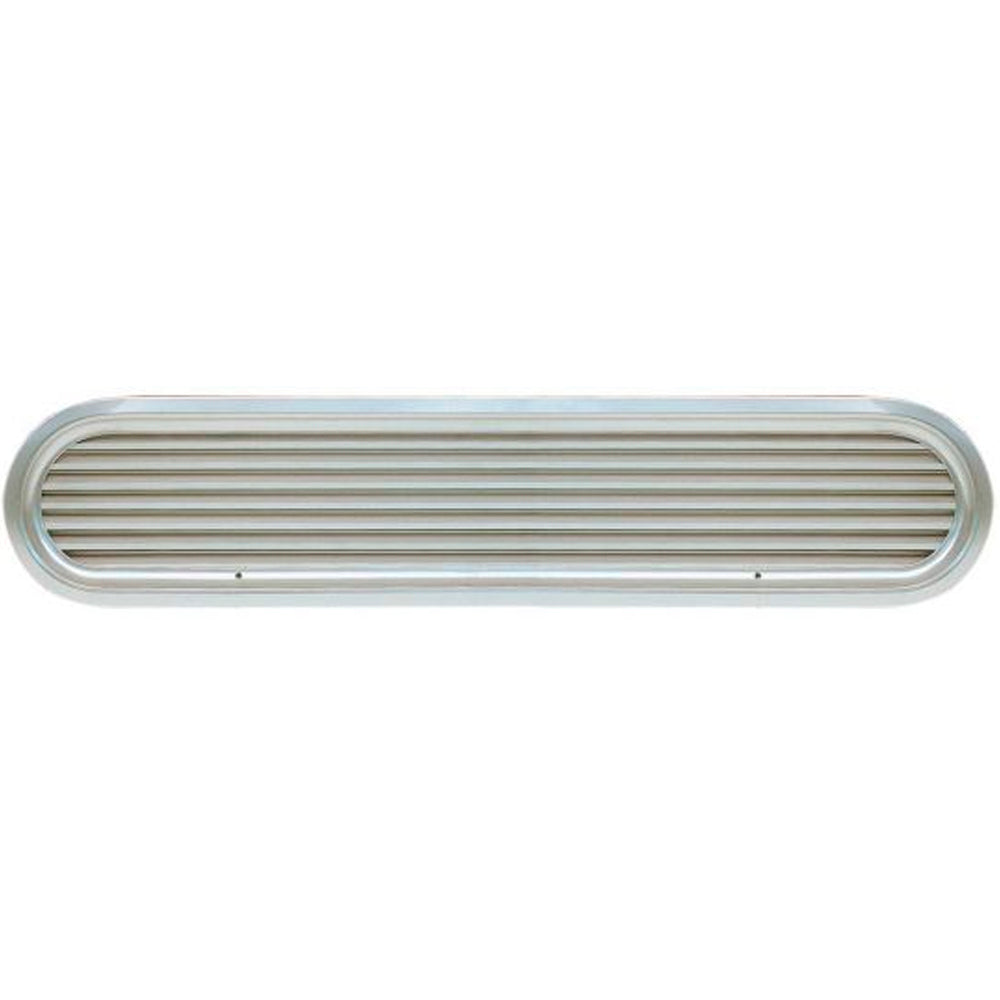

The ASV30A vent frame is polished and grilles are naturally anodised aluminium. Model number relates to the engine horsepower for which it is suitable.
Our Part # VTSASV030A | Vetus Part # ASV030A
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Lenght A | 14 3/16 in. | 360.00 mm. |
| Lenght B cut-out | 13 3/8 in. | 340.00 mm. |
| Lenght C | 5 1/8 in. | 130.00 mm. |
| Lenght D cut-out | 4 5/16 in. | 110.00 mm. |
| Lenght E cut-out radius | 2 3/16 in. | 55.00 mm. |
| Free flow area | 18.91 square in. | 122.00 square cm. |
