Vetus Louvered Air Suction Vent, Aluminum ASV 50 (ASV050A)
Unit price
/
Unavailable
Description
Description

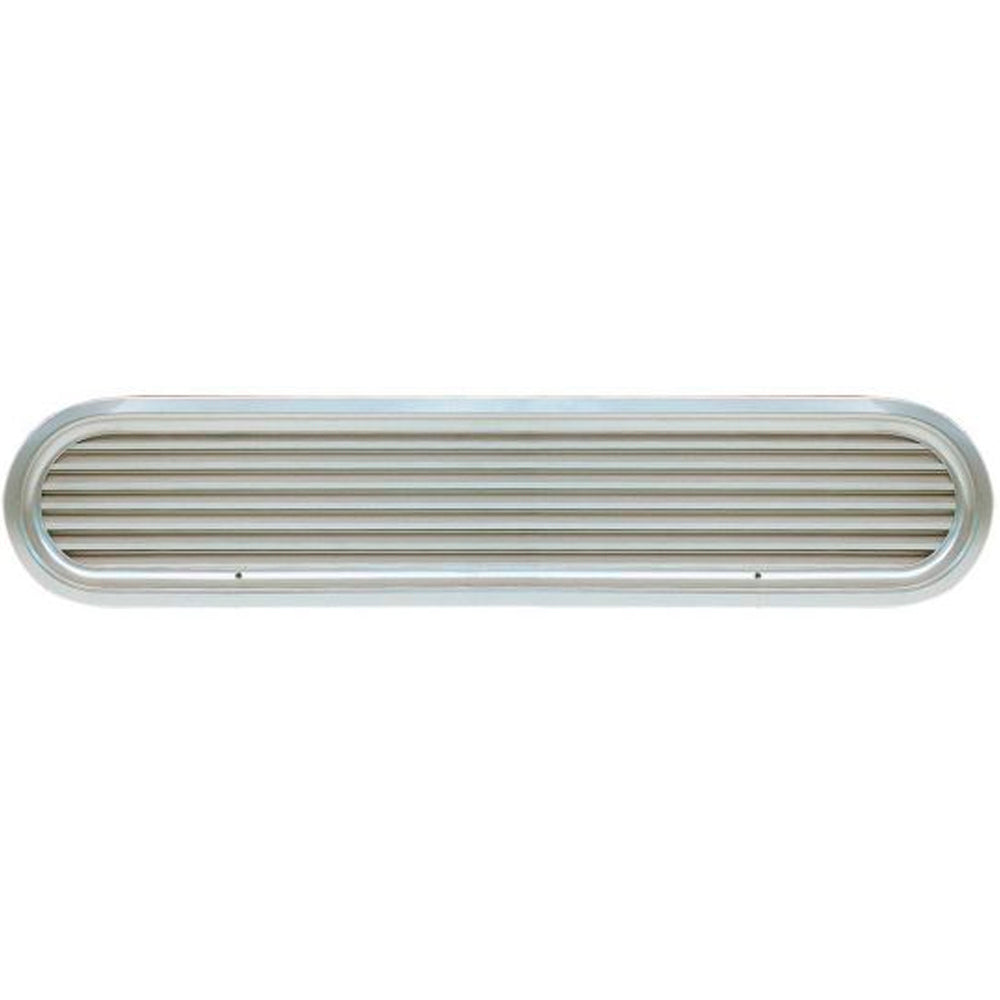

The ASV50A vent frame is polished and grilles are naturally anodised aluminium. Model number relates to the engine horsepower for which it is suitable.
Our Part # VTSASV050A | Mfr. Part # ASV050A
Technical Information
Technical Information

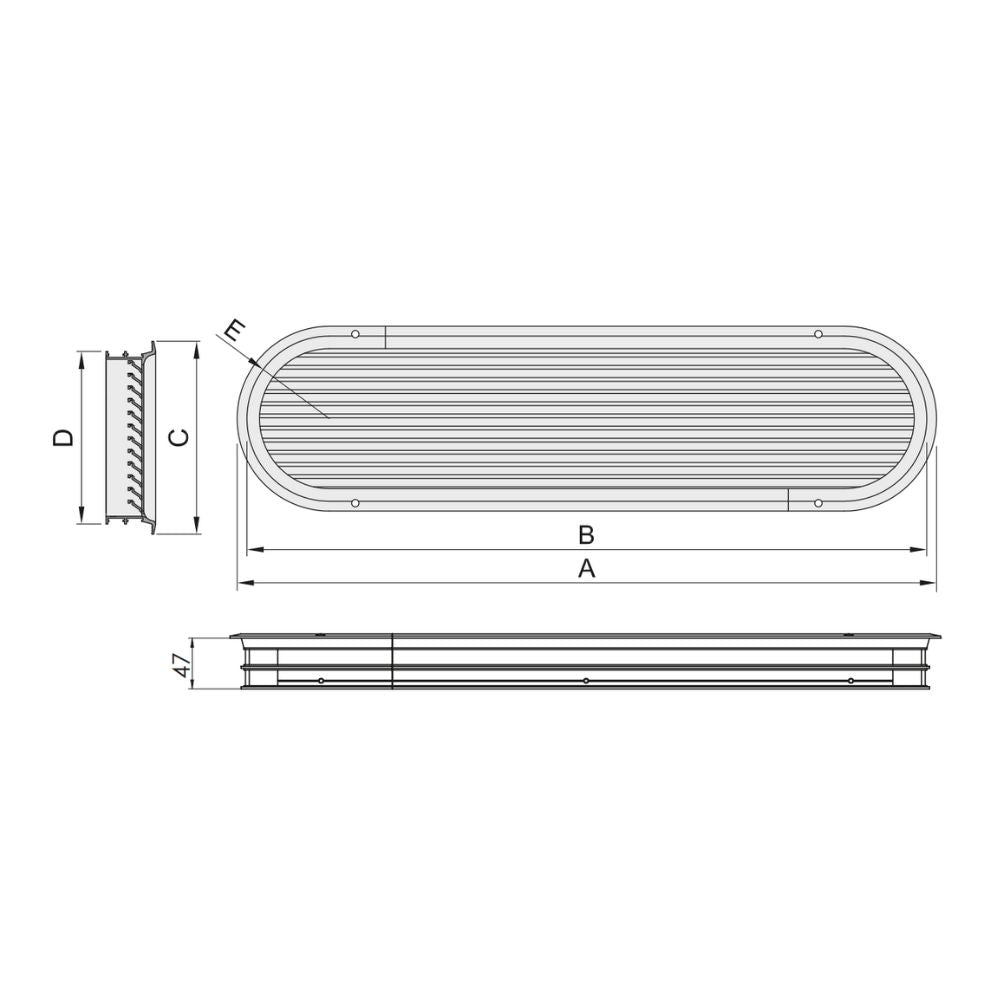

| Description | Imperial | Metric |
|---|---|---|
| Lenght A | 19 5/16 in. | 490.00 mm. |
| Lenght B cut-out | 18 1/2 in. | 470.00 mm. |
| Lenght C | 5 3/4 in. | 146.00 mm. |
| Lenght D cut-out | 4 15/16 in. | 126.00 mm. |
| Lenght E cut-out radius | 2 1/2 in. | 63.00 mm. |
| Free flow area | 31.31 square in. | 202.00 square cm. |
