Sta-Lok Standing Rigging - Swageless Eye - For Wire: 5.0 mm & Pin: 3/8 in (9.53 mm) (033-05)
Sta-Lok Standing Rigging - Swageless Eye - For Wire: 5.0 mm & Pin: 3/8 in (9.53 mm) (033-05) is backordered and will ship as soon as it is back in stock.
Worldwide Shipping Avalailable
Knowledgeable STAFF
Sta-Lok Standing Rigging - Swageless Eye - For Wire: 5.0 mm & P...
Description
Description

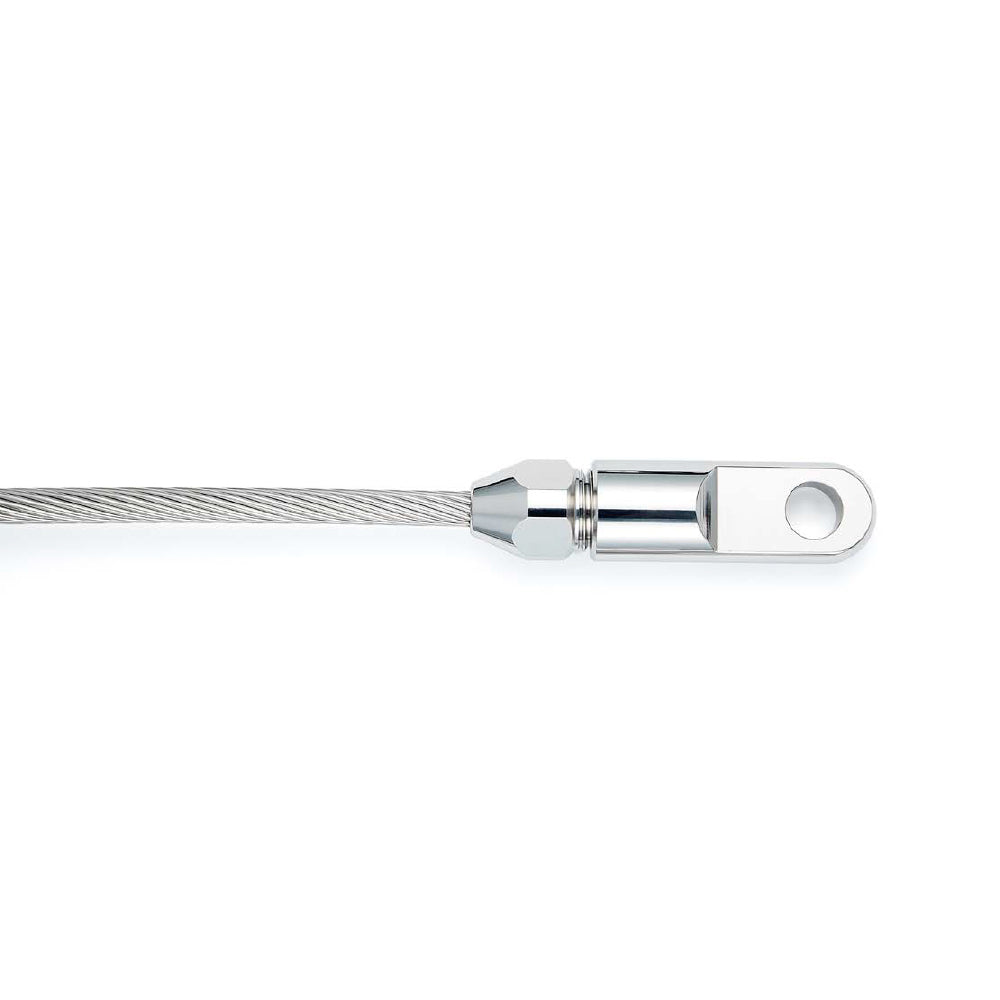

The Sta-Lok Swageless Eye #033-05 is an easy-to-use solution for creating secure wire rope terminations, perfect for those who enjoy DIY projects. It's designed for simplicity and reliability, making it a popular choice among sailing enthusiasts. With a friendly design, it's a great fit for anyone looking to manage their own wire connections without professional help.
Crafted with precision, the Sta-Lok Swageless Eye is constructed from marine-grade stainless steel, ensuring resistance to corrosion and harsh marine environments. It is specifically designed to work with 5 mm wire, providing a reliable and secure fit. Ideal for sailing gear, it combines practicality with robust performance for all your marine needs.
Perfect for sailing enthusiasts, this terminal is ideal for rigging and other marine applications where secure wire rope terminations are essential. Its swageless design makes it a great option for quick and reliable installations, even in challenging conditions.
Our Part # STA-033-05| Sta-Lok Part # 033-05
Features
Features
Features:
- Swageless self-fit mechanical fitting.
- Hand tools only required.
- Proven, trusted mechanical design.
- Onsite or Onboard assembly.
- For 1x19 wire as standard.
- Separate wedges available for 7x19 and Compact Strand.
- Check the chart for dimensions.
- Reusable N.B. with a new wedge.
- Supplied with wedges as standard.
- Efficient under both constant and variable shock loading.
- Stronger than the matching diameter wire rope.
- Totally reliable.
- Proven track record.
- Manufactured from 316 stainless steel grade 1.4401.
- Can be fitted on site or onboard using very simple hand tools.

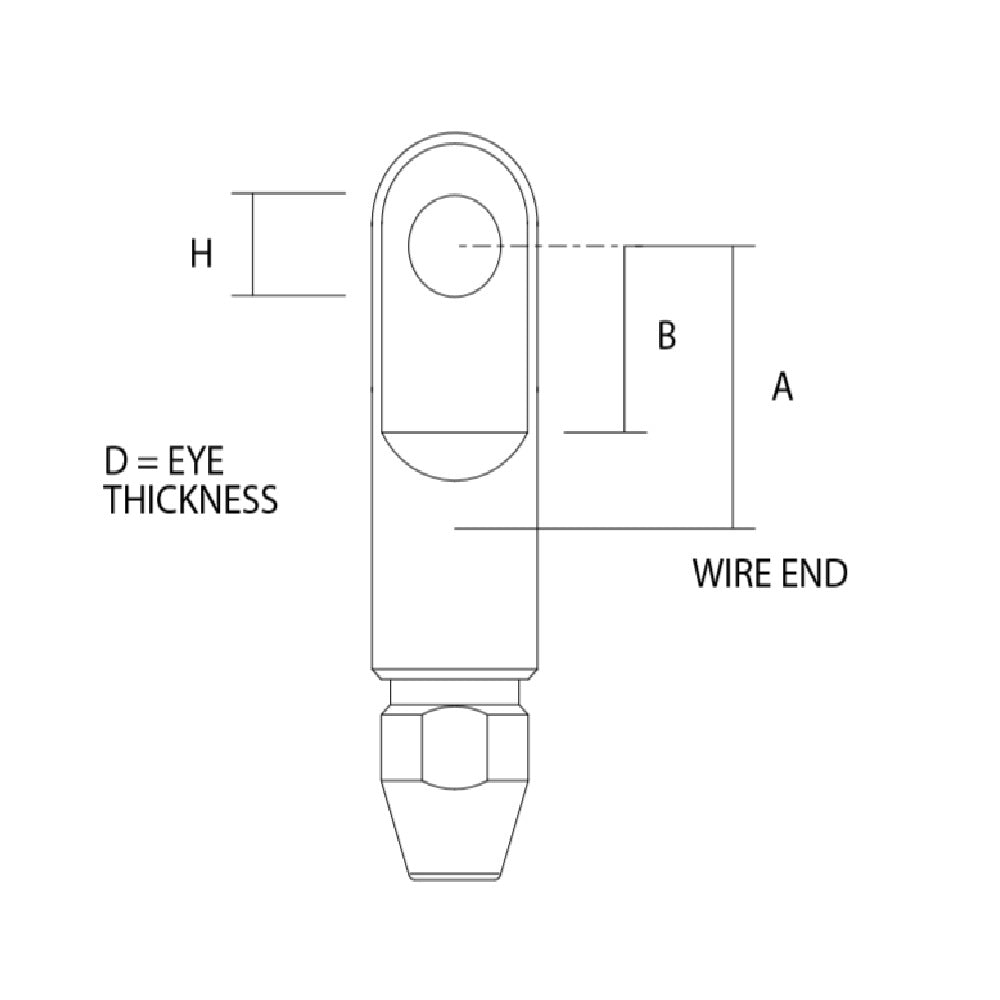

Technical Information
Technical Information
Wire: 5 mm
A: 25.9 mm
B: 18 mm
C: 10.5 mm
D: 7.5 mm
H: 10 mm
