A sailboat's plumbing system covers five real jobs — pumping bilge water out, flushing the head, filtering drinking water, making fresh water underway, and controlling every valve below the waterline — and MAURIPRO Sailing carries active, verified gear for all five from one store, whether you're outfitting a new boat or replacing a failed part underway.
On a mid-size 30–45 ft cruiser, plumbing isn't one system — it's five separate systems that fail in different ways and on different schedules. A bilge pump that doesn't kick on is the difference between a wet bilge and a real problem; a seized seacock is the difference between routine haul-out maintenance and an emergency thru-hull failure underway.
This guide walks through what each area actually needs — bilge pumps, heads and fixtures, water treatment, watermakers, and thru-hulls, seacocks & tank fittings — with real, active products at each step and links to the deeper how-to guide MAURIPRO already has for each subcategory.
Sailboat plumbing at a glance
Representative, currently active options across the category's five working areas.
| Area | What you'll find | Example (SKU) |
|---|---|---|
| Pumps | Automatic and manual bilge pumps, washdown and utility pumps for moving water on and off the boat. | Rule Standard Bilge Pump - 18.3GPM - 12V (RUL-27DA) |
| Fixtures — Heads & Showers | Electric and manual marine toilets, joker valves, and shower/galley fixtures. | Raritan Sea Era Electric Marine Toilet (RAR-160MI012) |
| Water Treatment | In-line filters for chlorine, sediment, and odor in onboard drinking water. | Shurflo by Pentair Waterguard In-Line Filter (SHU-94-009-50) |
| Watermakers | AC/DC reverse-osmosis systems that turn seawater into drinking water underway. | Dessalator D60 Duo Navigator Watermaker (DES-D60NAVDUO120V) |
| Thru-Hulls, Seacocks & Tank Fittings | Bronze ball valves for every hull penetration, plus deck plates for tank and wiring access. | GROCO 3/4" NPT Bronze In-Line Ball Valve (GRO-IBV-750) |
How do I keep my sailboat's bilge dry?
An automatic float-switch pump handles routine seepage on its own, but the pump itself matters — older-generation bilge pumps needed roughly 13.6V to hit rated flow, while the Rule Standard Bilge Pump is built to deliver its full 1,100 GPH (18.3 GPM) at just 12V, closer to what a boat's house battery actually reads under load. It also includes a built-in check valve with a hidden air vent under the strainer tabs to prevent airlocking, electromagnetic suppression (EMC) to avoid interference with onboard electronics, and a thermal cell that shuts the pump down before it overheats. In our experience, the failure mode that actually sinks boats isn't a slow leak the pump can't keep up with — it's a pump that never gets power in the first place, which is why it's worth carrying a manual backup alongside any automatic unit.
What's different about a dedicated marine toilet?
A marine toilet has to move waste against gravity, through hose runs that go up and over, which a household fixture was never built for. The Raritan Sea Era is an electric macerating toilet built for that job: its discharge pump can push through a vented loop up to five feet (1.52 m) high, and its inlet pump can lift flush water from four feet (1.22 m) below the toilet — and can run dry without damage if the supply runs short. A full-sized joker valve on the discharge side helps prevent the clogging that's the most common head complaint on any boat, and a built-in fitting accepts either 1-1/2" (38mm) or 1" (25mm) discharge hose without needing a separate adapter, which simplifies both new installs and retrofits.
Why does drinking water on a boat need its own filter?
Water sitting in a tank or run through a dock hose can pick up chlorine taste, sediment, and odor long before it reaches the galley tap, which is what an in-line filter is built to catch at the point of use. The Shurflo by Pentair Waterguard filter uses KDF media and premium coconut-shell carbon rated at 5 microns, reducing bacteria, chlorine, hydrogen sulfide, and water-soluble heavy metals while it improves taste and eliminates odor. It's rated to filter up to 3,900 gallons at a maximum flow rate of 1.5 GPM, and Shurflo's guidance is to swap the cartridge once flow slows or taste and odor return — a small, cheap habit that keeps the rest of the freshwater system tasting the way it should.
How does a sailboat watermaker actually make fresh water?
A watermaker pushes seawater through a reverse-osmosis membrane at high pressure, filtering out salt to produce fresh water on demand instead of relying on tank capacity alone. The Dessalator D60 Duo Navigator is a bi-powered system that runs on 12/24V DC or 120/230V AC at the flip of a switch, with no electric clutch or manual pulley swap needed to change modes — the manufacturer describes it as "two watermakers in one," letting you run on DC (about 370W) while motoring, or switch to AC when the generator is running at anchor. Dessalator states the DUO 60 and DUO 100 have been fitted by large shipyards for more than a decade, which is a reasonable proxy for how mature the platform is.
What do I need to know about thru-hulls, seacocks & tank fittings?

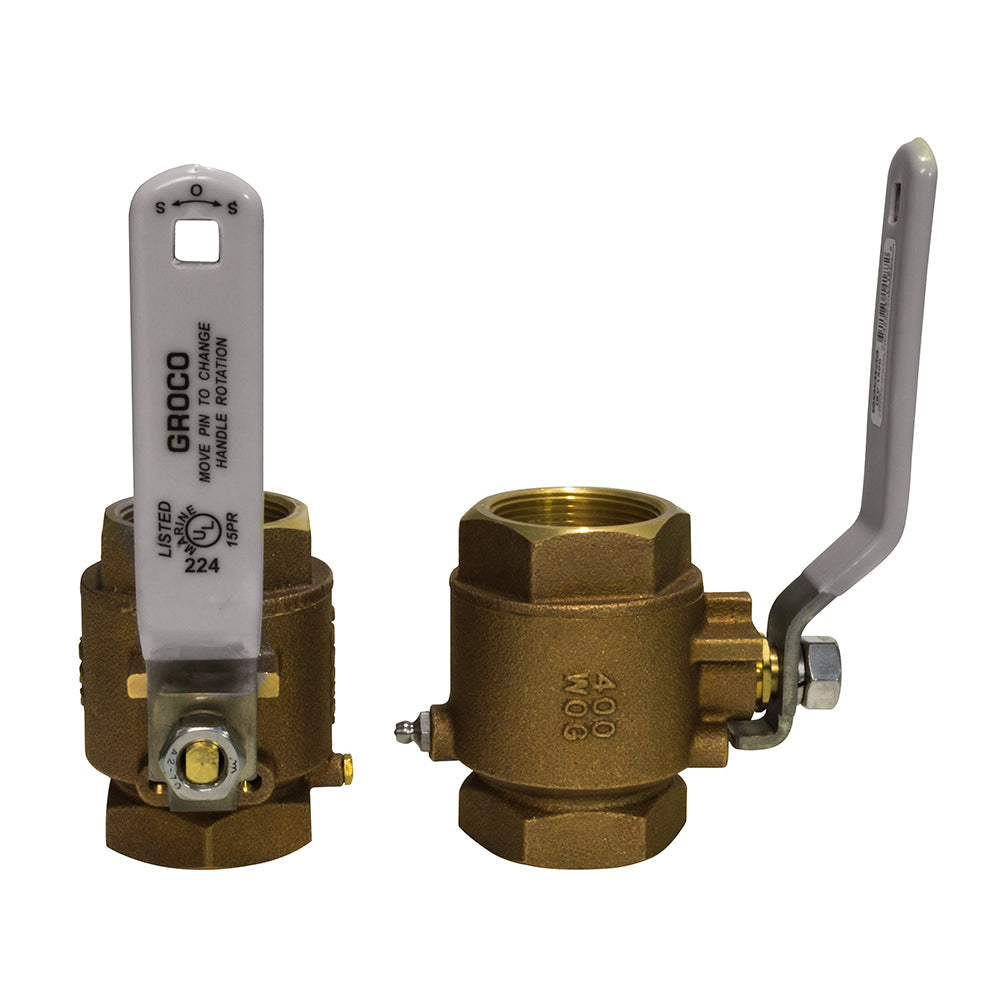

Every plumbing system on a boat eventually crosses the hull, and that crossing point is where a small part failing has the biggest consequence. The GROCO 3/4" NPT Bronze In-Line Ball Valve is built for exactly that job — a professional-grade, in-line valve for controlling water or fuel flow at a hull penetration on a mid-size boat's plumbing system, giving you a positive on/off shutoff rather than relying on a hose clamp alone. Thru-hull hardware is typically bronze, reinforced composite, or stainless steel, and knowing which valves on your boat are open or closed — especially before hauling out or working below the waterline — is basic seamanship. Deck plates like the Sea-Dog Screw-Out Deck Plate round out this category, giving you UV-resistant, screw-out access to inspect holding tanks, wiring, and fittings without cutting into the deck.
Common mistakes in sailboat plumbing
- Relying on a single bilge pump. An automatic float-switch pump is only as useful as the power reaching it — pair it with a manual backup for the scenario where the electrical system is the thing that failed.
- Ignoring the joker valve until the head clogs. The joker valve is the part most responsible for head clogs and odor — it's a cheap, routine replacement, not a symptom to work around.
- Skipping the in-line filter cartridge swap. A filter rated for 3,900 gallons still needs replacing before flow slows or taste and odor return — an exhausted cartridge stops filtering long before it looks visibly dirty.
- Not knowing which seacocks are open or closed before working below the waterline. Walk every thru-hull and label it before a haul-out or any work near the hull — this is the single most preventable cause of a serious plumbing incident.
Frequently asked questions
Do I need a backup bilge pump if I already have an automatic one?
Yes — an automatic float-switch pump depends on the boat's electrical system, so a manual backup pump covers the exact scenario (a dead battery or wiring fault) where the automatic pump can't help.
What's the difference between an electric and a manual marine toilet?
An electric macerating toilet like the Raritan Sea Era uses a motor-driven pump to flush and discharge automatically at the touch of a switch, while a manual toilet uses a hand-operated piston pump — manual units have fewer parts to fail but need more physical effort at each flush.
Do I still need an in-line filter if I have a watermaker?
Yes — a watermaker treats the seawater coming in, but tank-stored or dock-filled water can still pick up taste, odor, or sediment on its way to the tap, which is exactly what a dedicated in-line filter like the Shurflo Waterguard is built to catch.
How much power does a marine watermaker draw?
On the Dessalator D60 Duo Navigator, DC operation draws roughly 370W at 12/24V, while AC operation draws around 5A at 120/230V — the DC mode is meant for use while the engine (and its alternator) is already running.
What material should thru-hulls and seacocks be?
Bronze, reinforced composite (like Marelon), and stainless steel are the common materials used below the waterline — the right choice depends on what other metals are near it and how the fitting will be maintained, so match new hardware to what's already on the boat rather than mixing materials at the same penetration.
Explore each area further, or browse the current MAURIPRO catalog directly.
- How to Choose a Bilge Pump for Your Sailboat: Sizing, Automatic vs Manual & GPH Capacity
- How to Choose a Marine Watermaker for Your Sailboat: Sizing, Power Type & Capacity
- Raritan Electric Marine Toilets: The Ultimate Solution for Comfort and Reliability
Pictured above: the GROCO 3/4" NPT Bronze In-Line Ball Valve, the Rule Standard Bilge Pump, the Raritan Sea Era Electric Marine Toilet, the Shurflo by Pentair Waterguard In-Line Filter, the Dessalator D60 Duo Navigator Watermaker, and the Sea-Dog Screw-Out Deck Plate — all available to order.
