Wrap a sheet or halyard three to four times clockwise around the winch drum, keep the hauling line leading in fair to the drum, and let a self-tailing jaw — or a crew member — hold the tail while you crank. MAURIPRO carries the self-tailing winches, locking handles, and electric winch handles to rig a cockpit that does this safely and efficiently.
Winch technique at a glance
| Step | What to do | Why it matters | MAURIPRO example |
|---|---|---|---|
| Wraps | 3–4 clockwise turns before you load the drum | Too few and a sudden load spike can pull turns loose (or pull fingers toward the drum); too many and you risk an override | Ronstan Self-Tailing Winch Orbit 30 |
| Fair lead | Hauling line meets the drum at roughly a 95–100° angle | An unfair lead is the main cause of an override (a jammed "wrap") | — |
| Tailing | Self-tailing jaw, or a second crew member on plain-top winches | Self-tailing frees a hand for the handle; plain tops let a racing crew cast off instantly in a tack | Antal Plain Top Winch Size 7 |
| Handle | 254 mm (10 in) standard, or 305 mm (12 in) for more leverage | A 12 in handle gives about 20% more leverage than a 10 in handle, at the cost of a wider swing arc | Selden Locking Winch Handle, 10 in. |
| Easing | Pull the handle, hold the tail, peel turns off the drum under control | Prevents a sudden, uncontrolled release of a loaded line | — |
| Power assist | Electric handle for shorthanded crews or repeated high-load grinds | Removes cranking fatigue without changing the winch's own load rating | WinchRite Electric Winch Handle |
A winch looks simple — drum, handle, a few gears — but it is a genuine force multiplier, and the technique you use on it is what keeps a trimmed sheet from becoming a jammed override or a pinched hand. On a 30–45 ft cruiser, most of that force runs through one or two primary self-tailing winches every time you tack, reef, or hoist.
This guide covers wraps, tailing, handle length, cranking, easing, and the mistakes that turn a routine trim into a repair bill. MAURIPRO stocks the self-tailing winches, plain-top winches, locking handles, and electric handles referenced below, all active in our catalog.
How many wraps do you need around a sailboat winch drum?
Start with three to four turns around the barrel before you take up slack by hand — that starting point comes straight from Harken's own winch technique guidance, written by rigger Brion Toss. Too few wraps is the single most common winch mistake: as marine writer Mike Lee put it in Cruising World, "the most common mistake is not having enough wraps around the drum," and "in most cases three wraps just aren't enough." Come out of a tack with light load on the sheet and only two or three wraps on, and a sudden gust can load the line hard enough to pull it — and your fingers — toward the drum as you try to release it from the self-tailer.
Too many wraps causes the opposite problem: an override, where a turn jams down on top of the ones below it and won't ease until you can get slack back into the line. There's a middle ground that comes with experience — watch the load and wrap accordingly rather than using a fixed count every time.
For perspective: a "number 42" primary winch — an industry-standard size — has roughly a 42:1 power ratio, so 50 lb of force on the handle becomes about 2,100 lb of pull at the drum, per Cruising World's worked example. That is why wrap count and hand position matter as much as they do around a loaded winch.
How do you tail a line — self-tailing vs. by hand?
A self-tailing winch has a spring-loaded stripper arm and a grooved jaw at the top of the drum that grip and hold the line automatically as it winches in, so one person can both crank and tail solo. On a plain-top (non-self-tailing) winch, like the Antal Plain Top Size 7 pictured below, a second crew member has to hold and "tail" the line by hand while the first person cranks.
Plain tops haven't disappeared: per Harken's own buying guidance, "you wouldn't want self-tailing winch tops for primary winches on a racing boat where casting off the rope into a tack is easier without" the jaw in the way. For a shorthanded cruiser, self-tailing is the practical default.
What winch handle length should you use?
Winch handles commonly come in two lengths: 254 mm (10 in) and 305 mm (12 in). Per Harken, a 305 mm handle gives roughly 20% more leverage than the 254 mm handle most winches ship with — useful when you're grinding in the last few inches of a heavily loaded genoa sheet. The tradeoff is a wider swing arc, which makes the longer handle slower and more awkward to crank in a tight cockpit.
A locking handle, like the Selden model pictured below, seats into the winch's handle socket and locks in place so it can't pop free mid-crank under a hard load — worth having on any primary winch you're grinding under real tension, not just a spare handle you carry loose in a cockpit locker.
How do you crank a winch safely and efficiently?
Take up slack by hand first, pulling palms-away for a full range of motion, and keep your hands clear of the drum in case the turns slip under sudden load. Once the slack is out, plug in the handle and crank — get your weight over the handle and use both hands when the load allows it, with a fast straight-arm stroke for light loads and a slower, more powerful stroke as the load builds.
With any powered winch — electric or hydraulic — stop cranking the moment the load feels excessive, and pay attention if the line stops moving: that almost always means something is jammed, not that more force will free it. You can't feel line tension through a motor the way you can through a hand crank.
How do you ease a loaded line off a winch without an override?
Pull the handle out, keep a firm hold on the tail, and remove turns from the drum under control rather than letting the line run free all at once. A fair lead helps here too: keep the hauling part meeting the drum at roughly the same 95–100° angle you used loading it, since an unfair lead — the line entering too high or too low relative to the drum — is the main cause of an override in the first place. If the geometry on your boat won't give you a fair lead naturally, a turning block between the sheet's origin and the winch corrects the angle.
Do you need an electric winch handle?
An electric handle like the WinchRite fits the same standard socket as a manual handle and spins any compatible winch without changing the winch's own gearing or load rating — the winch's mechanical limits still govern how much load the system can safely take, motor or muscle. That makes it most useful for shorthanded or singlehanded sailors and repeated high-load grinds (halyard tension, anchor rode override), not as a replacement for good winching technique.
Expert notes
From our rigging bench: the winching mistake we see most often isn't too few wraps, it's too many — three snug turns plus a self-tailing jaw hold a genoa sheet just fine, and five or six is usually what jams an override mid-tack.
From our rigging bench: customers new to singlehanding often skip the locking handle because it feels like an extra step — until a handle pops free under a hard crank. It's cheap insurance for the price of one part.
From our rigging bench: on shorthanded cruising boats, an electric handle earns its keep on the halyard tension and the anchor override, not on every sheet trim — save the battery for the jobs a hand crank makes genuinely tiring.
Common mistakes sailors make using a winch
- Too few wraps under a sudden load. Three wraps is often not enough once the wind fills in — start with three to four and add more as the load builds.
- Hands too close to the drum or self-tailer. Keep fingers clear when releasing a loaded line from the self-tailing jaw.
- Letting go instead of easing. Peel turns off the drum under control; never release a loaded line all at once.
- Ignoring a bad fair lead. A steep or shallow entry angle is the most common cause of an override — add a turning block if the geometry doesn't line up.
- Skipping pawl inspections. The ratchet pawls carry the entire load on the winch; check that they're clean and free at least once a season.
- Never checking mounting bolts or deck core. Winch base bolts loosen over time, and a soft, water-damaged core under a heavily loaded winch is a structural problem, not a cosmetic one — inspect both each season.
Frequently asked questions
How many wraps should I put on a sailboat winch?
Start with three to four clockwise turns around the drum before applying load, per standard rigging guidance. Add more wraps as the load builds, and watch for slipping — too few wraps risks the turns pulling loose under a sudden load spike.
What's the difference between a self-tailing and a standard winch?
A self-tailing winch grips and holds the line automatically with a spring-loaded jaw at the top of the drum, so one person can crank and tail solo. A standard (plain-top) winch needs a second crew member to hold tension on the tail by hand while the first person cranks.
What size winch handle do I need?
Most winches use a 254 mm (10 in) or 305 mm (12 in) handle. The 12 in handle delivers roughly 20% more leverage for heavy loads but swings through a wider arc, making it slower to crank than the 10 in size.
How often should I check my winch's pawls and mounting bolts?
At least once a season. The pawls carry the winch's entire load and can stick if packed with old grease or grit; mounting bolts can work loose over time, and a soft-sounding deck under the winch signals core damage that needs attention before it gets worse.
Do I need an electric winch handle?
Not for every boat, but it helps shorthanded or singlehanded sailors and anyone doing repeated high-load grinds, such as halyard tensioning. It powers the same winch through its existing gearing, so it doesn't change what the winch itself is rated to handle.
Recommended winch gear from MAURIPRO
A short list of active, in-catalog picks for setting up correct winch technique on a mid-size cruiser:

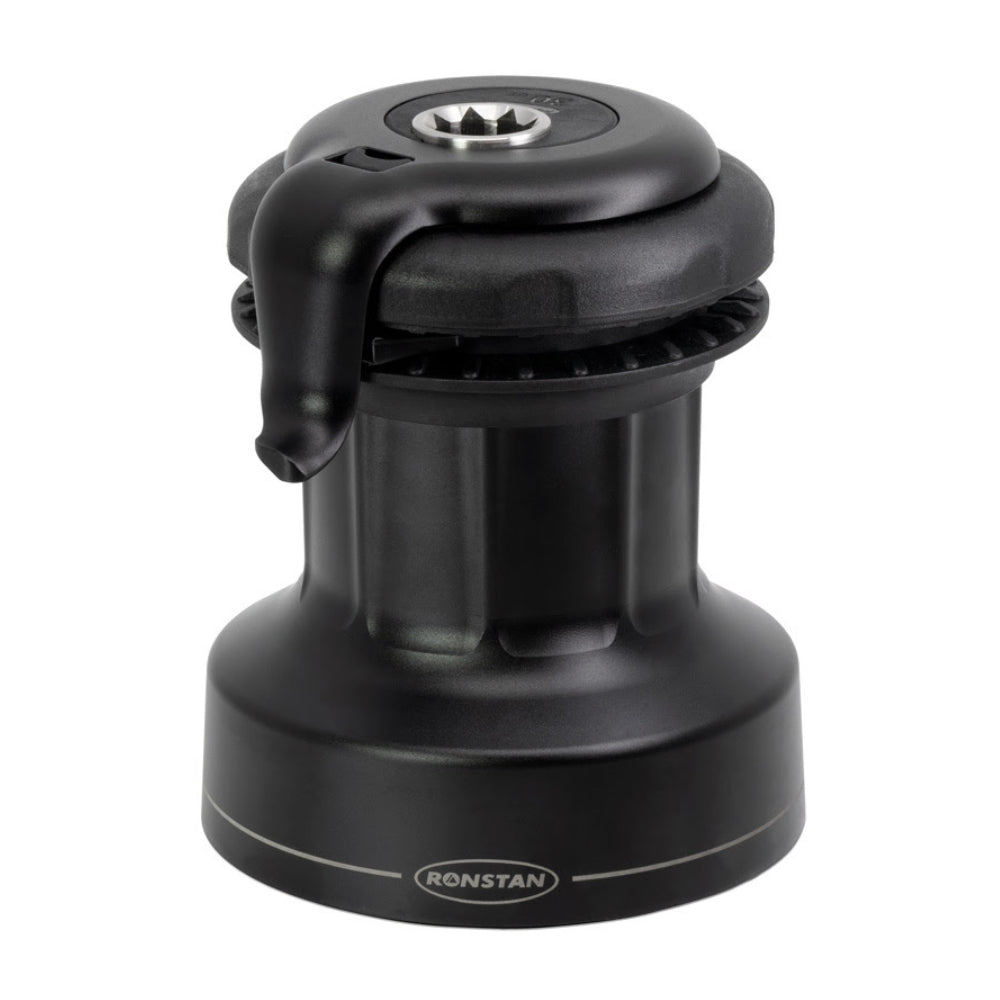

- Ronstan Self-Tailing Winch Orbit Size 30 — two-speed, aluminum, self-tailing jaw for solo trimming on a 30–40 ft cruiser's primaries.
- Selden Locking Winch Handle, 10 in. — locks into the drum socket so it stays put under a hard crank.
- Antal Plain Top Winch Size 7 — a compact, non-self-tailing option for racing setups or secondary functions.
- WinchRite Electric Winch Handle — battery-powered handle that fits any standard winch socket for power-assisted grinding.
