Facnor Spare Parts Model LX - Selection Guide

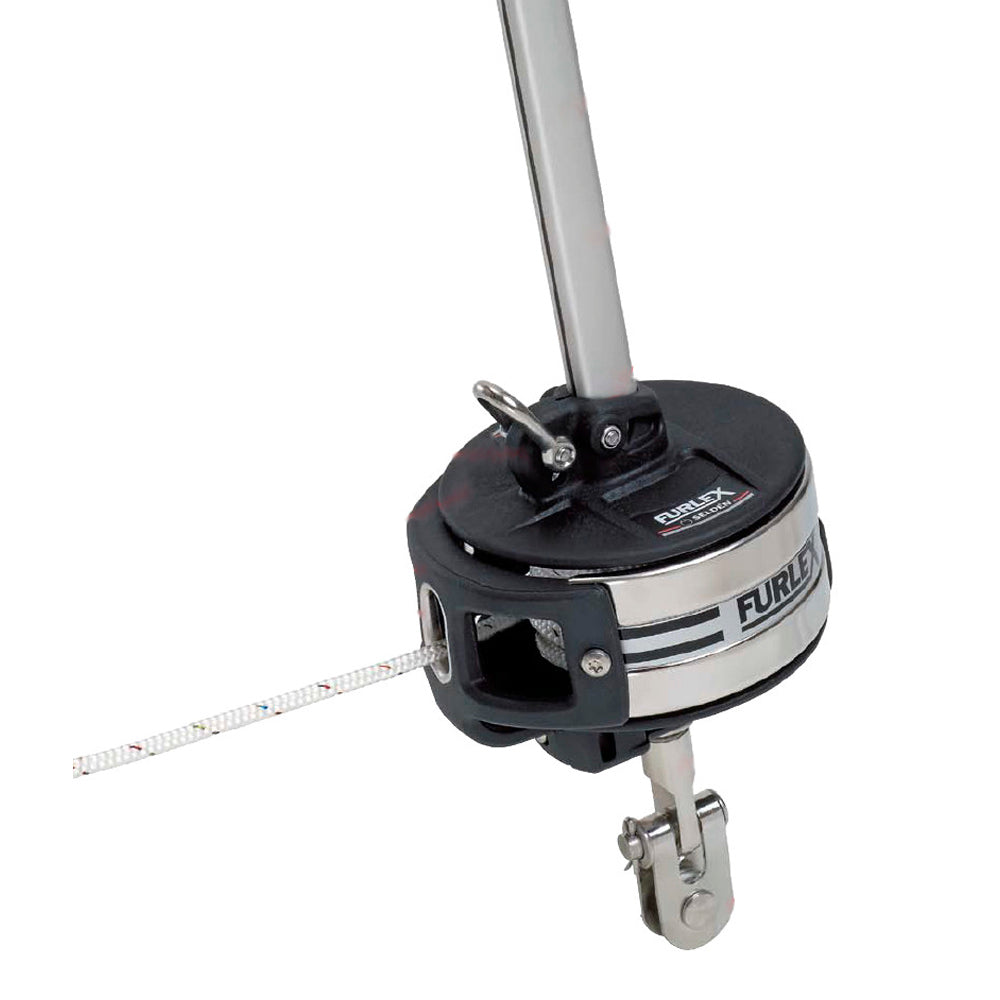

Selden Furling System - Furlex 50S - Max. Stay Length: 33.1 ft (10.1 m) - Wire Dia: 3/16 in (5.0 mm) - Standard

To find the right spare part for your Facnor LX headsail furler, match your exact LX model number to the item number in the cross-reference table below, then use the listed MAURIPRO part number (or Facnor manufacturer code) to order the correct component. The Facnor LX series spans nine sizes — LX060, LX070, LX100, LX130, LX165, LX180, LX200, LX290 and LX330 — and each shares a common numbered parts diagram, so the same item number can mean a different part number depending on your furler size.

Facnor LX furler sizes at a glance

LX model Typical use / range How to identify
LX060 / LX070 Smaller cruisers and daysailers Smallest drum and extrusion in the LX line
LX100 / LX130 Mid-size cruising yachts Mid-diameter extrusion; most common sizes
LX165 / LX180 Larger cruising and performance yachts Heavier drum and swivel components
LX200 / LX290 / LX330 Large yachts and higher rig loads Largest drums, extrusions and bearings in the range

What is the Facnor LX furling system?

The Facnor LX is a headsail (jib/genoa) reefing and furling system built around an aluminum foil extrusion that fits over your existing forestay. It lets you roll the headsail away from the cockpit and reef it partially in building breeze. The LX line covers nine sizes matched to forestay diameter and boat size, from the compact LX060 up to the large LX330. Because all LX sizes use the same numbered component diagram, spare-part selection always comes down to two things: your exact model number and the item number of the part you need.

Facnor Bottom Extrusion Telescopic Section for FD210 / LS165 / LX165 / LX180 Furlers
Facnor Bottom Extrusion Telescopic Section for FD210 / LS165 / LX165 / LX180 Furlers — a telescopic bottom extrusion section that fits several LX sizes including the LX165 and LX180.

How do I read the LX spare-parts table?

Each row in the cross-reference table is a numbered item from the Facnor LX exploded diagram (bottom extrusion, sail feeder, drum, swivel, bearings, screws and so on). Each pair of columns under a model shows the MAURIPRO part number and the Facnor manufacturer code for that size. Find the column for your exact model (for example LX130), read down to the item number you need, and click the linked part number to go straight to that item. A dash means that part is not used on that size.

Facnor Bottom Extrusion Telescopic Section for FD280 / LS200 / LS290 / LX200 / LX290 Furlers
Facnor Bottom Extrusion Telescopic Section for FD280 / LS200 / LS290 / LX200 / LX290 Furlers — a telescopic bottom extrusion section covering the larger LX200 and LX290 furlers.

Which LX spare parts are ordered most often?

The most commonly replaced Facnor LX components are the telescopic bottom extrusion section (the lowest foil that takes the most load and wear), the sail feeder assembly at the luff entry, drum and swivel bearings, and the bottom-extrusion screw sets. If your part number is not listed for your size, or you are unsure which item you have, note the item number from the diagram and the exact model stamped on your furler before contacting us.

Facnor Sail Feeder Assembly (Standard) for FD110 / RX070 / RX100 / RX130 / RX165 Furlers
Facnor Sail Feeder Assembly (Standard) for FD110 / RX070 / RX100 / RX130 / RX165 Furlers — a standard sail feeder assembly used at the foil entry to guide the headsail luff during furling.

Facnor LX full spare-parts cross-reference

#Item Models
LX060 LX070 LX100 LX130 LX165 LX180 LX200 LX290 LX330
Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code Part Num. Mfr. Code
1 FAC2085 9112060040 FAC2086 9112070040

-

 9112100040 FAC2088 9112130040 FAC0060 9112165040 FAC2089 9112180040 FAC2090 9112200040 FAC2091 9112290040

-

-
1b FAC2109 9116060040 FAC2110 9116070040 FAC2111 9116100040 FAC2112 9116130040 FAC2113 9116165040 FAC2114 9116180040 FAC2115 9116200040 FAC2116 9116290040 FAC2108 9114330040
2

-

 9170025040

-

 9170025040 FAC3054 9170033040 FAC3054 9170033040 FAC2771 9170039040 FAC2771 9170039040 FAC3019 9170047040 FAC3019 9170047040 FAC3009 9266053040
3 FAC0098 9171000205 FAC0098 9171000205 FAC0098 9171000205 FAC0098 9171000205 FAC0100 9171000306 FAC0100 9171000306 FAC0102 9171000508 FAC0102 9171000508 FAC2162 9171000613
3 FAC0099 9171000206 FAC0099 9171000206 FAC0099 9171000206 FAC0099 9171000206 FAC0101 9171000310 FAC0101 9171000310 FAC0103 9171000509 FAC0103 9171000509 FAC2163 9171000614
3

-

-

-

-

-

-

-

-

-

-

 FAC3204 9171000312 FAC2161 9171000512 FAC2161 9171000512 FAC2164 9171000616
3

-

-

-

-

-

-

-

-

-

-

-

-

 FAC0104 9171000514 FAC0104 9171000514 FAC2165 9171000619
3

-

-

-

-

-

-

-

-

-

-

-

-

 FAC3181 9171000516

-

-

 FAC2166 9171000620
4 FAC0271 9130204250 FAC0271 9130204250 FAC0273 9130204330 FAC0273 9130204330 FAC0275 9130204390 FAC0275 9130204390 FAC0276 9130204470 FAC0276 9130204470 FAC0277 9130204530
5 FAC2167 9130125112 FAC2167 9130125112 FAC0094 9130125132 FAC0094 9130125132 FAC0095 9130125152 FAC0095 9130125152 FAC2171 9130125173

-

-

 FAC2173 9130125191
5 FAC2168 9130125122 FAC2168 9130125122

-

9130125144

-

9130125144

 FAC2170 9130125158 FAC2170 9130125158

-

9130125184

 FAC0083 9130125186 FAC0088 9130125192
5

-

9196025040

-

9196025040

 FAC3319 9196033050 FAC3319 9196033050 FAC2199 9190139040 FAC3220 9130125168 FAC0083 9130125186 FAC2172 9130125188 FAC2175 9130125194
5 FAC3225 9196025050 FAC3225 9196025050 FAC3320 9196033070 FAC3320 9196033070 FAC2732 9196039080 FAC2732 9196039080 FAC2172 9130125188 FAC3168 9130125189 FAC2176 9130125196
5

-

-

-

-

-

-

-

-

 FAC3316 9196039100 FAC3316 9196039100 FAC3168 9130125189 FAC3300 9196047080 FAC2177 9130125198
5

-

-

-

-

-

-

-

-

-

-

 FAC3317 9196039120 FAC3300 9196047080 FAC3301 9196047090 FAC3118 9130125199
5

-

-

-

-

-

-

-

-

-

-

-

-

 FAC3301 9196047090 FAC3302 9196047120 FAC3269 9196053130
6 FAC3162 9190025040 FAC3162 9190025040 FAC3151 9190033040 FAC3151 9190033040 FAC3121 9190039040 FAC3121 9190039040

-

 9190047040

-

 9190047040

-

 9190053040
6 FAC3163 9190025041 FAC3163 9190025041 FAC3152 9190033041 FAC3152 9190033041 FAC3122 9190039041 FAC3122 9190039041 FAC3109 9190047041 FAC3109 9190047041

-

 9190053041
6 FAC3221 9190125041 FAC3221 9190125041 FAC2198 9190133040 FAC2198 9190133040 FAC3184 9190139041 FAC2199 9190139040 FAC3110 9190047042 FAC3110 9190047042

-

 9190053042
6

-

 9190125040

-

 9190125040 FAC3818 9190133041 FAC3218 9190133041

-

-

 FAC3184 9190139041 FAC3171 9190147041 FAC3171 9190147041

-

 9190053043
6

-

-

-

-

-

-

-

-

-

-

 FAC3123 9190039042 FAC3172 9190147042 FAC3172 9190147042

-

 9190053045
6b FAC6139 26132250206 FAC6139 26132250206 FAC6121 26132330206 FAC6121 26132330206 FAC6154 26132390206 FAC6154 26132390206 FAC2200 26132470106 FAC2200 26132470106

-

26132530106
6b FAC2197 26132250106 FAC2197 26132250106

-

26132330106

-

26132330106

-

26132390106

-

26132390106

-

26132470206

-

26132470206

-

26132530206
7

-

 31001220500

-

 31001220500 FAC2207 31001220600 FAC2207 31001220600 FAC2207 31001220600 FAC2207 31001220600 FAC2208 31001220800 FAC2208 31001220800 FAC2209 31001221000
8 FAC2210 31001250500 FAC2210 31001250500 FAC2211 31001250600 FAC2211 31001250600 FAC2211 31001250600 FAC2211 31001250600 FAC2212 31001250800 FAC2212 31001250800 FAC2213 31001251000
9 FAC3256 26134250036 FAC3256 26134250036 FAC3241 26134330036 FAC3241 26134330036 FAC3229 26134390036 FAC3229 26134390036 FAC3217 26134470036 FAC3217 26134470036 FAC3194 26134530036
10 FAC0138 9130128250 FAC0138 9130128250 FAC0140 9130128330 FAC0140 9130128330 FAC0141 9130128390 FAC0141 9130128390 FAC2226 9130128470 FAC2226 9130128470 FAC2227 9130128530
11 FAC3296 9130124320 FAC3296 9130124320 FAC3289 9130124140 FAC3289 9130124140 FAC0047 9130124150 FAC0047 9130124150 FAC0047 9130124150 FAC0047 9130124150 FAC2034 9130124190
12

-

 26136250166

-

 26136250166

-

 26136250166

-

 26136250166

-

 26136250166

-

 26136250166 FAC0027 26136470166 FAC0027 26136470166 FAC0028 26136530166
13 FAC2244 9195025060 FAC2244 9195025060 FAC2249 9195033080 FAC2250 9195033100 FAC2253 9195039100 FAC2253 9195039100 FAC2258 9195047120 FAC2261 9195047160 FAC1973 9195047180
13 FAC2245 9195025080 FAC2245 9195025080 FAC2250 9195033100 FAC2251 9195033120 FAC2254 9195039120 FAC2254 9195039120 FAC2259 9195047130 FAC1973 9195047180 FAC2262 9195047190
13 FAC2246 9195025100 FAC2246 9195025100 FAC2251 9195033120 FAC2252 9195033130 FAC2255 9195039130 FAC2255 9195039130 FAC2260 9195047140 FAC2262 9195047190 FAC2263 9195047200
13

-

-

-

-

 FAC2252 9195033130

-

-

 FAC2256 9195039140 FAC2256 9195039140 FAC2261 9195047160 FAC2263 9195047200 FAC1975 9195047220
13

-

-

-

-

-

-

-

-

 FAC2257 9195039160 FAC2257 9195039160 FAC1973 9195047180 FAC1975 9195047220

-

-
14 FAC2264 9182251006 FAC2264 9182251006 FAC2268 9182331008 FAC2268 9182331008 FAC2274 09182391510 FAC2274 09182391510 FAC2277 9182471512 FAC2277 9182471512 FAC2284 9182531522
14 FAC2265 9182251008 FAC2265 9182251008 FAC2269 9182331010 FAC2269 9182331010 FAC0123 9182391512 FAC0123 9182391512 FAC2278 9182471513 FAC2278 9182471513 FAC2285 9182531525
14 FAC2266 9182251010 FAC2266 9182251010 FAC2270 9182331012 FAC2270 9182331012 FAC2275 9182391513 FAC2275 9182391513 FAC2279 9182471514 FAC2279 9182471514 FAC3104 9182531530
14 FAC2291 9182252006 FAC2291 9182252006 FAC2271 9182331013 FAC2271 9182331013 FAC2276 9182391514 FAC2276 9182391514 FAC0128 9182471516 FAC0128 9182471516 FAC3105 9182531531
14 FAC2292 9182252008 FAC2292 9182252008 FAC2293 9182332008 FAC2293 9182332008 FAC0124 9182391516 FAC0124 9182391516 FAC2280 9182471518 FAC2280 9182471518 FAC2307 9182532522
14 FAC3187 9182252010 FAC3187 9182252010 FAC2294 9182332010 FAC2294 9182332010 FAC2295 9182392510 FAC2295 9182392510 FAC2281 9182471519 FAC2281 9182471519 FAC2308 9182532525
14

-

-

-

-

 FAC0121 9182332012 FAC0121 9182332012 FAC2296 9182392512 FAC2296 9182392512 FAC2282 9182471520 FAC2282 9182471520 FAC2309 9182532530
14

-

-

-

-

 FAC0122 9182332013 FAC0122 9182332013 FAC2297 9182392513 FAC2297 9182392513 FAC2283 9182471522 FAC2283 9182471522 FAC2323 9182533522
14

-

-

-

-

-

-

-

-

 FAC2298 9182392514 FAC2298 9182392514 FAC3137 9182471525 FAC3137 9182471525 FAC3085 9182533525
14

-

-

-

-

-

-

-

-

 FAC2299 9182392516 FAC2299 9182392516 FAC2300 9182472512 FAC2300 9182472512 FAC3086 9182533530
15 FAC3356 20002080160 FAC3356 20002080160 FAC3356 20002080160 FAC3356 20002080160 FAC3356 20002080160 FAC3356 20002080160 FAC3349 20002100180 FAC3349 20002100180 FAC3349 20002100180
16 FAC2326 35022000039 FAC2326 35022000039 FAC2325 35022000025 FAC2325 35022000025 FAC2326 35022000039 FAC2326 35022000039 FAC2327 35022000047 FAC2327 35022000047 FAC2327 35022000047
17 FAC2018 9183110019 FAC2018 9183110019 FAC2018 9183110019 FAC2018 9183110019 FAC2020 9183315019 FAC2020 9183315019 FAC3202 9183515020 FAC3202 9183515020 FAC2028 9183515015
17 FAC2019 9183120019 FAC2019 9183120019 FAC2019 9183120019 FAC2019 9183120019 FAC2022 9183325019 FAC2022 9183325019 FAC2026 9183525020 FAC2026 9183525020 FAC2029 9183525015
17

-

-

-

-

-

-

-

-

-

-

-

-

 FAC2027 9183535020 FAC2027 9183535020 FAC2030 9183535015
18 FAC0187 9184251006 FAC0187 9184251006 FAC2332 9184331008 FAC2332 9184331008 FAC2335 9184391510 FAC2335 9184391510 FAC2339 9184471512 FAC2339 9184471512 FAC2345 9184531522
18 FAC2328 9184251008 FAC2328 9184251008 FAC2333 9184331010 FAC2333 9184331010 FAC2336 9184391512 FAC2336 9184391512 FAC2340 9184471513 FAC2340 9184471513 FAC3132 9184531525
18 FAC2329 9184251010 FAC2329 9184251010 FAC0188 9184331012 FAC0188 9184331012 FAC2337 9184391513 FAC2337 9184391513 FAC2341 9184471514 FAC2341 9184471514 FAC3127 9184531526
18

-

-

-

-

 FAC2334 9184331013 FAC2334 9184331013 FAC2338 9184391514 FAC2338 9184391514 FAC2342 9184471516 FAC2342 9184471516 FAC3044 9184531527
18

-

-

-

-

-

-

-

-

 FAC0189 9184391516 FAC0189 9184391516 FAC2343 9184471518 FAC2343 9184471518 FAC3101 9184531528
19 FAC2347 14031402506 FAC2347 14031402506 FAC2348 14031552506 FAC2349 14031752506 FAC2350 14031903006 FAC2351 14032053006 FAC2352 14032204006 FAC2353 14032504006 FAC2354 14032954006
20 FAC2355 9130131250 FAC2355 9130131250 FAC2356 9130131330 FAC2356 9130131330 FAC2357 9130131390 FAC2357 9130131390 FAC2358 9130131470 FAC2358 9130131470 FAC2358 9130131470
21 FAC3279 9160125050 FAC3250 9160125055 FAC3234 9160133050 FAC3236 9160133055 FAC3211 9160139050 FAC3200 9160139055 FAC3197 9160147050 FAC3174 9160147055 FAC3169 9160153050
22 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000 FAC0144 9130130000
23 FAC3205 24106201300 FAC3205 24106201300 FAC3205 24106201300 FAC3178 24108241300 FAC3178 24108241300 FAC3178 24108241300 FAC3166 24110241400 FAC3166 24110241400

-

-
24 FAC2375 24106200000 FAC2375 24106200000 FAC2375 24106200000 FAC2376 24108240000 FAC2376 24108240000 FAC2376 24108240000 FAC2388 24110240000 FAC2388 24110240000

-

-
26

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200

-

 24000102200
27 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300 FAC0462 24106201300
31 FAC3344 9276900030 FAC3344 9276900030 FAC3344 9276900030 FAC3344 9276900030 FAC3345 9276900035 FAC3345 9276900035

-

 9276900037

-

 9276900037 FAC3342 9276900040
38

-

-

-

-

-

-

-

-

 FAC3040 9124165030 FAC3041 9124180030 FAC3023 9124200030 FAC3024 9124290030 FAC3015 9124330030
40 FAC3079 9151025040 FAC3079 9151025040 FAC3072 9151033040 FAC3072 9151033040 FAC3067 9151039040 FAC3067 9151039040 FAC3056 9151047040 FAC3056 9151047040 FAC3036 9151053040
40b FAC0358 9153025040 FAC0358 9153025040 FAC3055 9153033040 FAC3055 9153033040 FAC3046 9153039040 FAC3046 9153039040 FAC3027 9153047040 FAC3027 9153047040 FAC3011 9153053040
41 FAC3265 9160225050 FAC3265 9160225050 FAC3253 9160233050 FAC3253 9160233050 FAC3254 9160239050 FAC3254 9160239050 FAC3231 9160247050 FAC3231 9160247050 FAC3193 9160347050

If you have additional inquiries or need help with anything sailing related, don't hesitate to contact our experts! We'll be glad to help.

Frequently asked questions

How many Facnor LX furler models are there?

The Facnor LX headsail furling range comes in nine sizes: LX060, LX070, LX100, LX130, LX165, LX180, LX200, LX290 and LX330.

How do I know which LX model I have?

The model number is normally marked on the furler drum or extrusion, and it corresponds to your forestay diameter and boat size. Match that exact number to the model column in the table to get the correct part numbers.

What is the difference between the part number and the manufacturer code?

The part number (starting with FAC) is the MAURIPRO catalog reference you click to buy the item, while the manufacturer code is Facnor's own factory reference for the same component. Both are listed so you can confirm you have the exact part.

Why is there a dash in the table for my model?

A dash means that particular item is not fitted to, or not available for, that specific LX size — so no equivalent part number applies to your furler.

Can the LX table help if I have an older Facnor furler?

This guide is specific to the LX series. If you have an LS, RX or FD Facnor furler, use the matching model guide linked below, or contact our rigging team with your model and item number.
